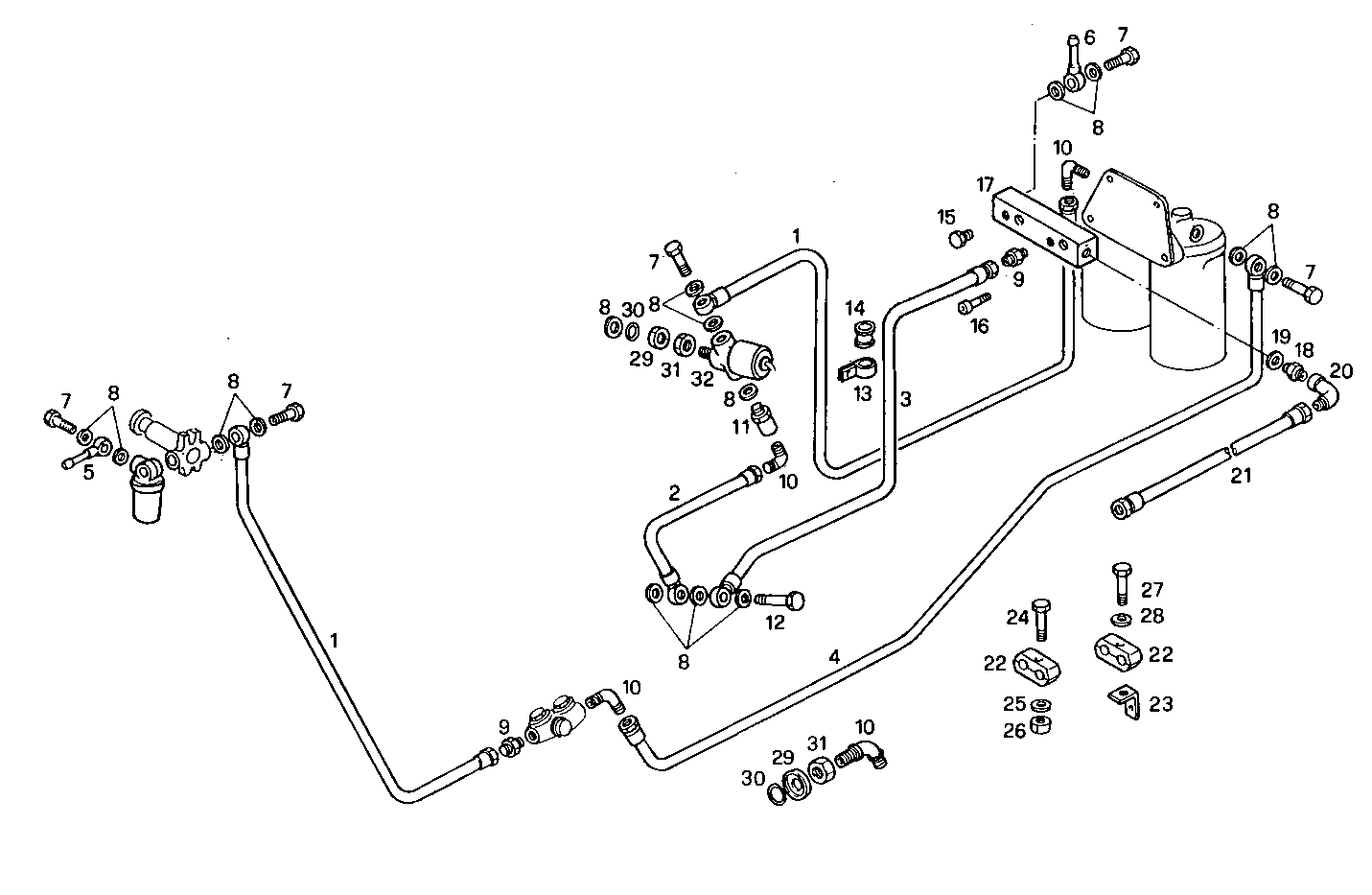

FUEL LINES

8281SRi17.00 — 8281SRi17

Parts List

#	Part No	Name / Description	Qty
1	8019052	FLEXIBLE FUEL PIPE FLEXIBLE FUEL PIPE	2
2	8019054	FLEXIBLE FUEL PIPE FLEXIBLE FUEL PIPE	1
3	8022762	FUEL LINE FUEL LINE	1
4	8019777	FUEL LINE FUEL LINE	1
5	98404882	PIPE SOCKET PIPE SOCKET	1
6	98413896	PIPE SOCKET PIPE SOCKET	1
7	4864083	SCREW CONNECTOR SCREW CONNECTOR	5
8	4858608	SEAL GASKET SEAL GASKET	15
9	16500214	THREADED UNION THREADED UNION	2
10	8006222	PIPE SOCKET PIPE SOCKET	3
11	8102465	VALVE VALVE	1
12	61608319	SCREW CONNECTOR SCREW CONNECTOR	1
13	8019420	CLIP CLIP	1
14	4757122	RUBBER PAD RUBBER PAD	1
15	16992311	LOCK PLUG LOCK PLUG	1
16	16691224	CYLIND-HEAD SCREW CYLIND-HEAD SCREW	2
17	8019035	DISTRIBUTOR DISTRIBUTOR	1
18	16500011	PIPE SOCKET PIPE SOCKET	2
19	4858606	GASKET GASKET	2
20	16503811	ELBOW COUPLING ELBOW COUPLING	2
21	8022761	FUEL LINE FUEL LINE	1
22	8010505	CLAMP CLAMP	14
23	8110499	RETAINER RETAINER	8
24	16605824	HEXAGON BOLT HEXAGON BOLT	3
25	17094914	WASHER WASHER	3
26	17037931	HEXAGON NUT HEXAGON NUT	3
27	16607921	SCREW SCREW	1
28	17088974	SPRING WASHER SPRING WASHER	1
29	8006339	CAP CAP	4
30	17281581	O-RING O-RING	4
31	16508711	NUT NUT	2
32	8017500	ELECTROVALVE ELECTROVALVE	1
