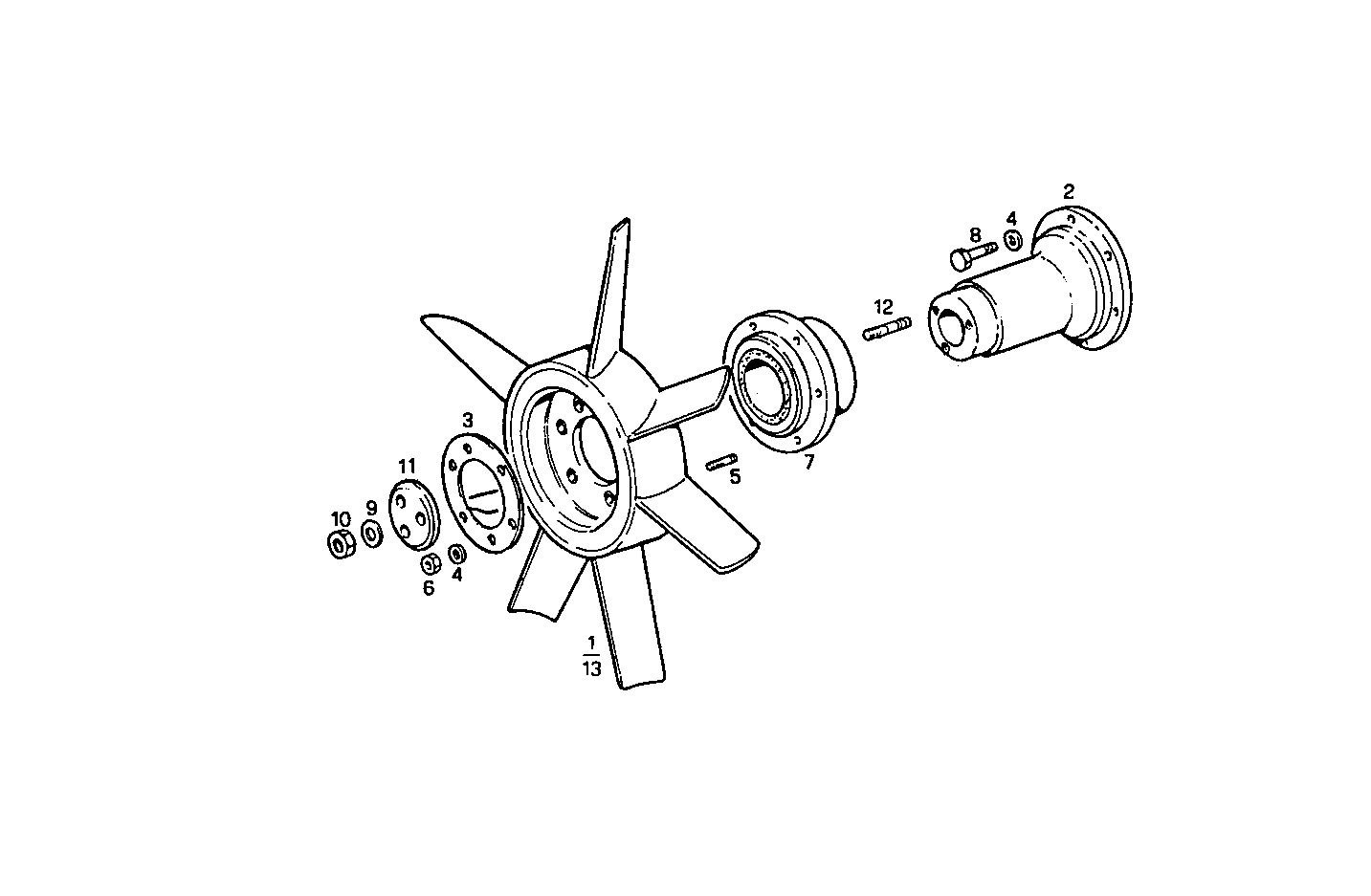

FAN
8281SRi26.01 — 8281SRi26
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8108721 | FAN FAN | 1 | |
| 2 | 8108873 | HUB HUB | 1 | |
| 3 | 4933279 | RING RING | 1 | |
| 4 | 17089471 | SPRING WASHER SPRING WASHER | 12 | |
| 5 | 16729224 | STUD STUD | 6 | |
| 6 | 17037931 | HEXAGON NUT HEXAGON NUT | 6 | |
| 7 | 8108875 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 8 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 9 | 17090174 | SPRING WASHER SPRING WASHER | 3 | |
| 10 | 17038221 | HEXAGON NUT HEXAGON NUT | 3 | |
| 11 | 8108876 | SPACING BAR SPACING BAR | 1 | |
| 12 | 13546421 | STUD STUD | 3 | |
| 13 | 8021736 | FAN FAN | 1 |
