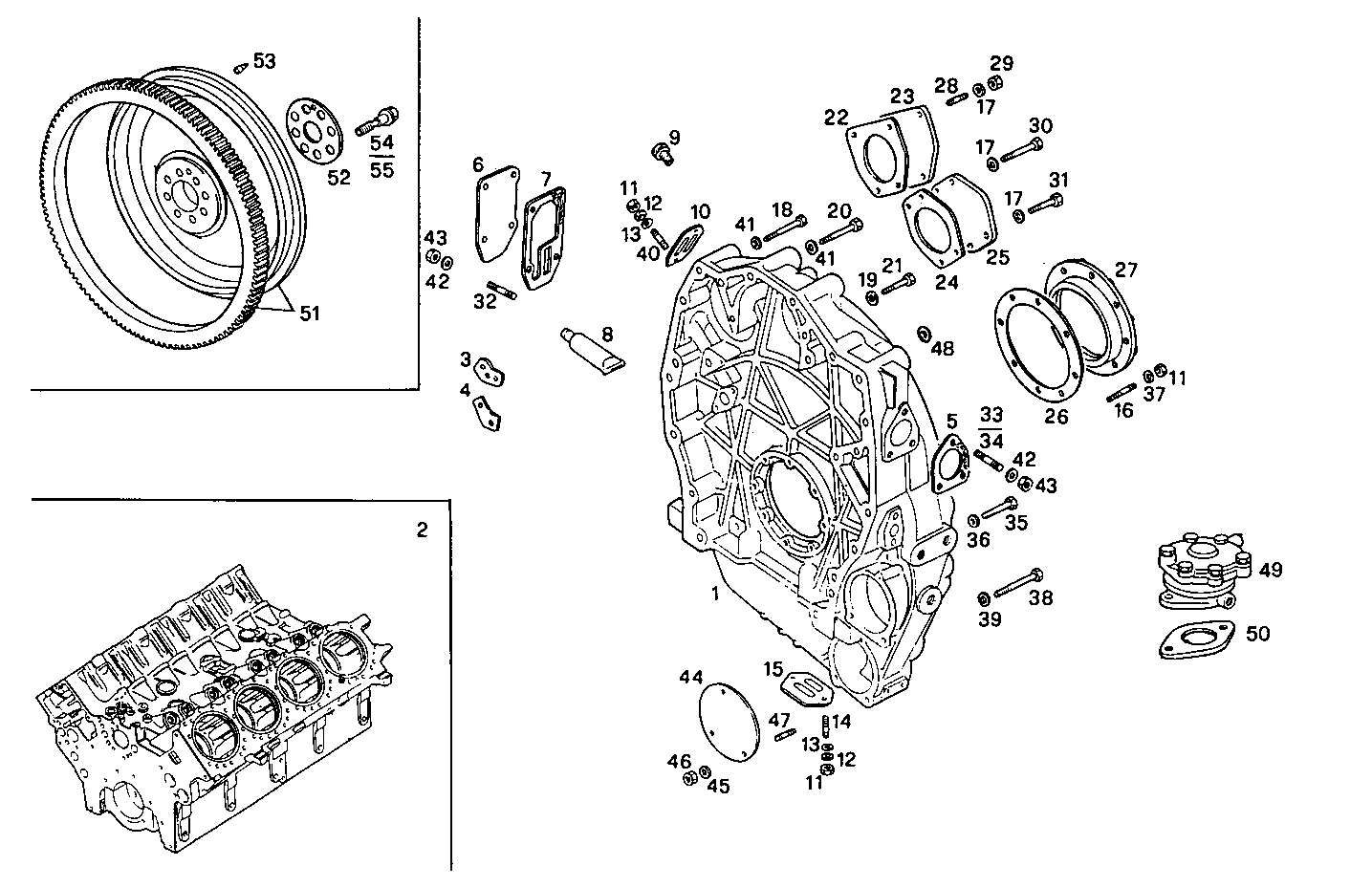

FLYWHEEL HOUSING SAE 1
8281SRi27.00 — 8281SRi27
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4936388 | FLYWHEEL HOUSING FLYWHEEL HOUSING | 1 | |
| 2 | 8021360 | CRANKCASE CRANKCASE | 1 | |
| 3 | 4831139 | PLATE PLATE | 1 | |
| 4 | 4831138 | PLATE PLATE | 1 | |
| 5 | 4863490 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 6 | 4801982 | COVER COVER | 1 | |
| 7 | 4863495 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 8 | 1905685 | ADHESIVE/STICKER ADHESIVE/STICKER | 1 | |
| 9 | 4931603 | PIPE SOCKET PIPE SOCKET | 1 | |
| 10 | 4695921 | COVER COVER | 1 | |
| 11 | 17037931 | HEXAGON NUT HEXAGON NUT | 12 | |
| 12 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 13 | 17094914 | WASHER WASHER | 4 | |
| 14 | 13516521 | STUD STUD | 2 | |
| 15 | 4706083 | COVER COVER | 1 | |
| 16 | 16746524 | STUD STUD | 8 | |
| 17 | 17090174 | SPRING WASHER SPRING WASHER | 8 | |
| 18 | 15972521 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 19 | 17095314 | WASHER WASHER | 4 | |
| 20 | 15972721 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 21 | 15541630 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 22 | 4863515 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 23 | 4659673 | COVER COVER | 1 | |
| 24 | 4863534 | GASKET GASKET | 1 | |
| 25 | 4729849 | COVER COVER | 1 | |
| 26 | 4863494 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 27 | 4819209 | SUPPORT SUPPORT | 1 | |
| 28 | 13546621 | STUD STUD | 2 | |
| 29 | 17038221 | HEXAGON NUT HEXAGON NUT | 2 | |
| 30 | 15970021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 31 | 15972321 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 32 | 16729324 | STUD STUD | 4 | |
| 33 | 16730324 | STUD STUD | 1 | |
| 34 | 16729524 | STUD STUD | 2 | |
| 35 | 15543021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 36 | 12646921 | WASHER WASHER | 1 | |
| 37 | 17094911 | WASHER WASHER | 8 | |
| 38 | 15978030 | HEXAGON BOLT HEXAGON BOLT | 10 | |
| 39 | 4604279 | SPRING WASHER SPRING WASHER | 10 | |
| 40 | 13543021 | STUD STUD | 2 | |
| 41 | 17090574 | WASHER WASHER | 5 | |
| 42 | 17089474 | SPRING WASHER SPRING WASHER | 11 | |
| 43 | 17037931 | HEXAGON NUT HEXAGON NUT | 11 | |
| 44 | 4721732 | COVER COVER | 1 | |
| 45 | 17091974 | SPRING WASHER SPRING WASHER | 3 | |
| 46 | 17038821 | HEXAGON NUT HEXAGON NUT | 3 | |
| 47 | 11797421 | STUD STUD | 6 | |
| 48 | 17277681 | O-RING O-RING | 1 | |
| 49 | 4856636 | BREATHER BREATHER | 1 | |
| 50 | 4863490 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 51 | 98452375 | FLYWHEEL FLYWHEEL | 1 | |
| 52 | 4688312 | STOP WASHER STOP WASHER | 1 | |
| 53 | 14170470 | DOWEL PIN DOWEL PIN | 1 | |
| 54 | 4818509 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 55 | 4802719 | HEXAGON BOLT HEXAGON BOLT | 8 |
