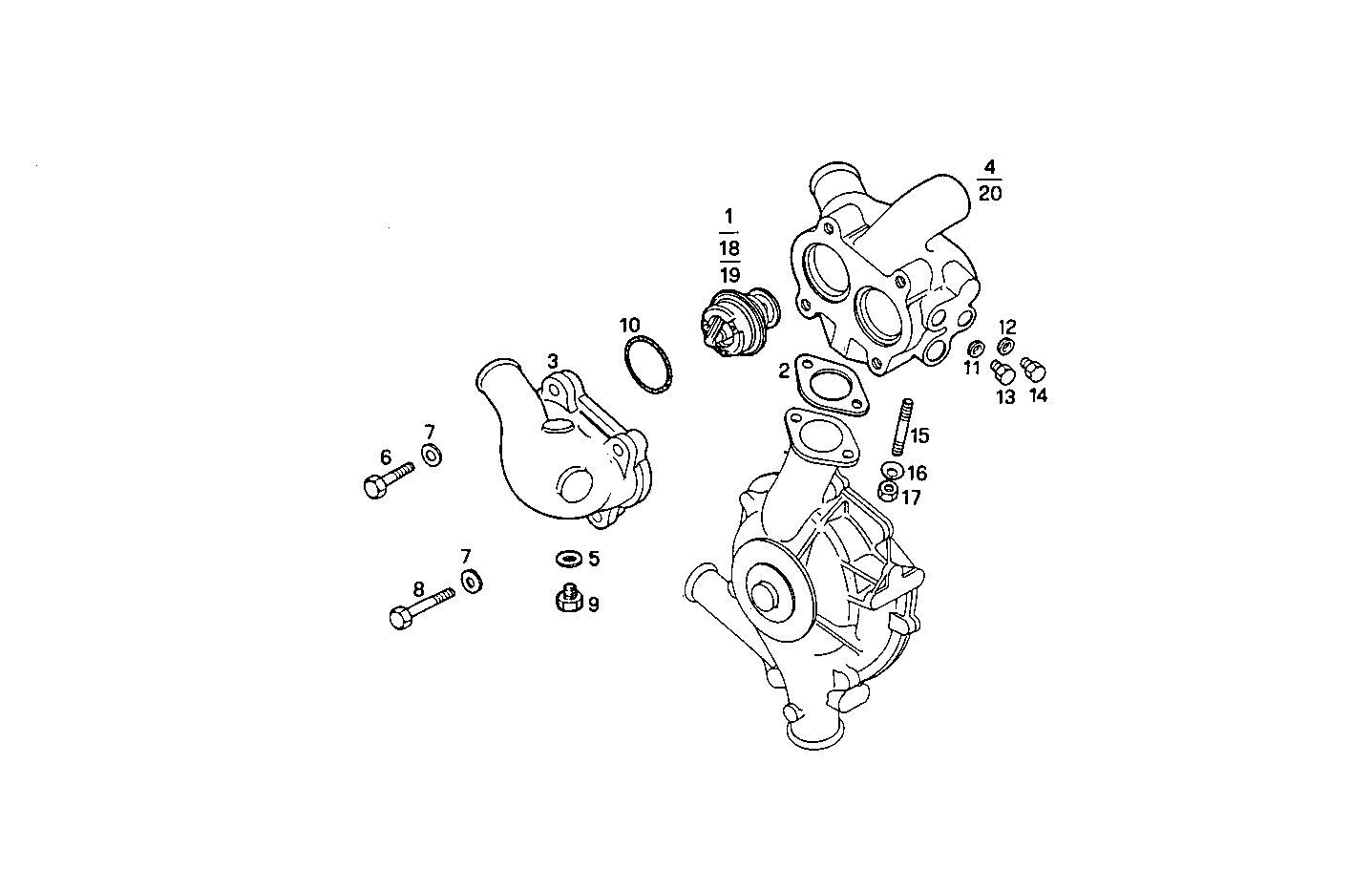

THERMOSTAT
8281SRi27.00A550 — 8281SRi27
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99438848 | THERMOSTAT THERMOSTAT | 2 | |
| 2 | 4863503 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 98420627 | COVER COVER | 1 | |
| 4 | 99445826 | THERMOSTAT BODY THERMOSTAT BODY | 1 | |
| 5 | 4858610 | WASHER WASHER | 1 | |
| 6 | 15971621 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 7 | 17097121 | WASHER WASHER | 4 | |
| 8 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 16992511 | THREADED PLUG THREADED PLUG | 1 | |
| 10 | 98465113 | O-RING O-RING | 2 | |
| 11 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 12 | 4858609 | WASHER WASHER | 1 | |
| 13 | 16992311 | LOCK PLUG LOCK PLUG | 1 | |
| 14 | 16992411 | THREADED PLUG THREADED PLUG | 1 | |
| 15 | 16729321 | STUD STUD | 2 | |
| 16 | 17089574 | WASHER WASHER | 2 | |
| 17 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 18 | 98467517 | THERMOSTAT THERMOSTAT | 1 | |
| 19 | 98492873 | THERMOSTAT THERMOSTAT | 1 | |
| 20 | 99441803 | THERMOSTAT BODY THERMOSTAT BODY | 1 |
