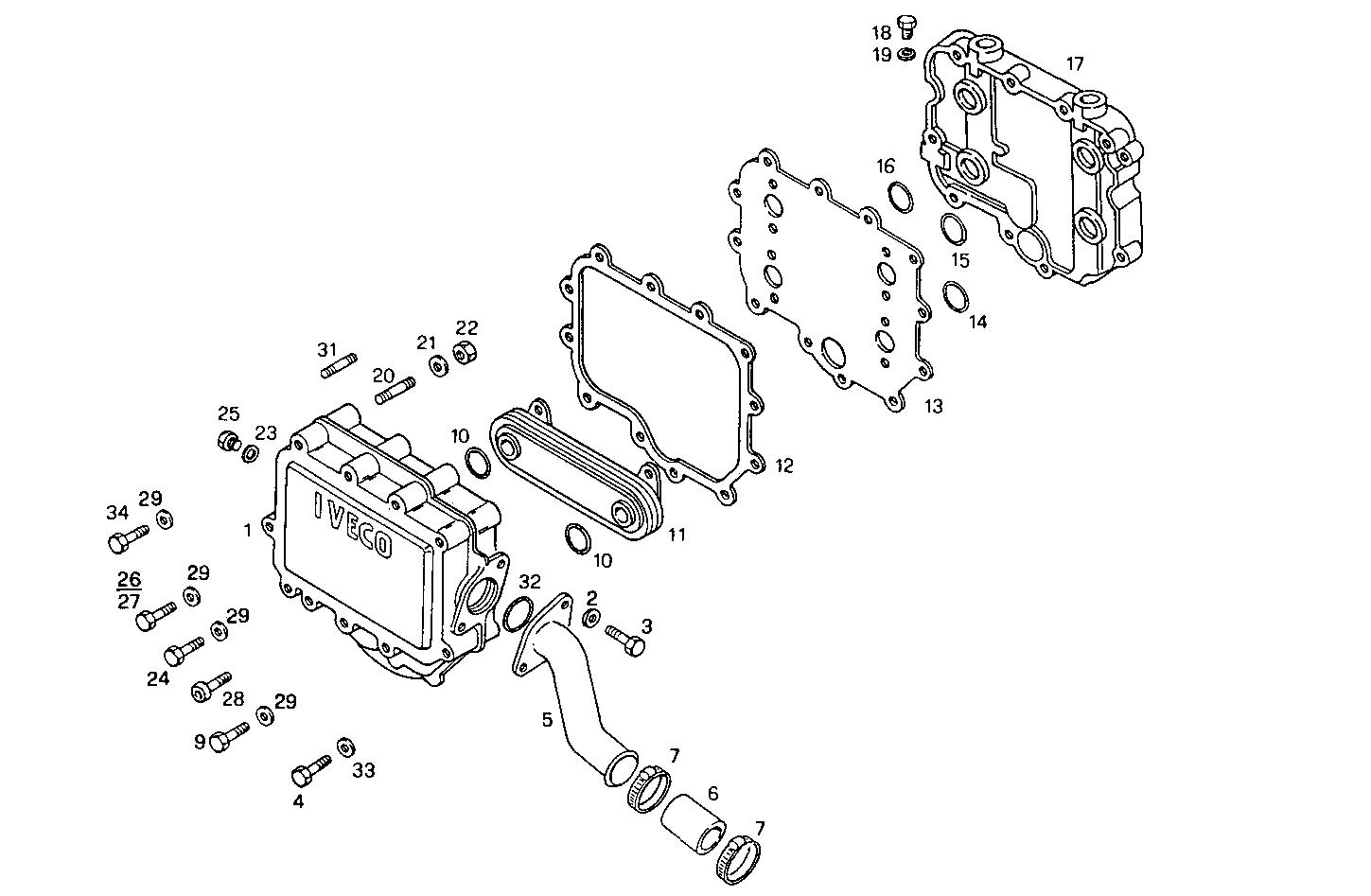

OIL - WATER HEAT EXCHANGER
8281SRi27.00A580 — 8281SRi27
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4799546 | HEAT EXANGER BODY HEAT EXANGER BODY | 1 | |
| 2 | 17089774 | SPRING WASHER SPRING WASHER | 2 | |
| 3 | 16606724 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 11343821 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 5 | 4799544 | WATER PIPE WATER PIPE | 1 | |
| 6 | 98421380 | WATER HOSE WATER HOSE | 1 | |
| 7 | 17764992 | CLIP CLIP | 2 | |
| 9 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 14459081 | O-RING O-RING | 4 | |
| 11 | 98415302 | OIL COOLER OIL COOLER | 2 | |
| 12 | 98419012 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 13 | 4799548 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 14 | 17283980 | O-RING O-RING | 2 | |
| 15 | 17282781 | O-RING O-RING | 2 | |
| 16 | 17282981 | O-RING O-RING | 4 | |
| 17 | 4799550 | SUPPORT SUPPORT | 1 | |
| 18 | 16993611 | THREADED PLUG THREADED PLUG | 3 | |
| 19 | 10265060 | SEAL GASKET SEAL GASKET | 3 | |
| 20 | 16729221 | STUD STUD | 2 | |
| 21 | 17089574 | WASHER WASHER | 3 | |
| 22 | 17037931 | HEXAGON NUT HEXAGON NUT | 3 | |
| 23 | 4858606 | GASKET GASKET | 1 | |
| 24 | 16606124 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 25 | 4753563 | PLUG PLUG | 1 | |
| 26 | 16606824 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 27 | 16045421 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 28 | 16690424 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 8 | |
| 29 | 17094914 | WASHER WASHER | 15 | |
| 31 | 16729521 | STUD STUD | 1 | |
| 32 | 17283681 | O-RING O-RING | 1 | |
| 33 | 17095124 | WASHER WASHER | 1 | |
| 34 | 16606924 | SCREW SCREW | 1 |
