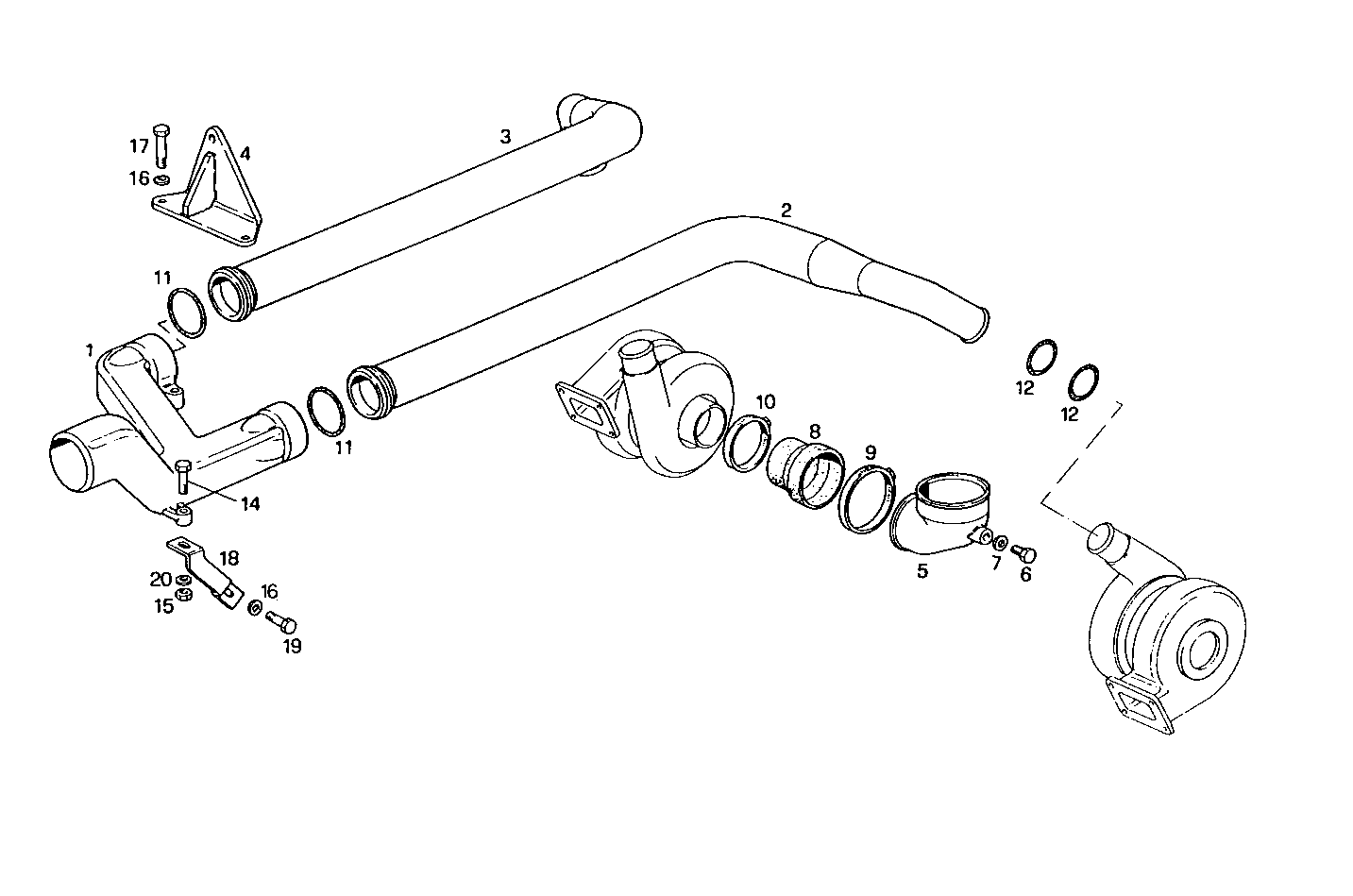

SUPERCHARGING LINES
8281SRi40.00 — 8281SRi40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8014668 | AIR HOOD AIR HOOD | 1 | |
| 2 | 8030519 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 3 | 8030520 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 4 | 8019515 | RETAINER RETAINER | 1 | |
| 5 | 8109999 | INTAKE ELBOW INTAKE ELBOW | 2 | |
| 6 | 11903111 | LOCK PLUG LOCK PLUG | 2 | |
| 7 | 4858606 | GASKET GASKET | 2 | |
| 8 | 8111448 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 2 | |
| 9 | 17765191 | CLIP CLIP | 2 | |
| 10 | 17765291 | CLIP CLIP | 2 | |
| 11 | 17290481 | O-RING O-RING | 2 | |
| 12 | 17290281 | O-RING O-RING | 4 | |
| 14 | 16606024 | SCREW SCREW | 3 | |
| 15 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 16 | 17094914 | WASHER WASHER | 3 | |
| 17 | 16606024 | SCREW SCREW | 3 | |
| 18 | 8014670 | RETAINER RETAINER | 1 | |
| 19 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 20 | 17089474 | SPRING WASHER SPRING WASHER | 1 |
