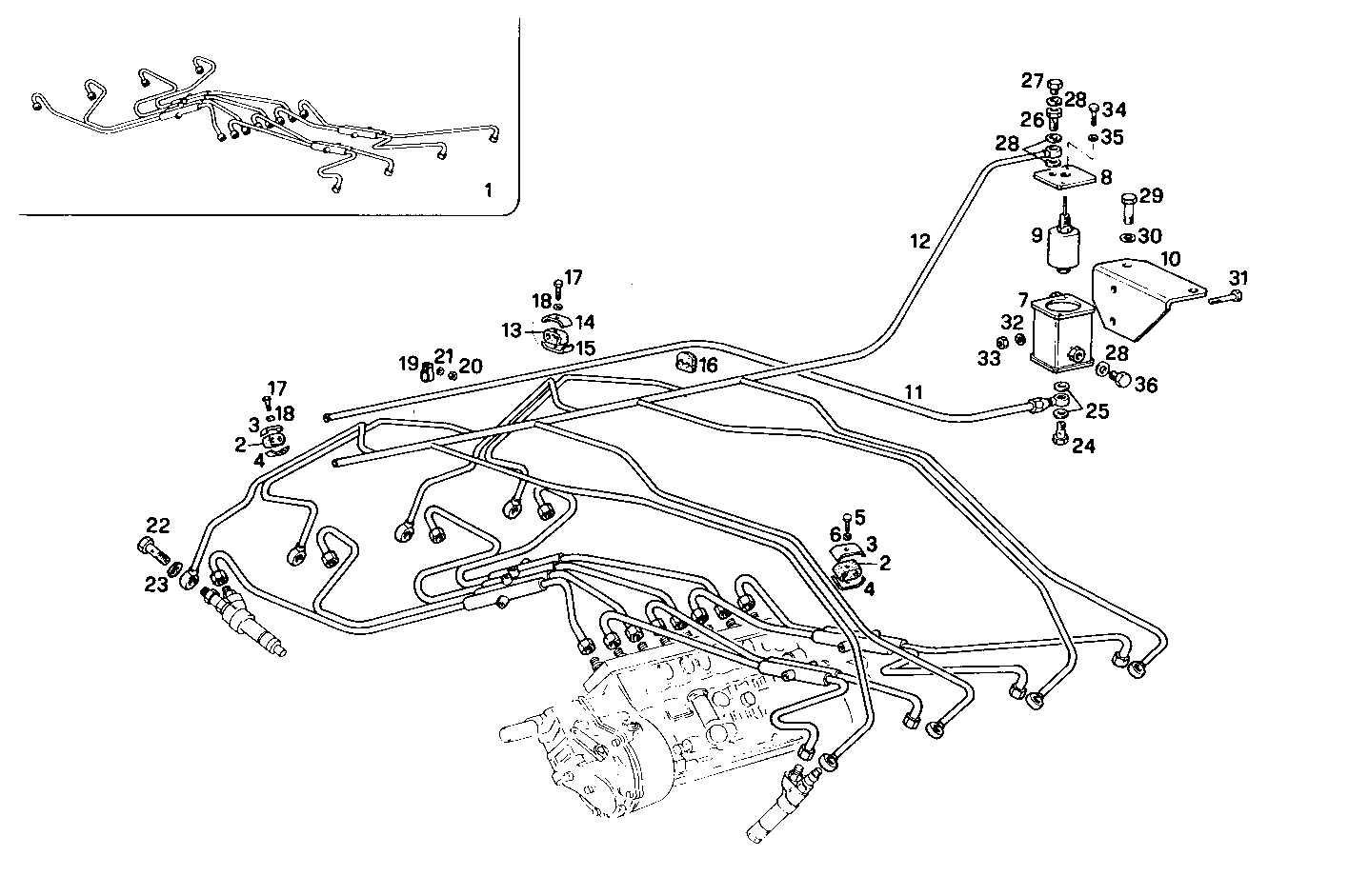

DOUBLE WALL INJECTION PIPES
8281SRM44.10 — 8281SRM44
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8109970 | INJECTION LINE SET INJECTION LINE SET | 1 | |
| 2 | 4659217 | DOWEL DOWEL | 5 | |
| 3 | 4659218 | CLIP CLIP | 5 | |
| 4 | 4659219 | PLATE PLATE | 5 | |
| 5 | 10978021 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 6 | 12601179 | WASHER WASHER | 4 | |
| 7 | 8102280 | TANK TANK | 1 | |
| 8 | 8102281 | COVER COVER | 1 | |
| 9 | 8102285 | INDICATOR INDICATOR | 1 | |
| 10 | 8109975 | SUPPORT SUPPORT | 1 | |
| 11 | 8014556 | FUEL LINE FUEL LINE | 1 | |
| 12 | 8014555 | FUEL LINE FUEL LINE | 1 | |
| 13 | 4761451 | RUBBER PAD RUBBER PAD | 1 | |
| 14 | 4644289 | CLIP CLIP | 1 | |
| 15 | 4644288 | CLIP CLIP | 1 | |
| 16 | 8110955 | RUBBER PAD RUBBER PAD | 8 | |
| 17 | 10902621 | SCREW SCREW | 2 | |
| 18 | 11194779 | WASHER WASHER | 2 | |
| 19 | 10450090 | PIPE CLIP PIPE CLIP | 2 | |
| 20 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 21 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 22 | 4864078 | BANJO BOLT BANJO BOLT | 8 | |
| 23 | 98474303 | WASHER WASHER | 16 | |
| 24 | 4864082 | BANJO BOLT BANJO BOLT | 1 | |
| 25 | 98474306 | WASHER WASHER | 2 | |
| 26 | 11901711 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 27 | 11902117 | PLUG PLUG | 1 | |
| 28 | 98474305 | WASHER WASHER | 4 | |
| 29 | 15540221 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 30 | 11190779 | SPRING WASHER SPRING WASHER | 2 | |
| 31 | 15970621 | SCREW SCREW | 2 | |
| 32 | 11190579 | SPRING WASHER SPRING WASHER | 2 | |
| 33 | 17038221 | HEXAGON NUT HEXAGON NUT | 2 | |
| 34 | 10979421 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 35 | 17088474 | WASHER WASHER | 2 | |
| 36 | 11903140 | PLUG PLUG | 1 |
