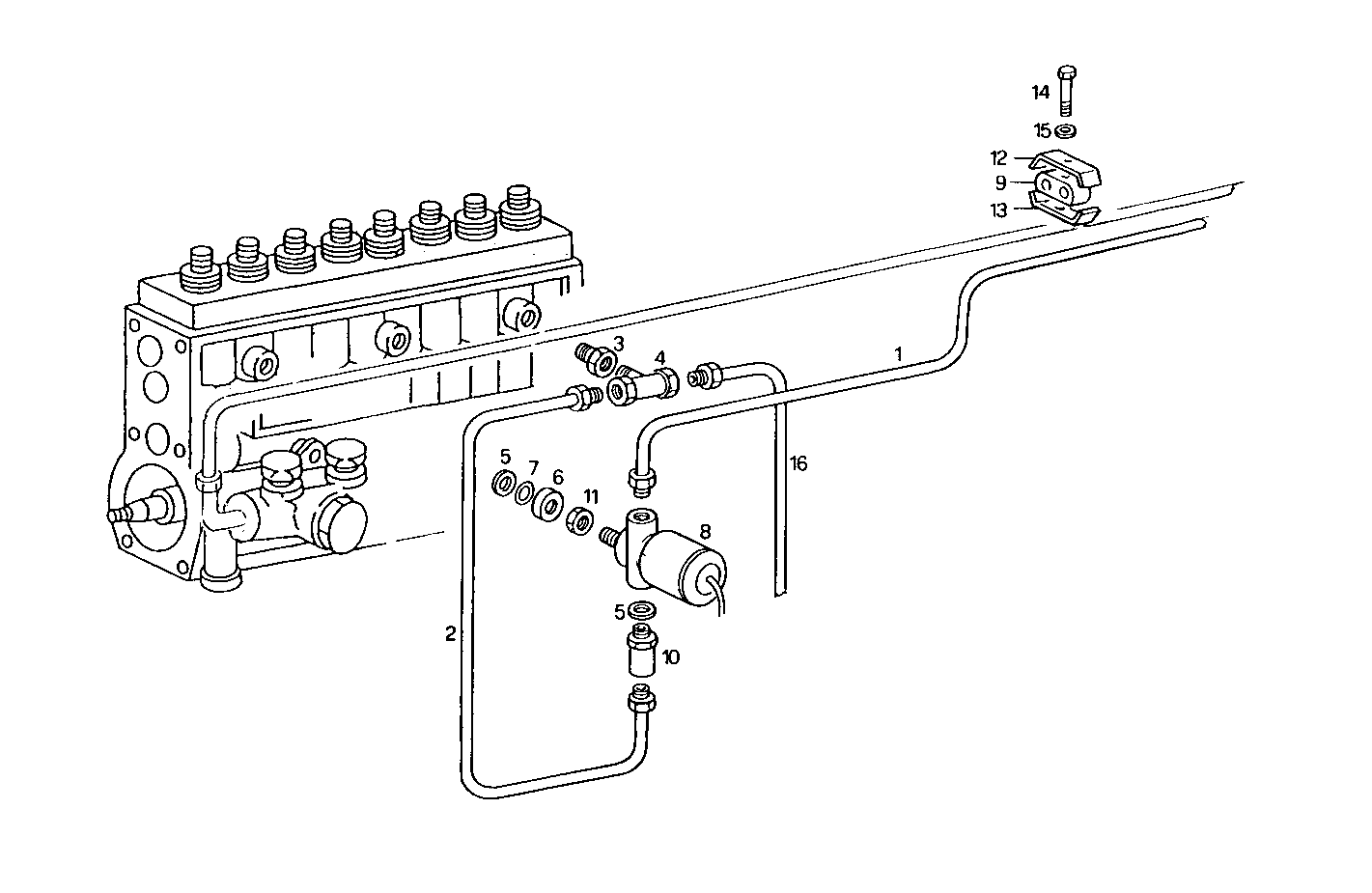

ELECTRONIC GOVERNOR WOODWARD
8281SRM44.10 — 8281SRM44
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8019813 | FUEL LINE FUEL LINE | 1 | |
| 2 | 8020459 | FUEL LINE FUEL LINE | 1 | |
| 3 | 16500214 | THREADED UNION THREADED UNION | 1 | |
| 4 | 16505911 | PIPE SOCKET PIPE SOCKET | 1 | |
| 5 | 4858608 | SEAL GASKET SEAL GASKET | 2 | |
| 6 | 8006339 | CAP CAP | 1 | |
| 7 | 17281581 | O-RING O-RING | 1 | |
| 8 | 8017500 | ELECTROVALVE ELECTROVALVE | 1 | |
| 9 | 4871771 | RUBBER PAD RUBBER PAD | 1 | |
| 10 | 8102465 | VALVE VALVE | 1 | |
| 11 | 16508711 | NUT NUT | 1 | |
| 12 | 4644288 | CLIP CLIP | 1 | |
| 13 | 4644289 | CLIP CLIP | 1 | |
| 14 | 16603924 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 15 | 17088474 | WASHER WASHER | 1 | |
| 16 | 8020114 | FUEL LINE FUEL LINE | 1 |
