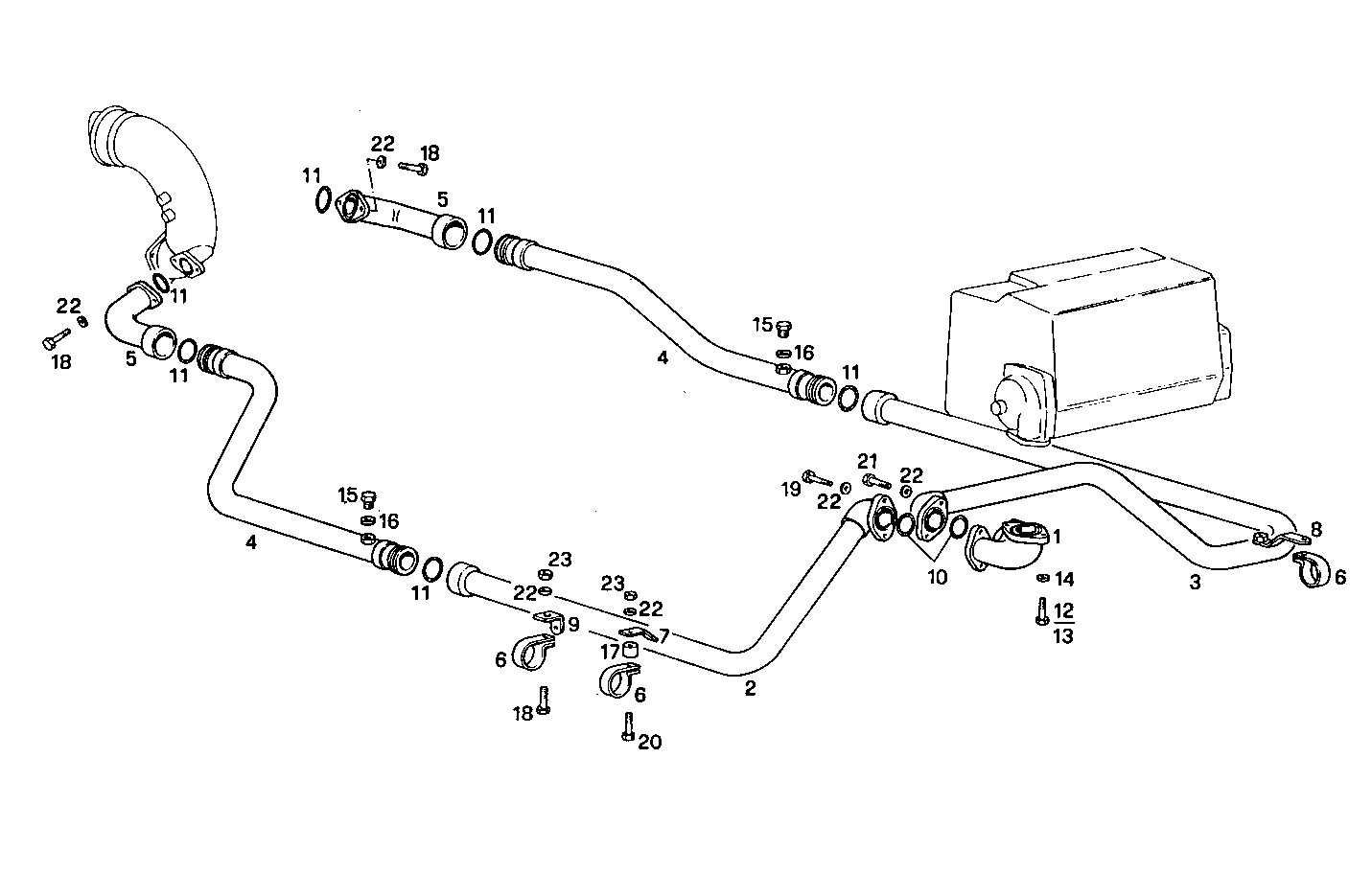

GAS-WATER MIXER WITH STERN OUTLET
8281SRM44.10 — 8281SRM44
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8113601 | WATER PIPE WATER PIPE | 1 | |
| 2 | 8113620 | WATER PIPE WATER PIPE | 1 | |
| 3 | 8113621 | WATER PIPE WATER PIPE | 1 | |
| 4 | 8113622 | WATER PIPE WATER PIPE | 2 | |
| 5 | 8113623 | WATER PIPE WATER PIPE | 2 | |
| 6 | 4936741 | CLIP CLIP | 6 | |
| 7 | 8109673 | RETAINER RETAINER | 4 | |
| 8 | 8112082 | RETAINER RETAINER | 1 | |
| 9 | 8102705 | RETAINER RETAINER | 1 | |
| 10 | 17289681 | O-RING O-RING | 2 | |
| 11 | 17289581 | O-RING O-RING | 6 | |
| 12 | 15540421 | SCREW SCREW | 1 | |
| 13 | 15541221 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 14 | 17091074 | WASHER WASHER | 2 | |
| 15 | 11903140 | PLUG PLUG | 2 | |
| 16 | 4858606 | GASKET GASKET | 2 | |
| 17 | 17816214 | SPACER SPACER | 4 | |
| 18 | 16605424 | SCREW SCREW | 6 | |
| 19 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 20 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 5 | |
| 21 | 16606224 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 22 | 17089474 | SPRING WASHER SPRING WASHER | 15 | |
| 23 | 17037931 | HEXAGON NUT HEXAGON NUT | 6 |
