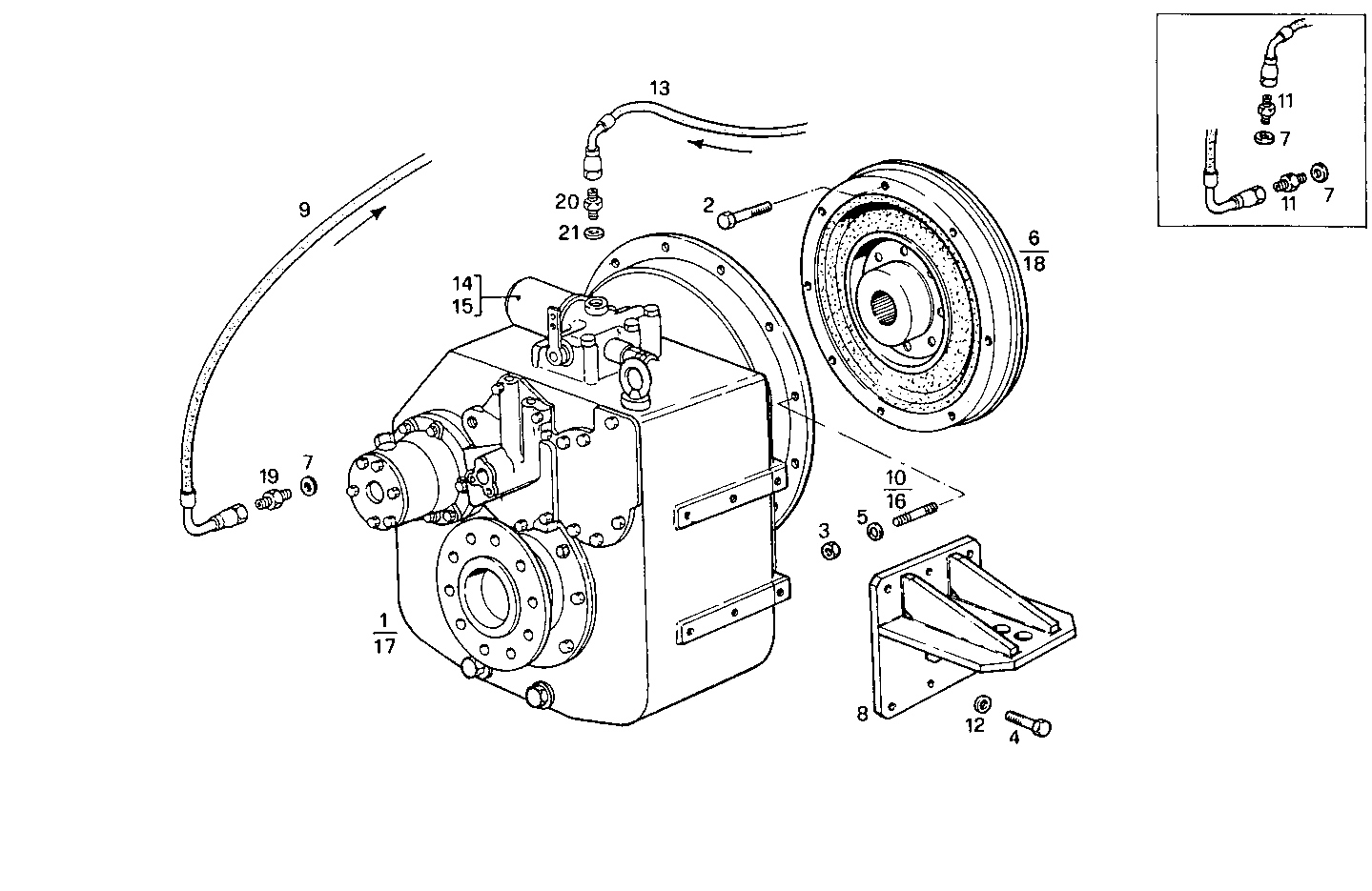

MARINE GEAR ZF-MPM IRM 350 PL
8281SRM44.10 — 8281SRM44
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8026526 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 14274421 | LOCKING SCREW LOCKING SCREW | 8 | |
| 3 | 17038221 | HEXAGON NUT HEXAGON NUT | 12 | |
| 4 | 4932875 | SCREW SCREW | 12 | |
| 5 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 6 | 8024603 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 7 | 11271460 | GASKET GASKET | 1 | |
| 8 | 8005952 | SUPPORT SUPPORT | 2 | |
| 9 | 8113774 | HOSE HOSE | 1 | |
| 10 | 13454021 | STUD STUD | 2 | |
| 11 | 8017553 | PIPE SOCKET PIPE SOCKET | 2 | |
| 12 | 11194279 | SPRING WASHER SPRING WASHER | 12 | |
| 13 | 8006875 | HOSE HOSE | 1 | |
| 14 | 8007794 | OIL FILTER CARTRIDGE OIL FILTER CARTRIDGE | 1 | |
| 15 | 8007795 | OIL FILTER CARTRIDGE OIL FILTER CARTRIDGE | 1 | |
| 16 | 13454321 | STUD STUD | 10 | |
| 17 | 8024615 | MARINE GEAR MARINE GEAR | 1 | |
| 18 | 8007581 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 19 | 8026675 | PIPE SOCKET PIPE SOCKET | 1 | |
| 20 | 8026677 | PIPE SOCKET PIPE SOCKET | 1 | |
| 21 | 10263460 | WASHER WASHER | 1 |
