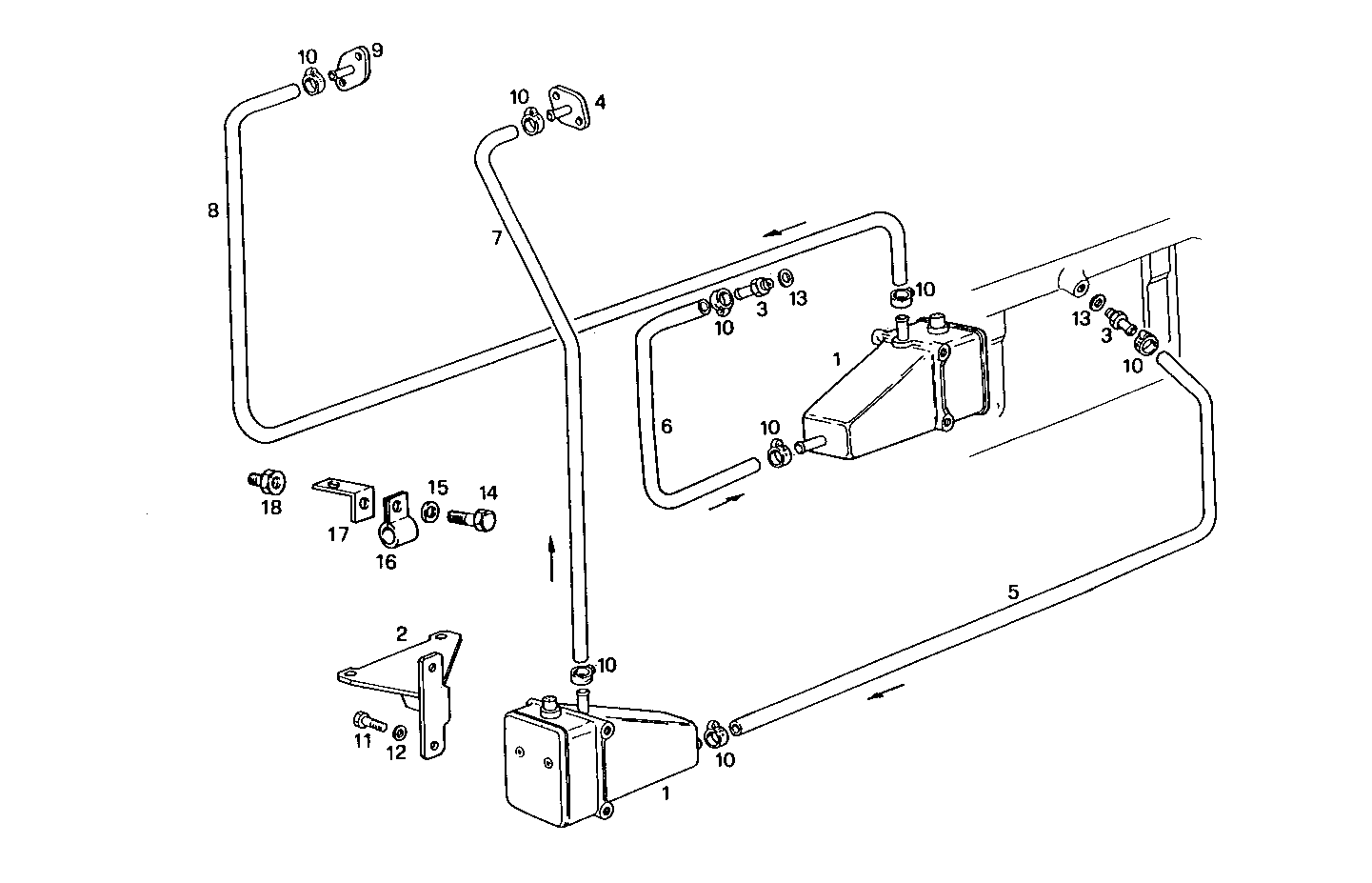

WATER PREHEATER DEVICE - 220V
8281SRM44.10 — 8281SRM44
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8008375 | HEATER HEATER | 2 | |
| 2 | 8007077 | SUPPORT SUPPORT | 2 | |
| 3 | 8112804 | PIPE SOCKET PIPE SOCKET | 2 | |
| 4 | 8006741 | FLANGE FLANGE | 1 | |
| 5 | 8007528 | HOSE HOSE | 1 | |
| 6 | 8005758 | WATER HOSE WATER HOSE | 1 | |
| 7 | 8112243 | WATER HOSE WATER HOSE | 1 | |
| 8 | 8114428 | HOSE HOSE | 1 | |
| 9 | 8006740 | FLANGE FLANGE | 1 | |
| 10 | 18088392 | CLIP CLIP | 12 | |
| 11 | 10902121 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 12 | 17088471 | SPRING WASHER SPRING WASHER | 4 | |
| 13 | 10257460 | SEAL GASKET SEAL GASKET | 2 | |
| 14 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 15 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 16 | 4936279 | CLIP CLIP | 3 | |
| 17 | 4929652 | RETAINER RETAINER | 1 | |
| 18 | 4927358 | PIPE SOCKET PIPE SOCKET | 1 |
