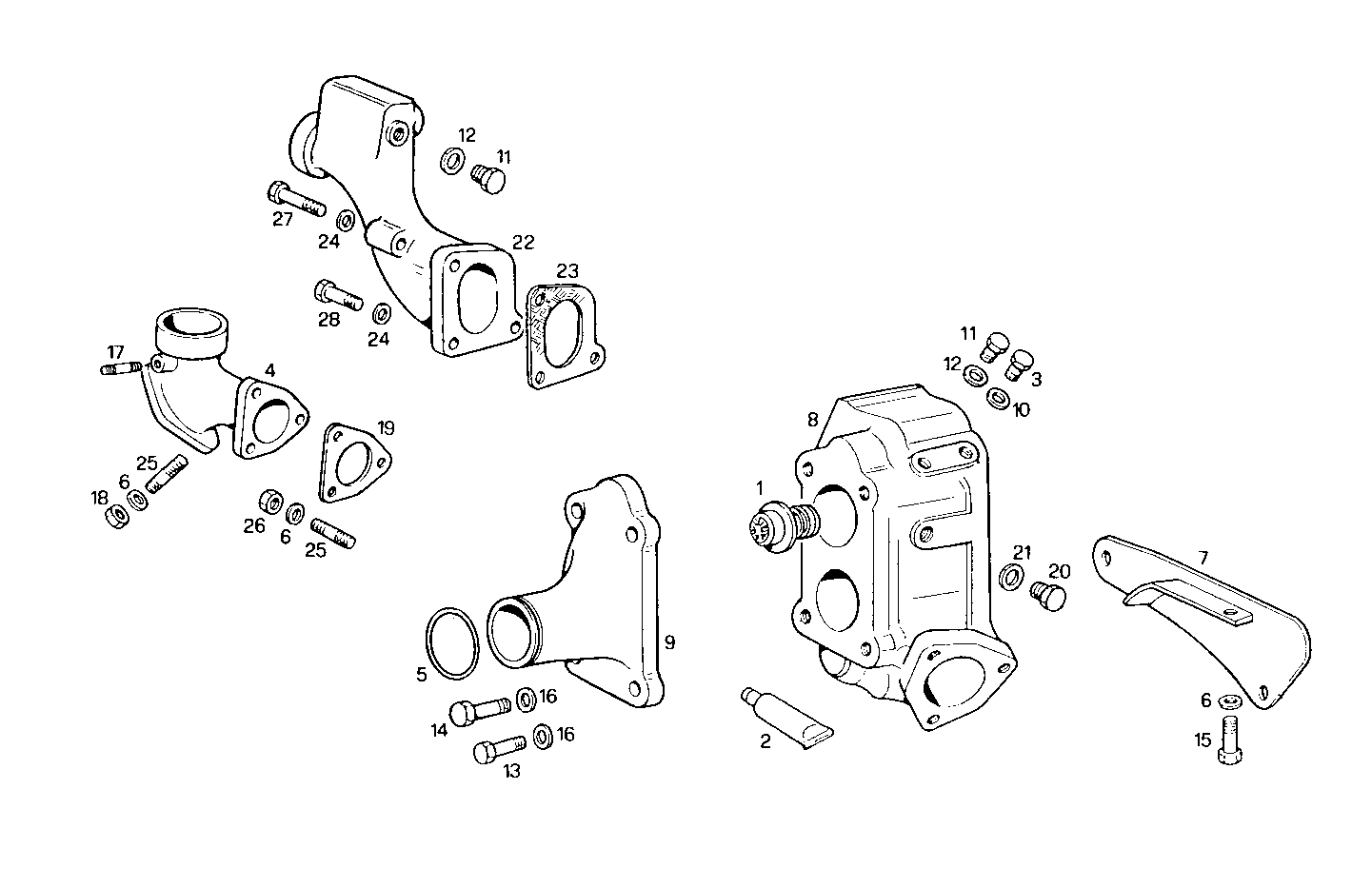

THERMOSTAT
8281SRM44.30 — 8281SRM44
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8110947 | THERMOSTAT THERMOSTAT | 2 | |
| 2 | 1905685 | ADHESIVE/STICKER ADHESIVE/STICKER | 1 | |
| 3 | 10300640 | LOCK PLUG LOCK PLUG | 1 | |
| 4 | 8112817 | VALVE HOUSING VALVE HOUSING | 1 | |
| 5 | 14464781 | O-RING O-RING | 1 | |
| 6 | 17089471 | SPRING WASHER SPRING WASHER | 6 | |
| 7 | 4800743 | RETAINER RETAINER | 1 | |
| 8 | 8111337 | SUPPORT SUPPORT | 1 | |
| 9 | 4677577 | COVER COVER | 1 | |
| 10 | 10280060 | WASHER WASHER | 1 | |
| 11 | 16992440 | THREADED PLUG THREADED PLUG | 4 | |
| 12 | 10257060 | SEAL GASKET SEAL GASKET | 4 | |
| 13 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 14 | 11307021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 15 | 16043421 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 16 | 17090474 | SPRING WASHER SPRING WASHER | 3 | |
| 17 | 13449321 | STUD STUD | 1 | |
| 18 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 19 | 4863488 | GASKET GASKET | 1 | |
| 20 | 4584394 | PLUG PLUG | 1 | |
| 21 | 11271460 | GASKET GASKET | 1 | |
| 22 | 8111225 | WATER CONVEYOR WATER CONVEYOR | 1 | |
| 23 | 4863517 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 24 | 17090174 | SPRING WASHER SPRING WASHER | 3 | |
| 25 | 13516821 | STUD STUD | 5 | |
| 26 | 16102311 | HEXAGON NUT HEXAGON NUT | 3 | |
| 27 | 15972221 | SCREW SCREW | 1 | |
| 28 | 11306921 | SCREW SCREW | 2 |
