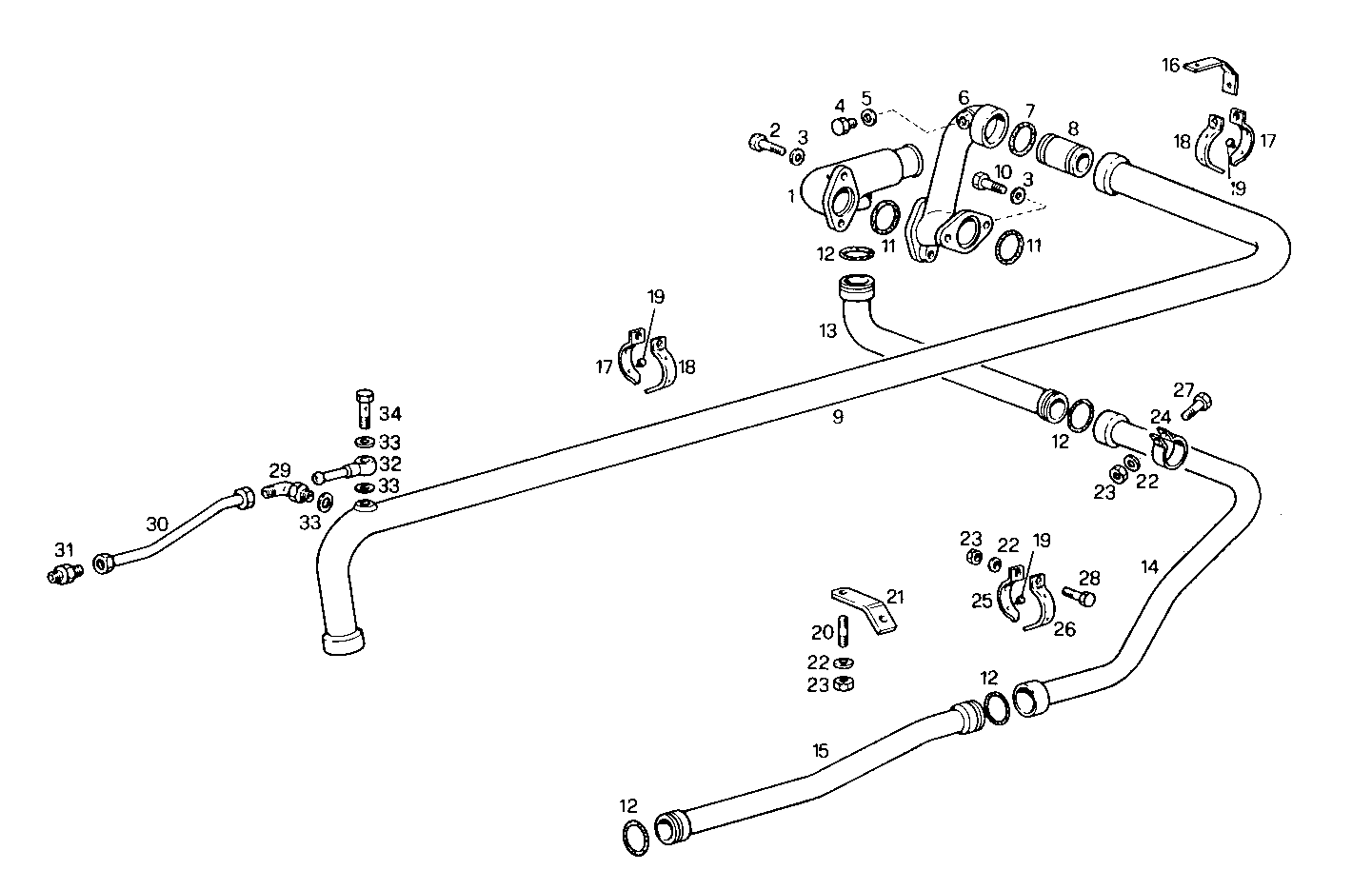

WATER LINES

8281SRM44.30 — 8281SRM44

Parts List

#	Part No	Name / Description	Qty
1	8113602	WATER PIPE WATER PIPE	1
2	11112421	HEXAGON BOLT HEXAGON BOLT	2
3	17091071	SPRING WASHER SPRING WASHER	4
4	10300540	PLUG PLUG	1
5	10298460	SEAL GASKET SEAL GASKET	1
6	8112884	WATER PIPE WATER PIPE	1
7	17289681	O-RING O-RING	2
8	8112495	CONNECTOR SLEEVE CONNECTOR SLEEVE	1
9	8112959	WATER PIPE WATER PIPE	1
10	14311021	SCREW SCREW	2
11	14459481	O-RING O-RING	2
12	14463781	O-RING O-RING	4
13	8112942	WATER PIPE WATER PIPE	1
14	8112944	WATER PIPE WATER PIPE	1
15	8007672	WATER PIPE WATER PIPE	1
16	8113565	RETAINER RETAINER	1
17	8113298	CLAMP CLAMP	3
18	8113299	CLAMP CLAMP	3
19	1366290	RUBBER PAD RUBBER PAD	20
20	13516621	STUD STUD	2
21	8113568	RETAINER RETAINER	2
22	17089471	SPRING WASHER SPRING WASHER	22
23	17037931	HEXAGON NUT HEXAGON NUT	9
24	8102910	CLIP CLIP	3
25	8113295	CLAMP CLAMP	2
26	8113296	CLAMP CLAMP	2
27	16043124	SCREW SCREW	2
28	16043421	HEXAGON BOLT HEXAGON BOLT	7
29	8112247	PIPE SOCKET PIPE SOCKET	1
30	8007687	WATER PIPE WATER PIPE	1
31	8111316	PIPE SOCKET PIPE SOCKET	1
32	98434018	THREADED UNION THREADED UNION	1
33	4858607	WASHER WASHER	2
34	4864082	BANJO BOLT BANJO BOLT	1
