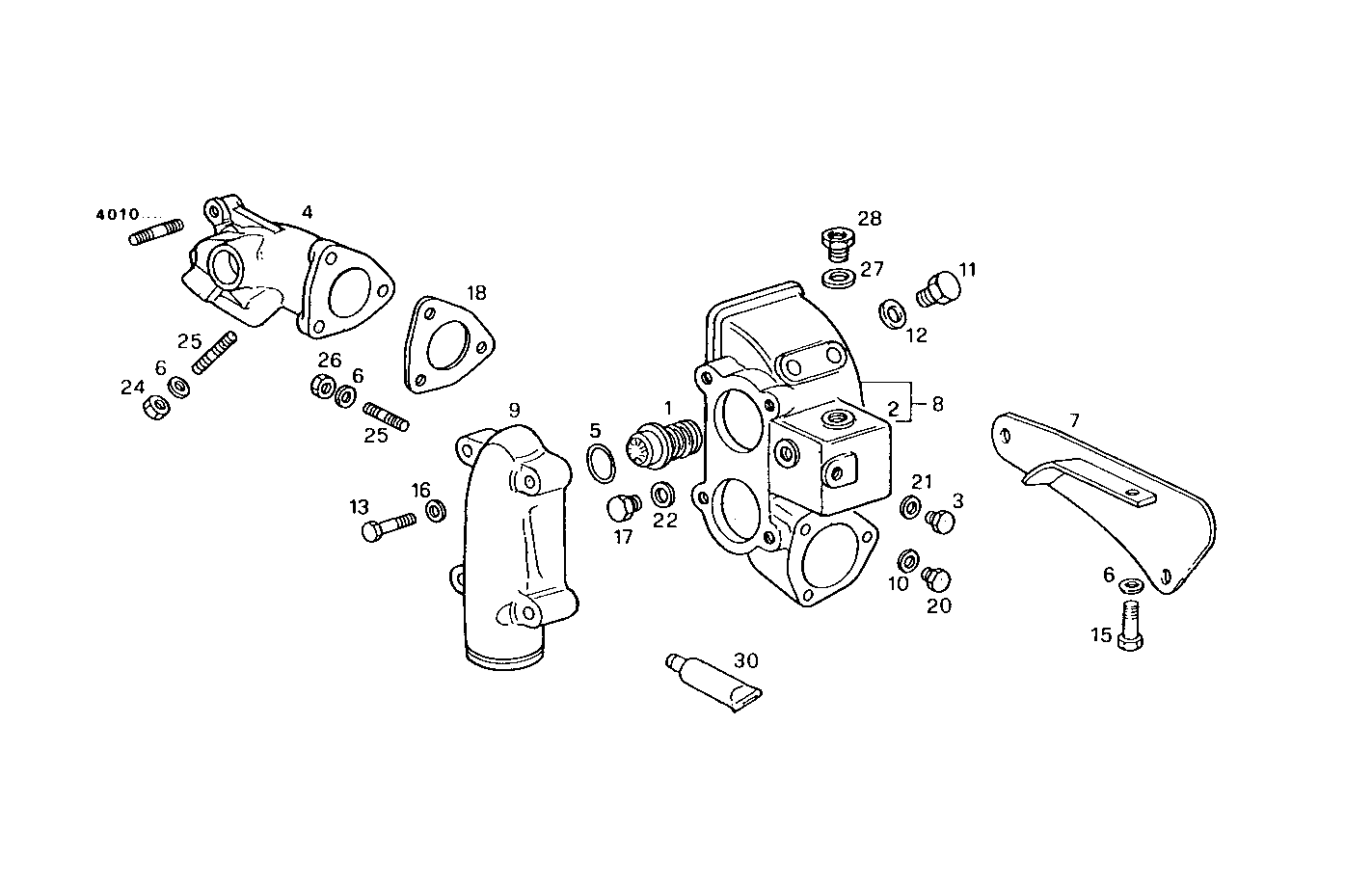

THERMOSTAT
8281SRM50.11 — 8281SRM50
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98439346 | THERMOSTAT THERMOSTAT | 2 | |
| 2 | 8025676 | CHOCK CHOCK | 1 | |
| 3 | 11903240 | PLUG PLUG | 1 | |
| 4 | 8024503 | WATER PIPE WATER PIPE | 1 | |
| 5 | 98465113 | O-RING O-RING | 2 | |
| 6 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 7 | 4800743 | RETAINER RETAINER | 1 | |
| 8 | 8025225 | THERMOSTAT BODY THERMOSTAT BODY | 1 | |
| 9 | 8104949 | WATER PIPE WATER PIPE | 1 | |
| 10 | 4858608 | SEAL GASKET SEAL GASKET | 2 | |
| 11 | 16992440 | THREADED PLUG THREADED PLUG | 4 | |
| 12 | 4858609 | WASHER WASHER | 4 | |
| 13 | 11288021 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 15 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 16 | 17090474 | SPRING WASHER SPRING WASHER | 4 | |
| 17 | 16992640 | PLUG PLUG | 1 | |
| 18 | 4863488 | GASKET GASKET | 1 | |
| 20 | 16993240 | PLUG PLUG | 2 | |
| 21 | 4858607 | WASHER WASHER | 1 | |
| 22 | 10263460 | WASHER WASHER | 1 | |
| 24 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 25 | 16729324 | STUD STUD | 5 | |
| 26 | 16979431 | NUT NUT | 3 | |
| 27 | 98474316 | WASHER WASHER | 1 | |
| 28 | 8012859 | PIPE SOCKET PIPE SOCKET | 1 | |
| 30 | 1905685 | ADHESIVE/STICKER ADHESIVE/STICKER | 1 |
