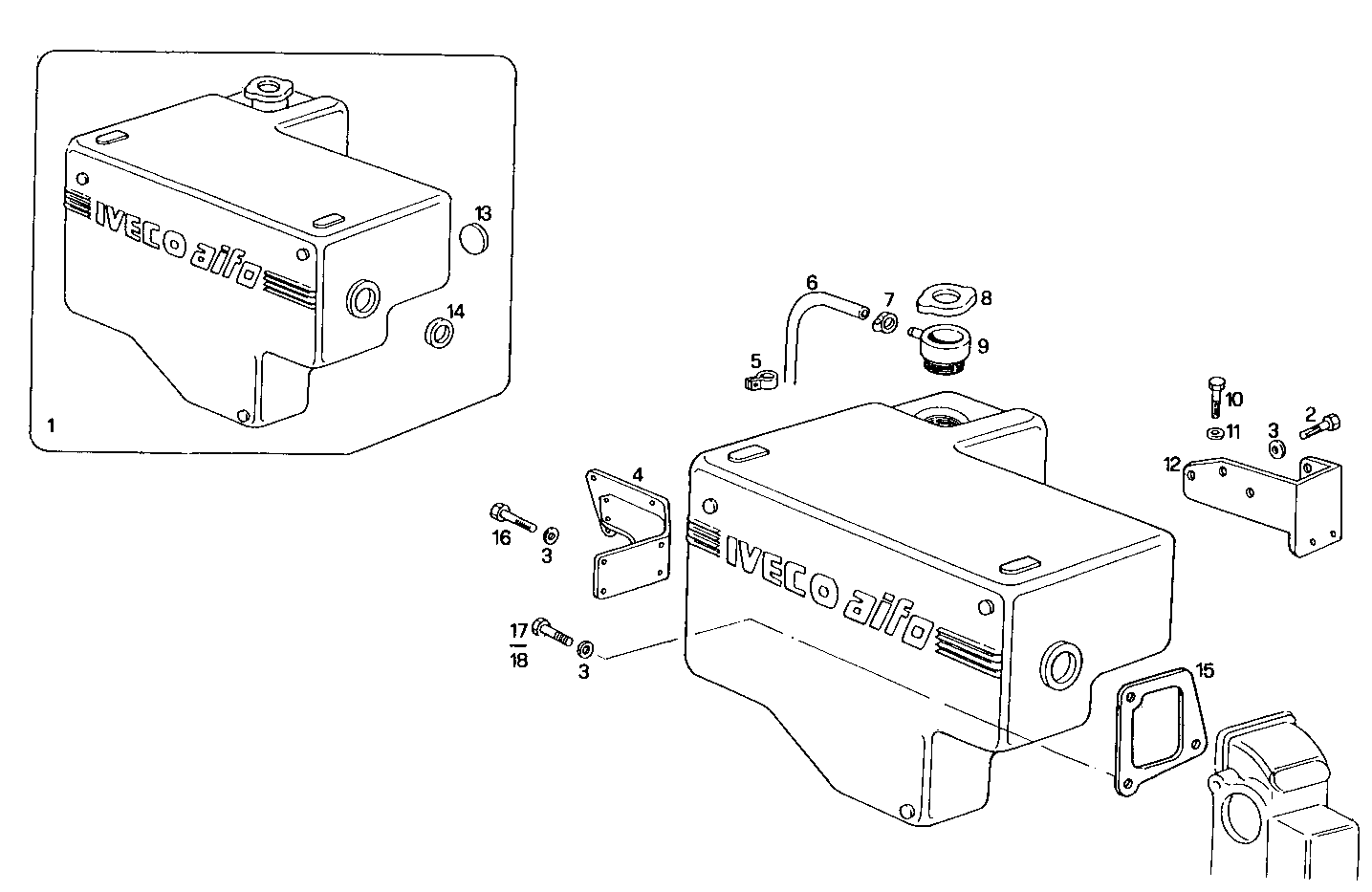

EXPANSION TANK
8281SRM50.12 — 8281SRM50
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8024501 | WATER EXPANSION TANK WATER EXPANSION TANK | 1 | |
| 2 | 16607624 | SCREW SCREW | 3 | |
| 3 | 17090174 | SPRING WASHER SPRING WASHER | 10 | |
| 4 | 8024968 | RETAINER RETAINER | 1 | |
| 5 | 17316590 | PIPE CLIP PIPE CLIP | 1 | |
| 6 | 17723081 | WATER HOSE WATER HOSE | 1 | |
| 7 | 17764293 | CLIP CLIP | 1 | |
| 8 | 4927808 | PLUG PLUG | 1 | |
| 9 | 4934521 | PIPE SOCKET PIPE SOCKET | 1 | |
| 10 | 15540321 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 11 | 17091074 | WASHER WASHER | 2 | |
| 12 | 8024969 | RETAINER RETAINER | 1 | |
| 13 | 16991170 | LOCK PLUG LOCK PLUG | 1 | |
| 14 | 16991370 | LOCK PLUG LOCK PLUG | 4 | |
| 15 | 4863517 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 16 | 16607524 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 17 | 15888721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 18 | 15972021 | HEXAGON BOLT HEXAGON BOLT | 2 |
