MARINE GEAR ZF-MPM BW 161
8281SRM50.12 — 8281SRM50

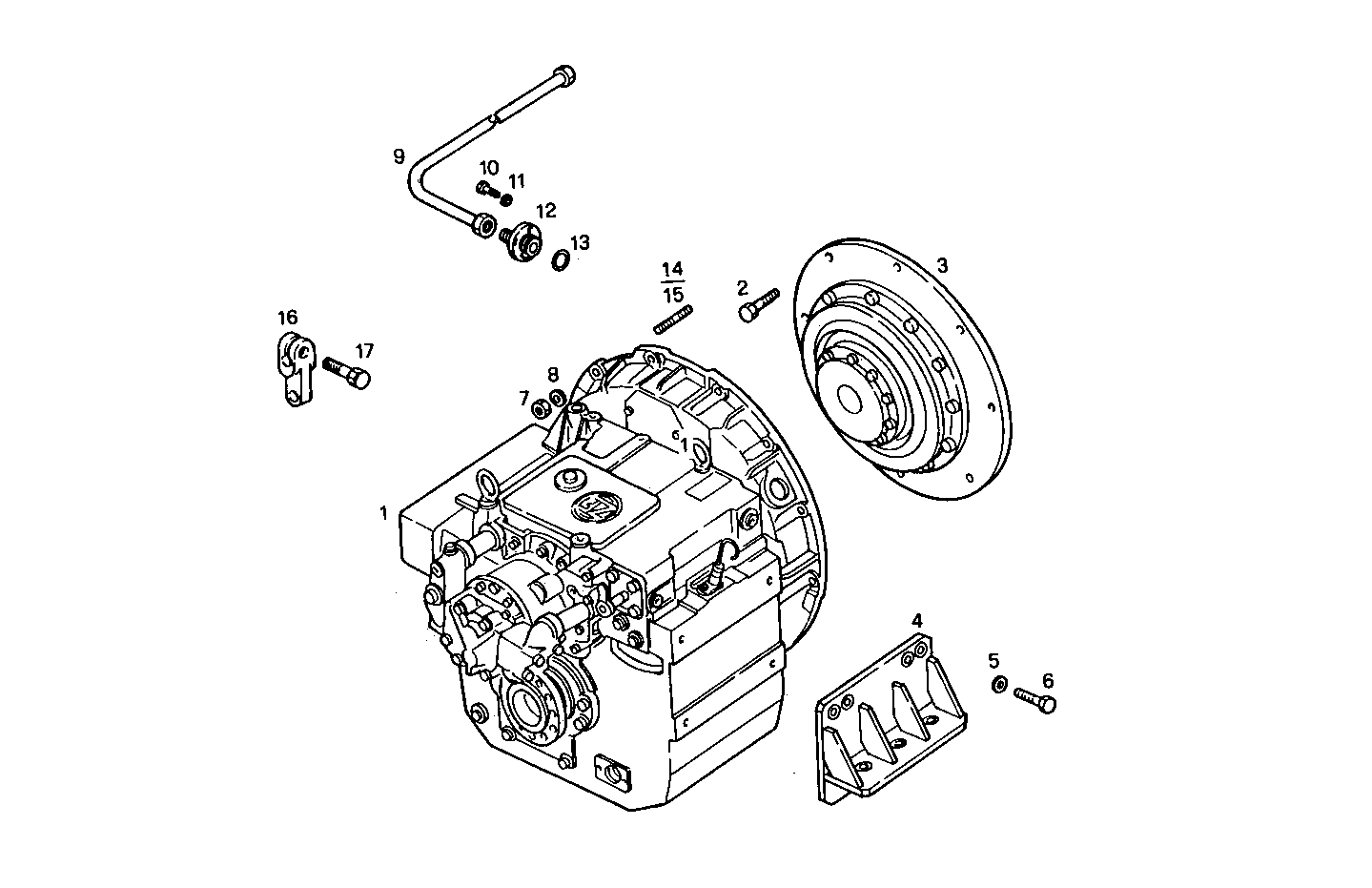

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8025599 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 14275721 | SCREW SCREW | 8 | |
| 3 | 8007581 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 4 | 8110996 | SUPPORT SUPPORT | 2 | |
| 5 | 11194279 | SPRING WASHER SPRING WASHER | 14 | |
| 6 | 4932875 | SCREW SCREW | 14 | |
| 7 | 17038121 | HEXAGON NUT HEXAGON NUT | 12 | |
| 8 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 9 | 8113774 | HOSE HOSE | 2 | |
| 10 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 11 | 17089474 | SPRING WASHER SPRING WASHER | 8 | |
| 12 | 8006596 | PIPE SOCKET PIPE SOCKET | 2 | |
| 13 | 17289181 | O-RING O-RING | 2 | |
| 14 | 17368424 | STUD STUD | 2 | |
| 15 | 17368124 | STUD STUD | 10 | |
| 16 | 8013126 | LEVER LEVER | 1 | |
| 17 | 16690724 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 1 |
