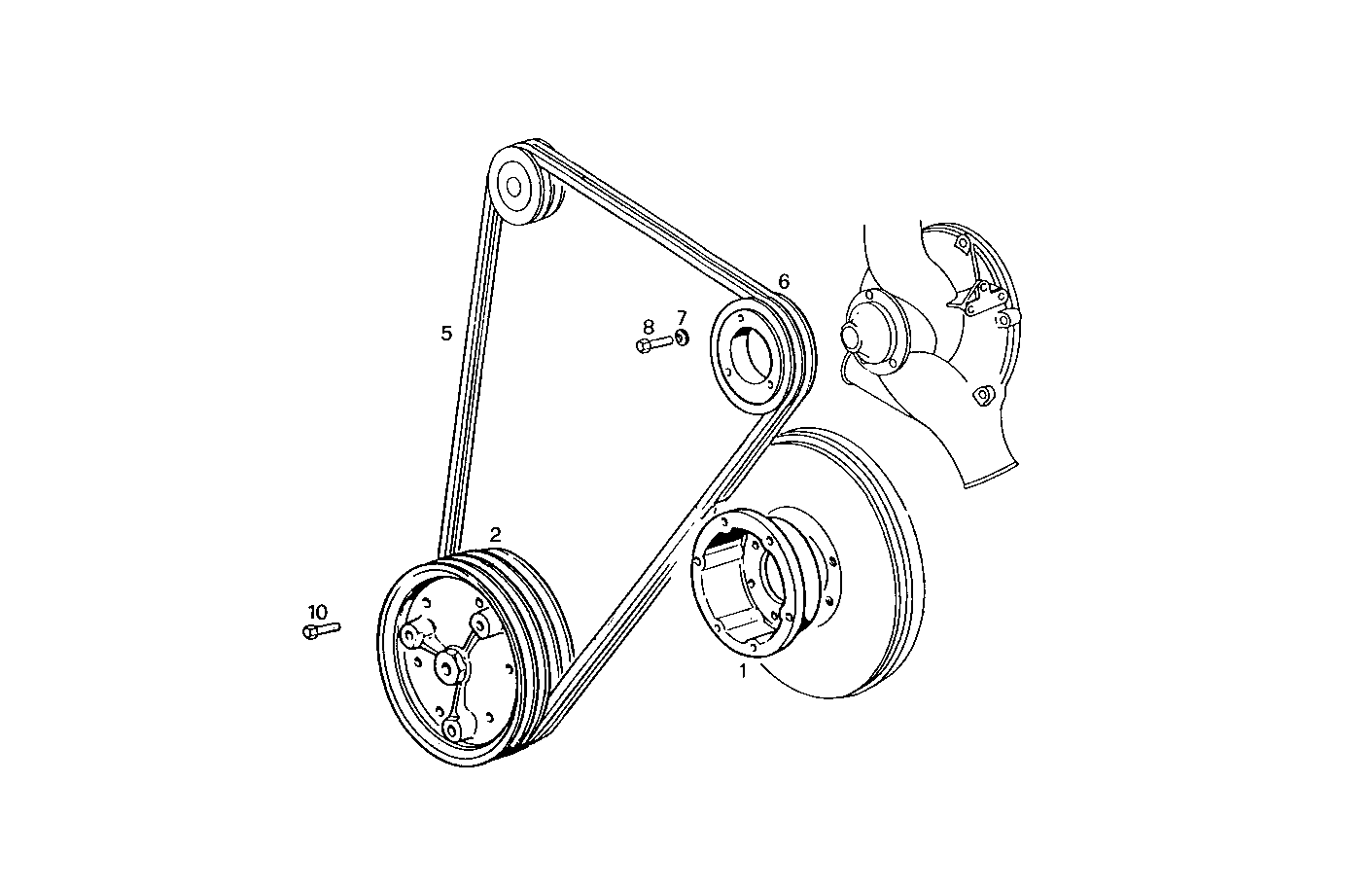

PULLEYS AND BELTS
8281SRM50.12 — 8281SRM50
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99445547 | SPACING BAR SPACING BAR | 1 | |
| 2 | 4701609 | PULLEY PULLEY | 1 | |
| 5 | 8031118 | V-BELT V-BELT | 1 | |
| 6 | 8104376 | PULLEY PULLEY | 1 | |
| 7 | 17089574 | WASHER WASHER | 3 | |
| 8 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 10 | 14255030 | LOCKING SCREW LOCKING SCREW | 8 |
