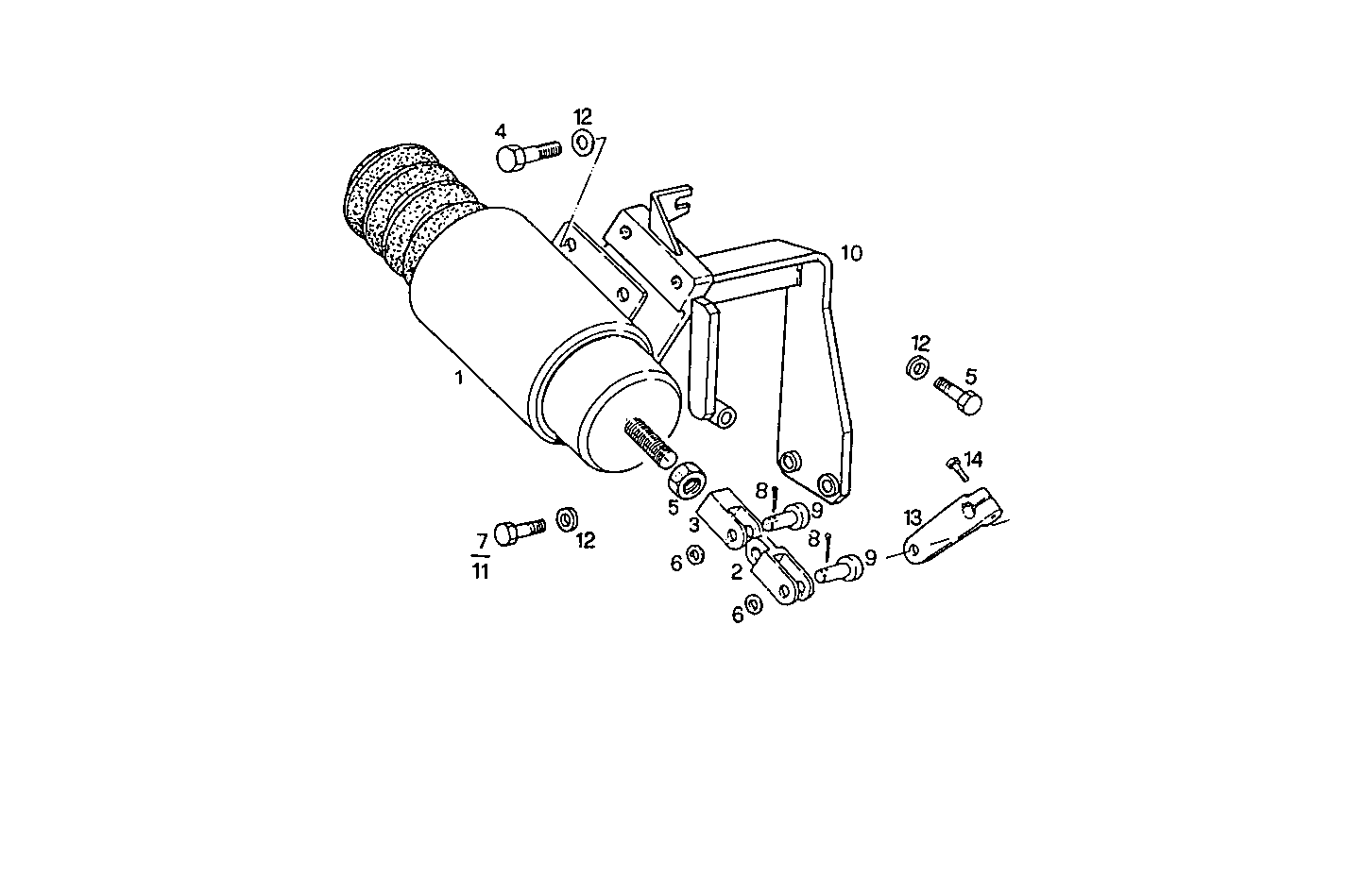

ELECTRIC STOP ENGINE
8281SRM50.31 — 8281SRM50
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8105568 | SOLENOID SOLENOID | 1 | |
| 2 | 8108833 | CLEVIS CLEVIS | 1 | |
| 3 | 8109159 | CLEVIS CLEVIS | 1 | |
| 4 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 5 | 15896211 | HEXAGON NUT HEXAGON NUT | 1 | |
| 6 | 17094504 | WASHER WASHER | 2 | |
| 7 | 16603424 | SCREW SCREW | 2 | |
| 8 | 16852501 | SPLIT PIN SPLIT PIN | 2 | |
| 9 | 17718411 | PIN PIN | 2 | |
| 10 | 8006296 | SUPPORT SUPPORT | 1 | |
| 11 | 16689624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 12 | 17088474 | WASHER WASHER | 7 | |
| 13 | 8110753 | LEVER LEVER | 1 | |
| 14 | 16602024 | SCREW SCREW | 1 |
