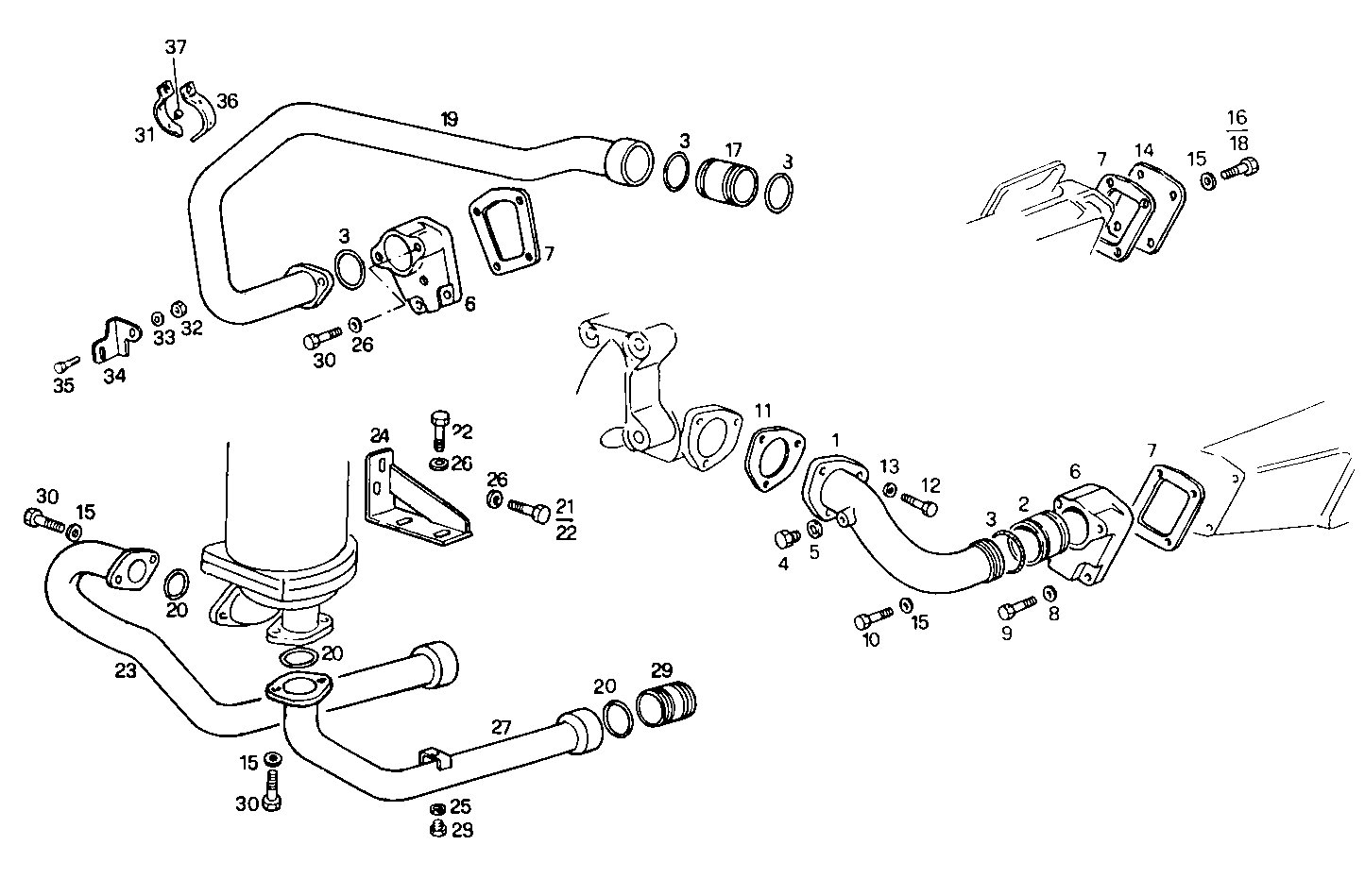

WATER LINES
8281SRM50.31 — 8281SRM50
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8109498 | WATER PIPE WATER PIPE | 1 | |
| 2 | 8112495 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 3 | 17289681 | O-RING O-RING | 9 | |
| 4 | 10300911 | PLUG PLUG | 1 | |
| 5 | 4858605 | WASHER WASHER | 1 | |
| 6 | 8109497 | COVER COVER | 2 | |
| 7 | 8105608 | GASKET GASKET | 4 | |
| 8 | 17798274 | SPRING WASHER SPRING WASHER | 4 | |
| 9 | 16691224 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 4 | |
| 10 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 11 | 4863539 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 12 | 16604124 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 13 | 17088474 | WASHER WASHER | 3 | |
| 14 | 8113918 | COVER COVER | 2 | |
| 15 | 17089474 | SPRING WASHER SPRING WASHER | 12 | |
| 16 | 16607024 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 17 | 8018308 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 18 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 19 | 8028180 | WATER PIPE WATER PIPE | 1 | |
| 20 | 17289981 | O-RING O-RING | 8 | |
| 21 | 16606024 | SCREW SCREW | 1 | |
| 22 | 16605424 | SCREW SCREW | 3 | |
| 23 | 8028131 | WATER PIPE WATER PIPE | 1 | |
| 24 | 8028257 | RETAINER RETAINER | 1 | |
| 25 | 4858606 | GASKET GASKET | 1 | |
| 26 | 17494834 | WASHER WASHER | 6 | |
| 27 | 8028135 | WATER PIPE WATER PIPE | 1 | |
| 28 | 16992111 | THREADED PLUG THREADED PLUG | 1 | |
| 29 | 8026324 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 2 | |
| 30 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 31 | 8113298 | CLAMP CLAMP | 1 | |
| 32 | 17038121 | HEXAGON NUT HEXAGON NUT | 2 | |
| 33 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 34 | 8028444 | RETAINER RETAINER | 1 | |
| 35 | 16607424 | SCREW SCREW | 2 | |
| 36 | 8113299 | CLAMP CLAMP | 1 | |
| 37 | 1364290 | DOWEL DOWEL | 4 |
