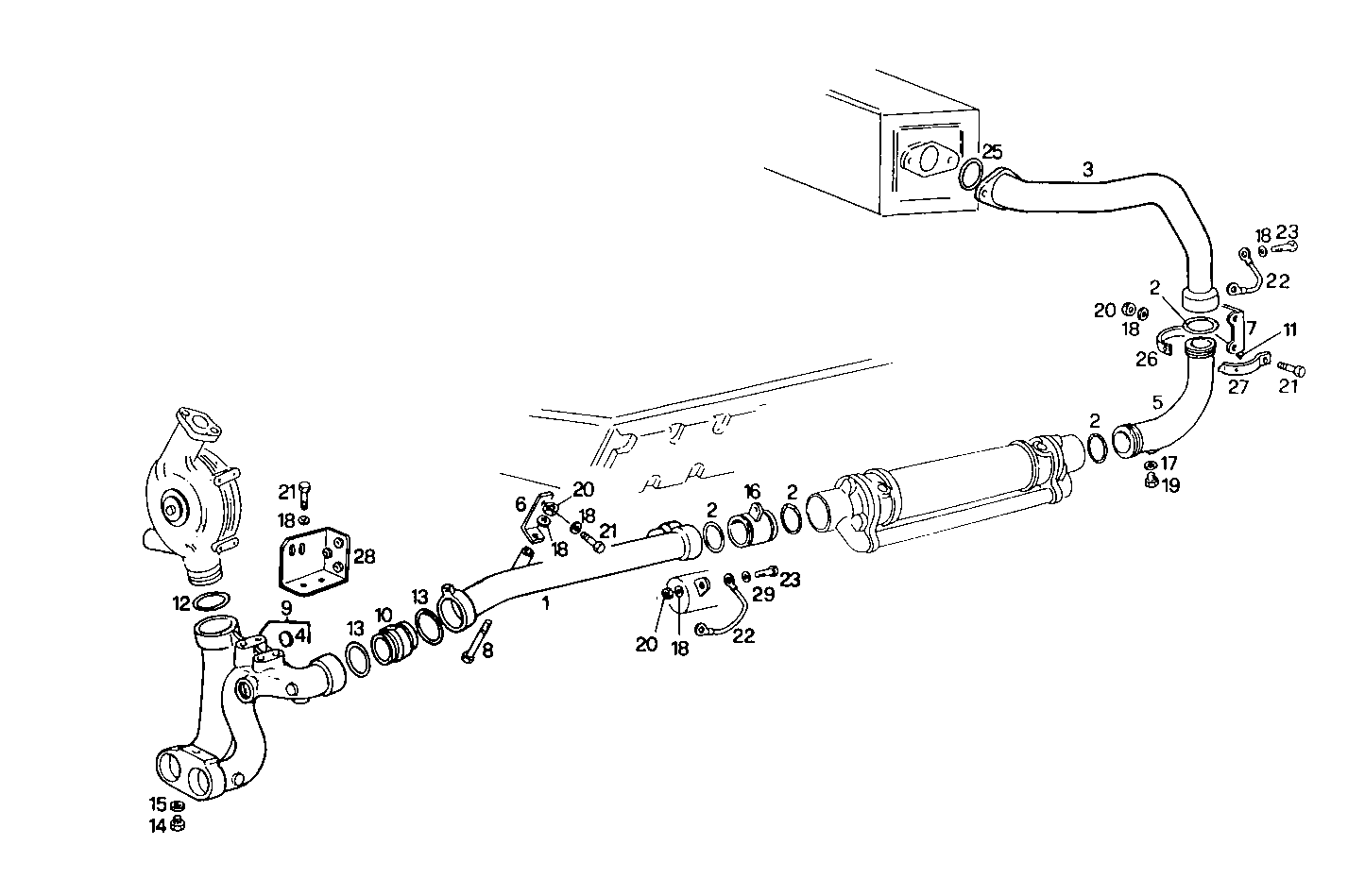

WATER LINES
8281SRM50.31 — 8281SRM50
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8028957 | WATER PIPE WATER PIPE | 1 | |
| 2 | 17289681 | O-RING O-RING | 4 | |
| 3 | 8007488 | WATER PIPE WATER PIPE | 1 | |
| 4 | 16991170 | LOCK PLUG LOCK PLUG | 1 | |
| 5 | 8027108 | WATER PIPE WATER PIPE | 1 | |
| 6 | 8113567 | RETAINER RETAINER | 1 | |
| 7 | 8007518 | RETAINER RETAINER | 1 | |
| 8 | 16045021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 8028098 | WATER PIPE WATER PIPE | 1 | |
| 10 | 8028161 | SPACING BAR SPACING BAR | 1 | |
| 11 | 1366290 | RUBBER PAD RUBBER PAD | 4 | |
| 12 | 17290081 | O-RING O-RING | 1 | |
| 13 | 17290181 | O-RING O-RING | 4 | |
| 14 | 11992411 | PLUG PLUG | 1 | |
| 15 | 4858609 | WASHER WASHER | 2 | |
| 16 | 8112469 | PIPE SOCKET PIPE SOCKET | 1 | |
| 17 | 4858606 | GASKET GASKET | 1 | |
| 18 | 17089474 | SPRING WASHER SPRING WASHER | 8 | |
| 19 | 11903140 | PLUG PLUG | 1 | |
| 20 | 17037931 | HEXAGON NUT HEXAGON NUT | 4 | |
| 21 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 22 | 8113786 | ENGINE HARNESS ENGINE HARNESS | 2 | |
| 23 | 16603424 | SCREW SCREW | 1 | |
| 24 | 17091071 | SPRING WASHER SPRING WASHER | 2 | |
| 25 | 17283981 | O-RING O-RING | 1 | |
| 26 | 8113296 | CLAMP CLAMP | 1 | |
| 27 | 8113295 | CLAMP CLAMP | 1 | |
| 28 | 8025359 | RETAINER RETAINER | 1 | |
| 29 | 17094704 | WASHER WASHER | 1 |
