ACCESSORIES
8281SRM50.31A002 — 8281SRM50

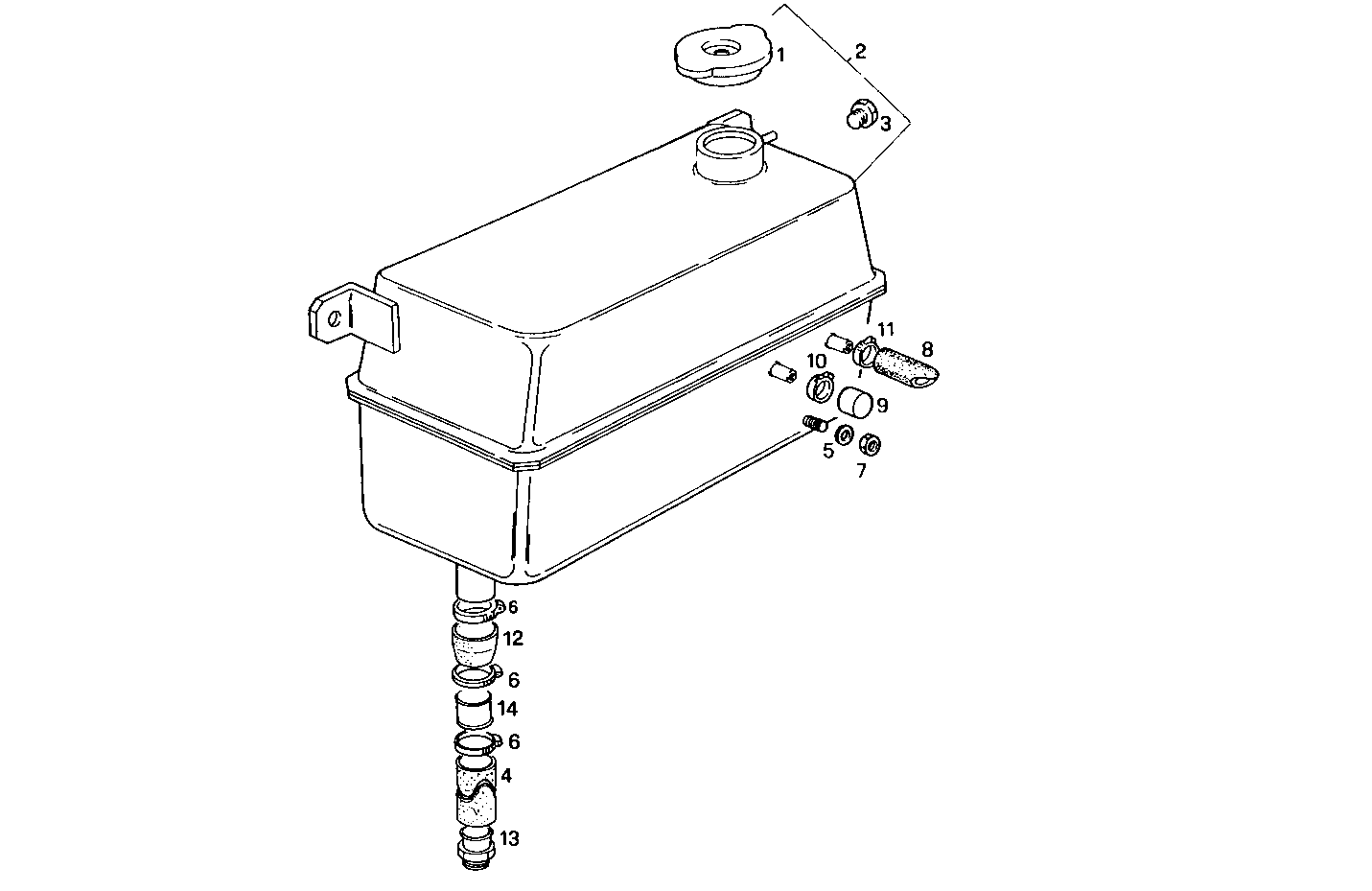

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8109172 | PLUG PLUG | 1 | |
| 2 | 8109443 | WATER EXPANSION TANK WATER EXPANSION TANK | 1 | |
| 3 | 8105096 | PLUG PLUG | 1 | |
| 4 | 8028970 | WATER HOSE WATER HOSE | 1 | |
| 5 | 17088474 | WASHER WASHER | 1 | |
| 6 | 17764693 | CLIP CLIP | 4 | |
| 7 | 17037821 | HEXAGON NUT HEXAGON NUT | 1 | |
| 8 | 19070287 | WATER HOSE WATER HOSE | 1 | |
| 9 | 8113817 | PLUG PLUG | 1 | |
| 10 | 18088293 | CLIP CLIP | 2 | |
| 11 | 18087993 | CLIP CLIP | 2 | |
| 12 | 8028998 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 13 | 8027977 | PIPE SOCKET PIPE SOCKET | 1 | |
| 14 | 8028969 | FILLER NECK FILLER NECK | 1 |
