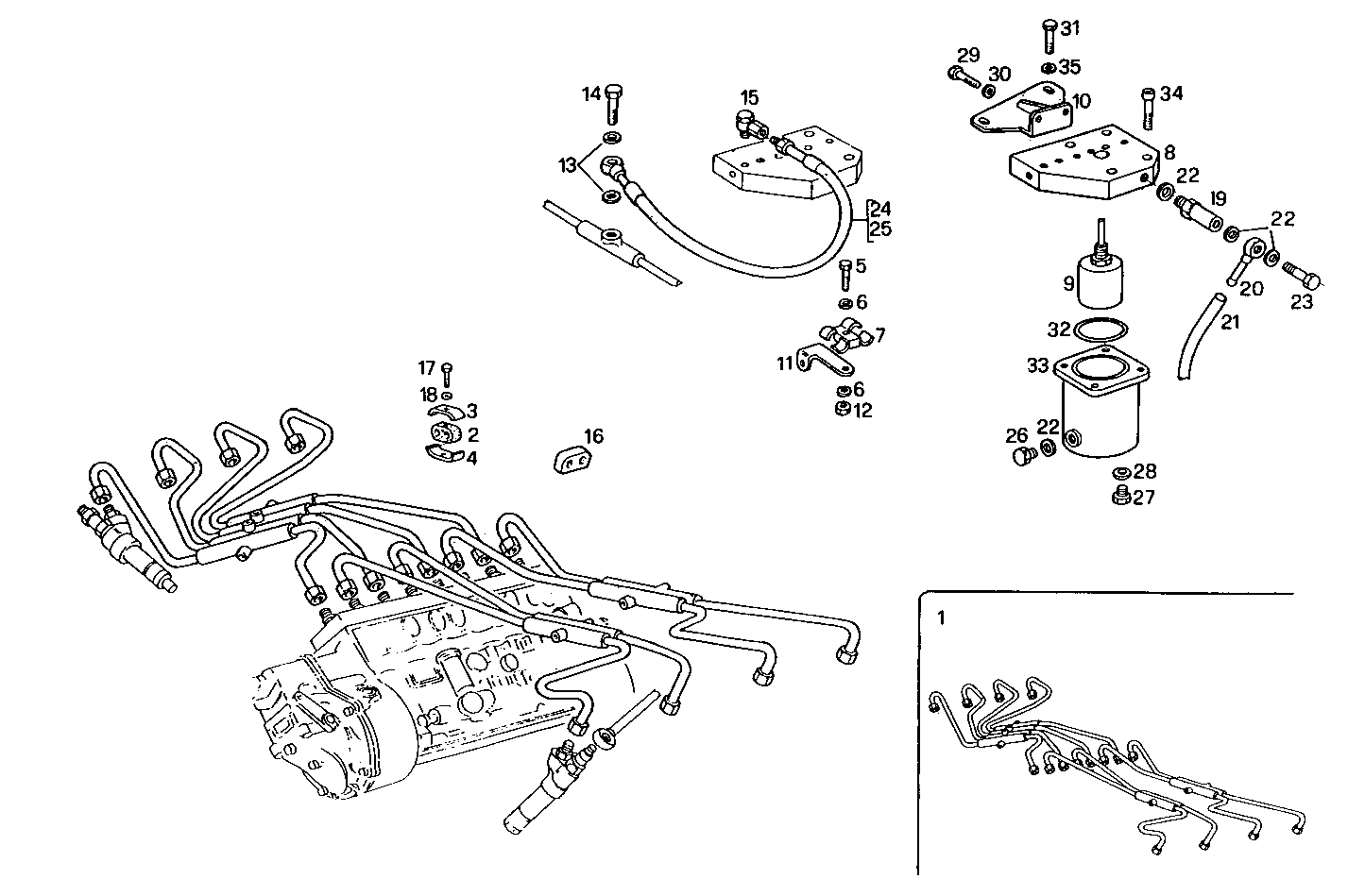

DOUBLE WALL INJECTION PIPES
8281SRM50.31A002 — 8281SRM50
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8025703 | INJECTION LINES SET INJECTION LINES SET | 1 | |
| 2 | 4659217 | DOWEL DOWEL | 4 | |
| 3 | 4659218 | CLIP CLIP | 4 | |
| 4 | 4659219 | PLATE PLATE | 4 | |
| 5 | 16602524 | SCREW SCREW | 1 | |
| 6 | 17094504 | WASHER WASHER | 2 | |
| 7 | 8030239 | CLIP CLIP | 4 | |
| 8 | 8030234 | DISTRIBUTOR DISTRIBUTOR | 1 | |
| 9 | 8102285 | INDICATOR INDICATOR | 1 | |
| 10 | 8030223 | SUPPORT SUPPORT | 1 | |
| 11 | 8025357 | RETAINER RETAINER | 1 | |
| 12 | 17152621 | NUT NUT | 1 | |
| 13 | 98474303 | WASHER WASHER | 16 | |
| 14 | 4864078 | BANJO BOLT BANJO BOLT | 8 | |
| 15 | 8026816 | SCREW CONNECTOR SCREW CONNECTOR | 8 | |
| 16 | 8110955 | RUBBER PAD RUBBER PAD | 8 | |
| 17 | 10978021 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 18 | 12601179 | WASHER WASHER | 4 | |
| 19 | 8102465 | VALVE VALVE | 1 | |
| 20 | 16500214 | THREADED UNION THREADED UNION | 1 | |
| 21 | 8030230 | HOSE HOSE | 1 | |
| 22 | 4858608 | SEAL GASKET SEAL GASKET | 3 | |
| 23 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 24 | 8030220 | HOSE HOSE | 4 | |
| 25 | 8030221 | HOSE HOSE | 4 | |
| 26 | 16992311 | LOCK PLUG LOCK PLUG | 1 | |
| 27 | 16992211 | THREADED PLUG THREADED PLUG | 1 | |
| 28 | 4858607 | WASHER WASHER | 1 | |
| 29 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 30 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 31 | 15540324 | SCREW SCREW | 2 | |
| 32 | 17290081 | O-RING O-RING | 1 | |
| 33 | 8026365 | TANK TANK | 1 | |
| 34 | 16689424 | SOCKET-HEAD SCREW SOCKET-HEAD SCREW | 4 | |
| 35 | 17091074 | WASHER WASHER | 2 |
