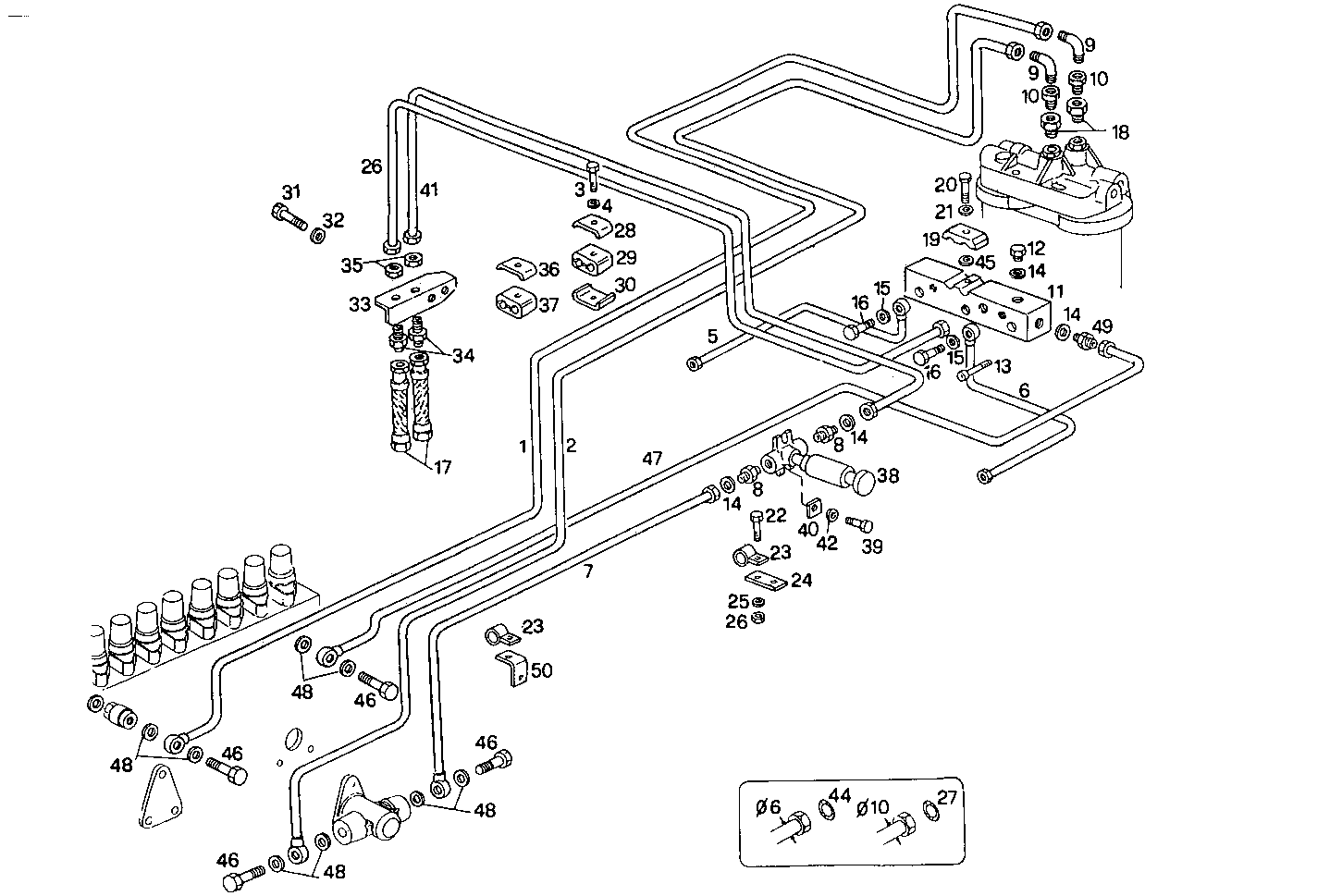

FUEL LINES

8281SRM50.32 — 8281SRM50

Parts List

#	Part No	Name / Description	Qty
1	8030269	FUEL LINE FUEL LINE	1
2	8030268	FUEL LINE FUEL LINE	1
3	16603924	HEXAGON BOLT HEXAGON BOLT	2
4	17088974	SPRING WASHER SPRING WASHER	2
5	8030272	FUEL LINE FUEL LINE	1
6	8030271	FUEL LINE FUEL LINE	1
7	8030267	FUEL LINE FUEL LINE	1
8	16500214	THREADED UNION THREADED UNION	3
9	8025927	ELBOW COUPLING ELBOW COUPLING	2
10	8112283	PIPE SOCKET PIPE SOCKET	2
11	8018178	DISTRIBUTOR DISTRIBUTOR	1
12	16992311	LOCK PLUG LOCK PLUG	2
13	16991324	SCREW SCREW	3
14	4858608	SEAL GASKET SEAL GASKET	5
15	98474305	WASHER WASHER	2
16	4864079	SCREW CONNECTOR SCREW CONNECTOR	2
17	8112285	FUEL LINE FUEL LINE	2
18	8112284	PIPE SOCKET PIPE SOCKET	4
19	8010505	CLAMP CLAMP	1
20	16605824	HEXAGON BOLT HEXAGON BOLT	1
21	17094904	WASHER WASHER	1
22	16605734	HEXAGON BOLT HEXAGON BOLT	2
23	17316490	CLIP CLIP	2
24	4929652	RETAINER RETAINER	1
25	17089474	SPRING WASHER SPRING WASHER	2
26	8030275	FUEL LINE FUEL LINE	1
27	8024646	O-RING O-RING	6
28	4644288	CLIP CLIP	2
29	4871771	RUBBER PAD RUBBER PAD	2
30	4644289	CLIP CLIP	2
31	15970521	HEXAGON BOLT HEXAGON BOLT	2
32	17090474	SPRING WASHER SPRING WASHER	2
33	8026306	RETAINER RETAINER	1
34	8011138	PIPE SOCKET PIPE SOCKET	2
35	16508811	NUT NUT	2
36	4641551	CLAMP CLAMP	1
37	4761451	RUBBER PAD RUBBER PAD	1
38	4797319	HAND PUMP HAND PUMP	1
39	10902621	SCREW SCREW	2
40	7300648	LOCKING PLATE LOCKING PLATE	2
41	8026469	FUEL LINE FUEL LINE	1
42	16665404	WASHER WASHER	2
43	17037931	HEXAGON NUT HEXAGON NUT	2
44	8024645	O-RING O-RING	2
45	8030277	SPACING BAR SPACING BAR	2
46	4864083	SCREW CONNECTOR SCREW CONNECTOR	4
47	8030270	FUEL LINE FUEL LINE	1
48	98474308	SEAL GASKET SEAL GASKET	8
49	16500214	THREADED UNION THREADED UNION	2
50	8110294	RETAINER RETAINER	1
