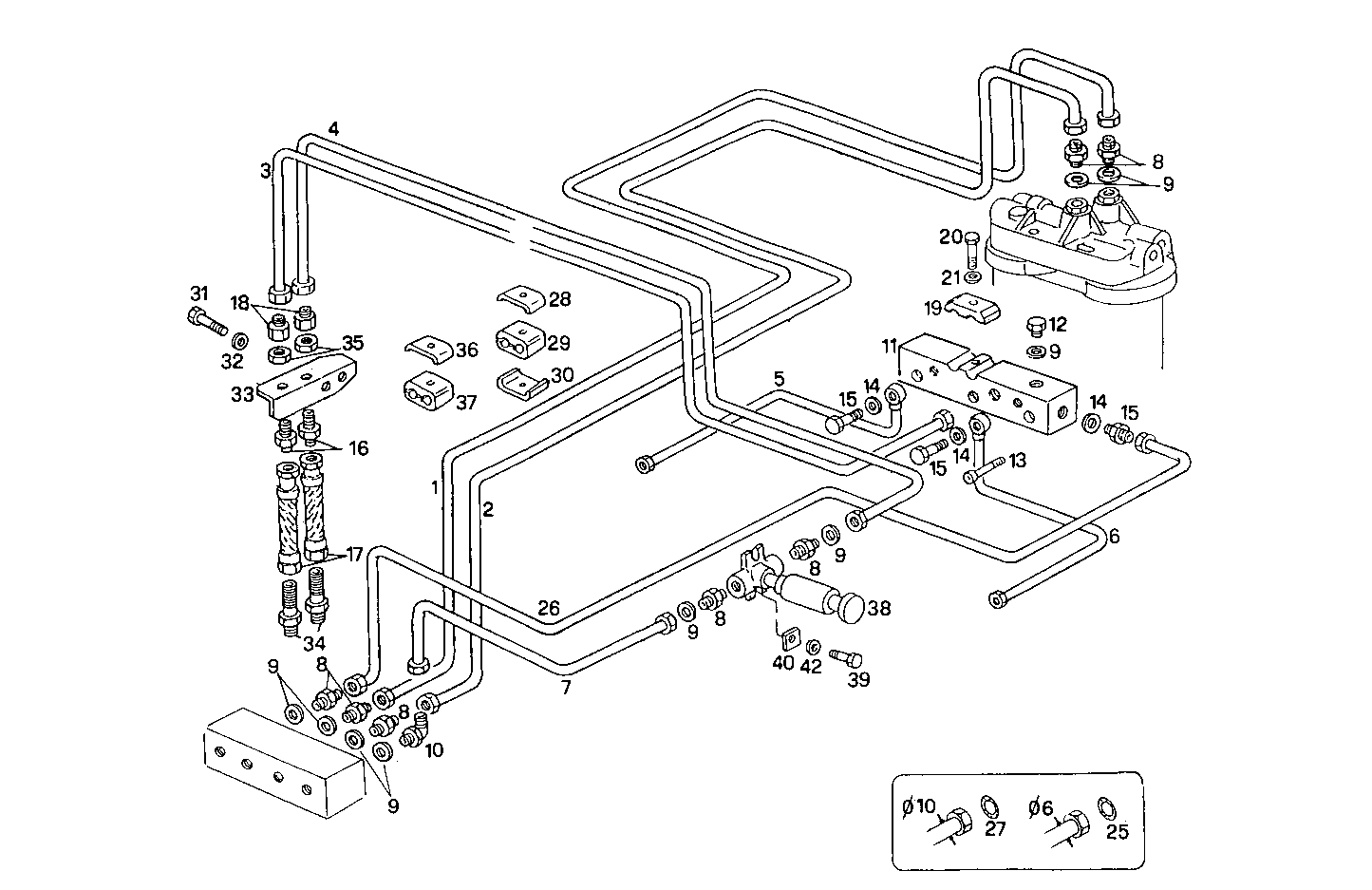

FUEL LINES

8281SRM50.32 — 8281SRM50

Parts List

#	Part No	Name / Description	Qty
1	8025881	FUEL LINE FUEL LINE	1
2	8025880	FUEL LINE FUEL LINE	1
3	8025125	FUEL LINE FUEL LINE	1
4	8026469	FUEL LINE FUEL LINE	1
5	8025123	FUEL LINE FUEL LINE	1
6	8025122	FUEL LINE FUEL LINE	1
7	8025879	FUEL LINE FUEL LINE	1
8	16500214	THREADED UNION THREADED UNION	7
9	4858608	SEAL GASKET SEAL GASKET	7
10	8025927	ELBOW COUPLING ELBOW COUPLING	1
11	8018178	DISTRIBUTOR DISTRIBUTOR	1
12	16992311	LOCK PLUG LOCK PLUG	2
13	16991324	SCREW SCREW	3
14	4858606	GASKET GASKET	4
15	4864079	SCREW CONNECTOR SCREW CONNECTOR	2
16	8112283	PIPE SOCKET PIPE SOCKET	2
17	8112285	FUEL LINE FUEL LINE	2
18	8111284	PIPE SOCKET PIPE SOCKET	2
19	8010505	CLAMP CLAMP	1
20	16603924	HEXAGON BOLT HEXAGON BOLT	1
21	17088974	SPRING WASHER SPRING WASHER	1
22	16605824	HEXAGON BOLT HEXAGON BOLT	1
23	17094914	WASHER WASHER	1
25	8024645	O-RING O-RING	2
26	8025124	FUEL LINE FUEL LINE	1
27	8024646	O-RING O-RING	6
28	4644288	CLIP CLIP	1
29	4871771	RUBBER PAD RUBBER PAD	5
30	4644289	CLIP CLIP	1
31	15970521	HEXAGON BOLT HEXAGON BOLT	2
32	17090474	SPRING WASHER SPRING WASHER	2
33	8026306	RETAINER RETAINER	1
34	8011138	PIPE SOCKET PIPE SOCKET	2
35	16508811	NUT NUT	2
36	4641551	CLAMP CLAMP	1
37	4761451	RUBBER PAD RUBBER PAD	1
38	4797319	HAND PUMP HAND PUMP	1
39	10902621	SCREW SCREW	2
40	7300648	LOCKING PLATE LOCKING PLATE	2
42	16665404	WASHER WASHER	2
