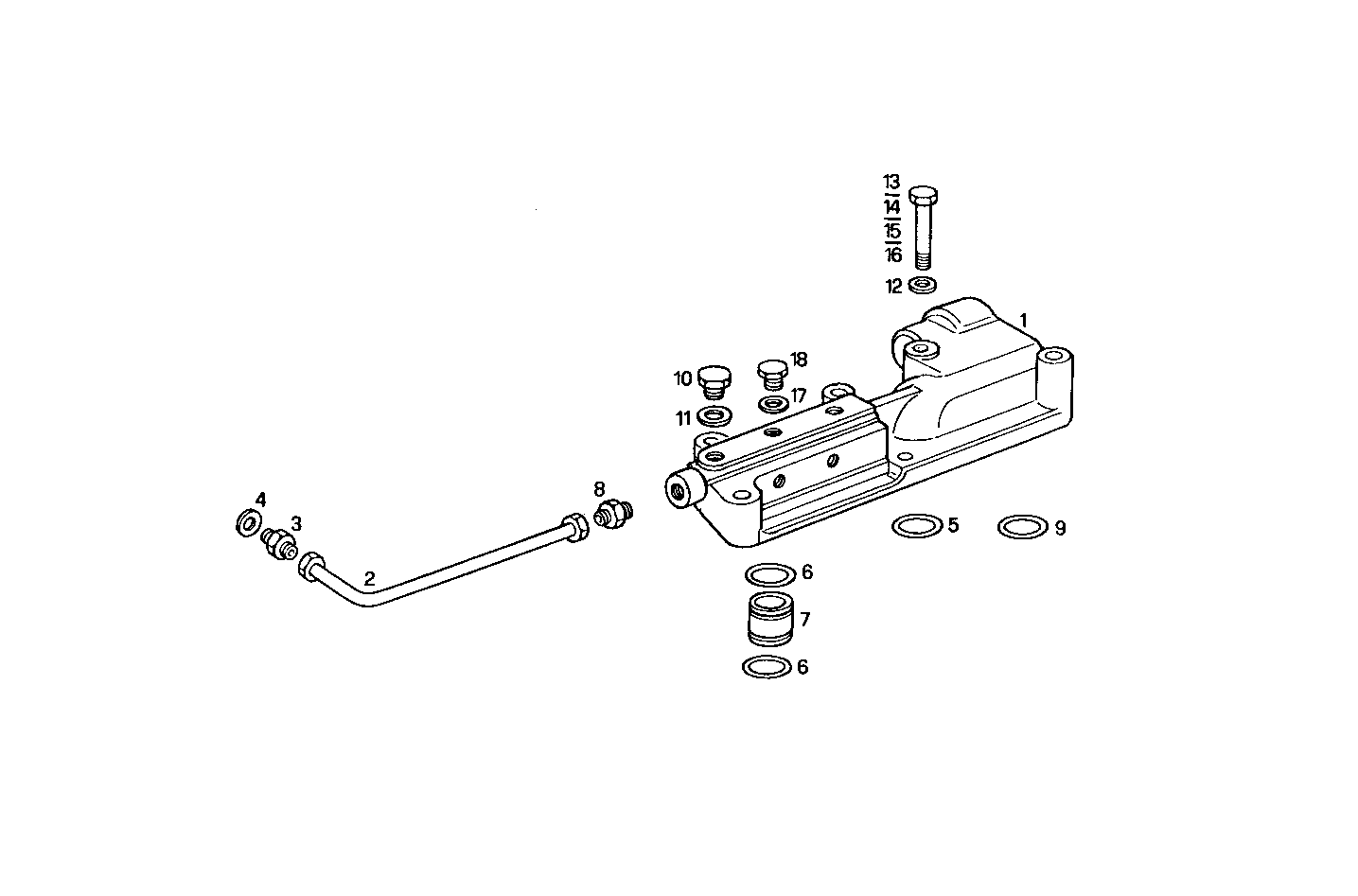

OIL PRESSURE VALVE
8281SRM50.32 — 8281SRM50
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8024521 | DISTRIBUTOR DISTRIBUTOR | 1 | |
| 2 | 8025033 | OIL LINE OIL LINE | 2 | |
| 3 | 16500214 | THREADED UNION THREADED UNION | 2 | |
| 4 | 4858608 | SEAL GASKET SEAL GASKET | 2 | |
| 5 | 17282781 | O-RING O-RING | 1 | |
| 6 | 17289181 | O-RING O-RING | 2 | |
| 7 | 8026313 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 8 | 8017989 | PIPE SOCKET PIPE SOCKET | 1 | |
| 9 | 17282581 | O-RING O-RING | 1 | |
| 10 | 16992211 | THREADED PLUG THREADED PLUG | 3 | |
| 11 | 4858607 | WASHER WASHER | 3 | |
| 12 | 17089574 | WASHER WASHER | 6 | |
| 13 | 16606524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 15 | 16606224 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 16 | 16606324 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 17 | 4858606 | GASKET GASKET | 2 | |
| 18 | 16992111 | THREADED PLUG THREADED PLUG | 2 |
