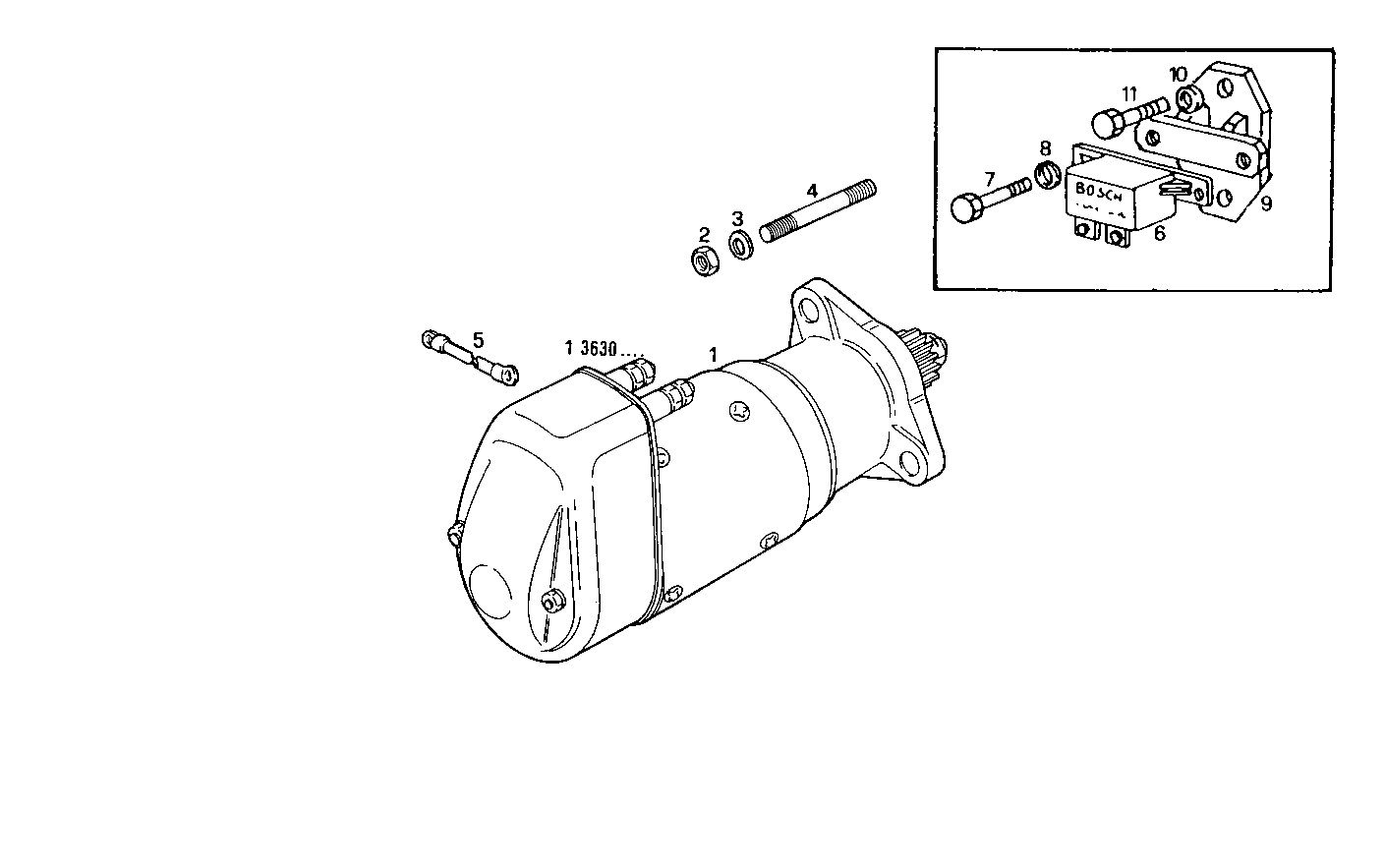

STARTER MOTOR
8281SRM50.32 — 8281SRM50
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4936699 | STARTER MOTOR STARTER MOTOR | 1 | |
| 2 | 12164011 | HEXAGON NUT HEXAGON NUT | 3 | |
| 3 | 14496801 | WASHER WASHER | 2 | |
| 4 | 11797421 | STUD STUD | 3 | |
| 5 | 8112529 | EARTH WIRE EARTH WIRE | 1 | |
| 6 | 8108575 | RELAY RELAY | 1 | |
| 7 | 10902021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 11197771 | SPRING WASHER SPRING WASHER | 2 | |
| 9 | 8108626 | SUPPORT SUPPORT | 1 | |
| 10 | 11193879 | SPRING WASHER SPRING WASHER | 2 | |
| 11 | 16043421 | HEXAGON BOLT HEXAGON BOLT | 2 |
