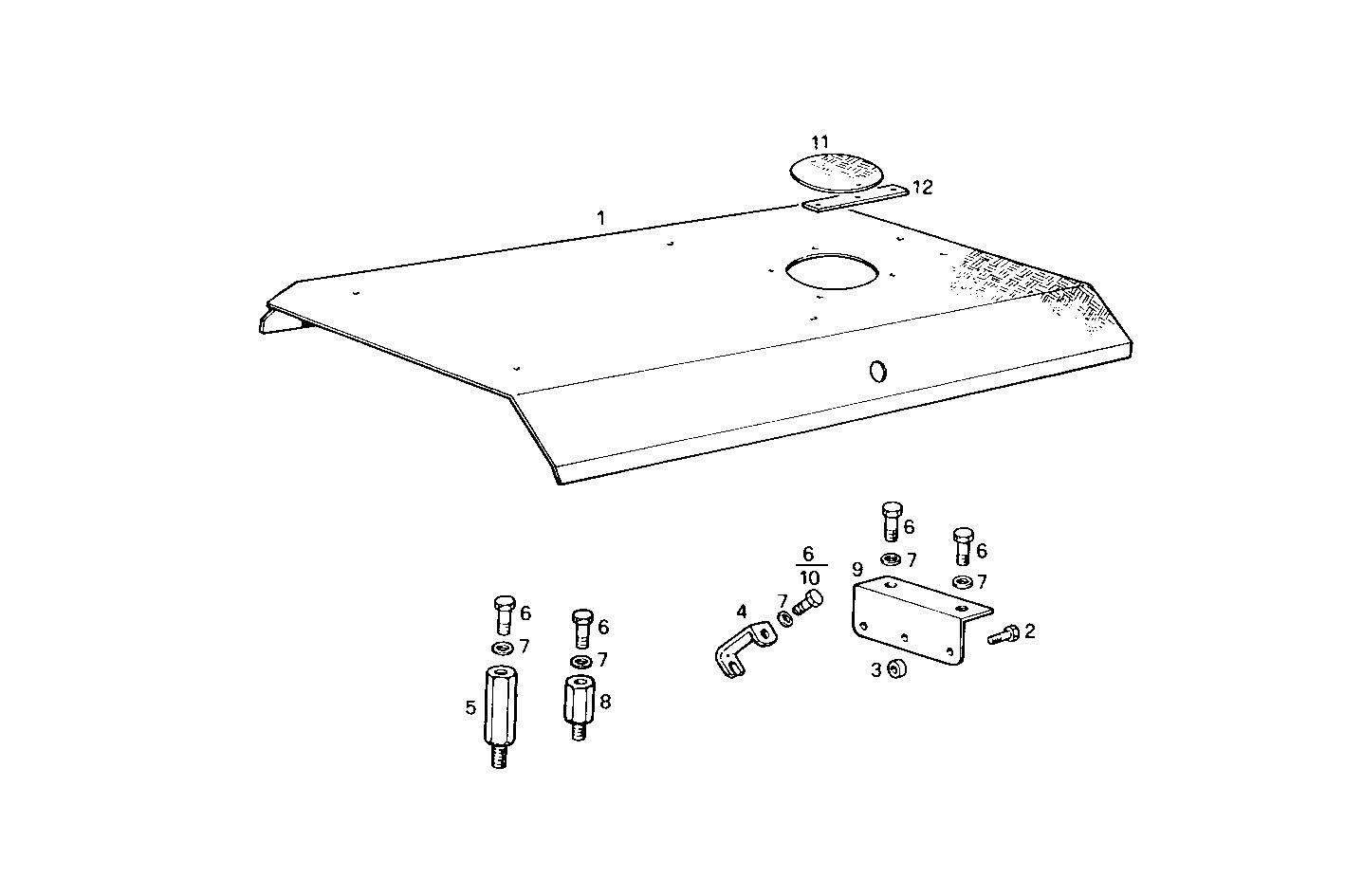

SHIELDS
8281SRM70.10 — 8281SRM70
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8113677 | PROTECTION PROTECTION | 1 | |
| 2 | 16606324 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 3 | 17816514 | SPACING BAR SPACING BAR | 3 | |
| 4 | 8113803 | RETAINER RETAINER | 1 | |
| 5 | 8113802 | SPACING BAR SPACING BAR | 2 | |
| 6 | 15540221 | HEXAGON BOLT HEXAGON BOLT | 22 | |
| 7 | 17091074 | WASHER WASHER | 23 | |
| 8 | 8113801 | SPACING BAR SPACING BAR | 4 | |
| 9 | 8112752 | RETAINER RETAINER | 1 | |
| 10 | 15540021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 8006268 | COVER COVER | 1 | |
| 12 | 8006269 | RETAINER RETAINER | 1 |
