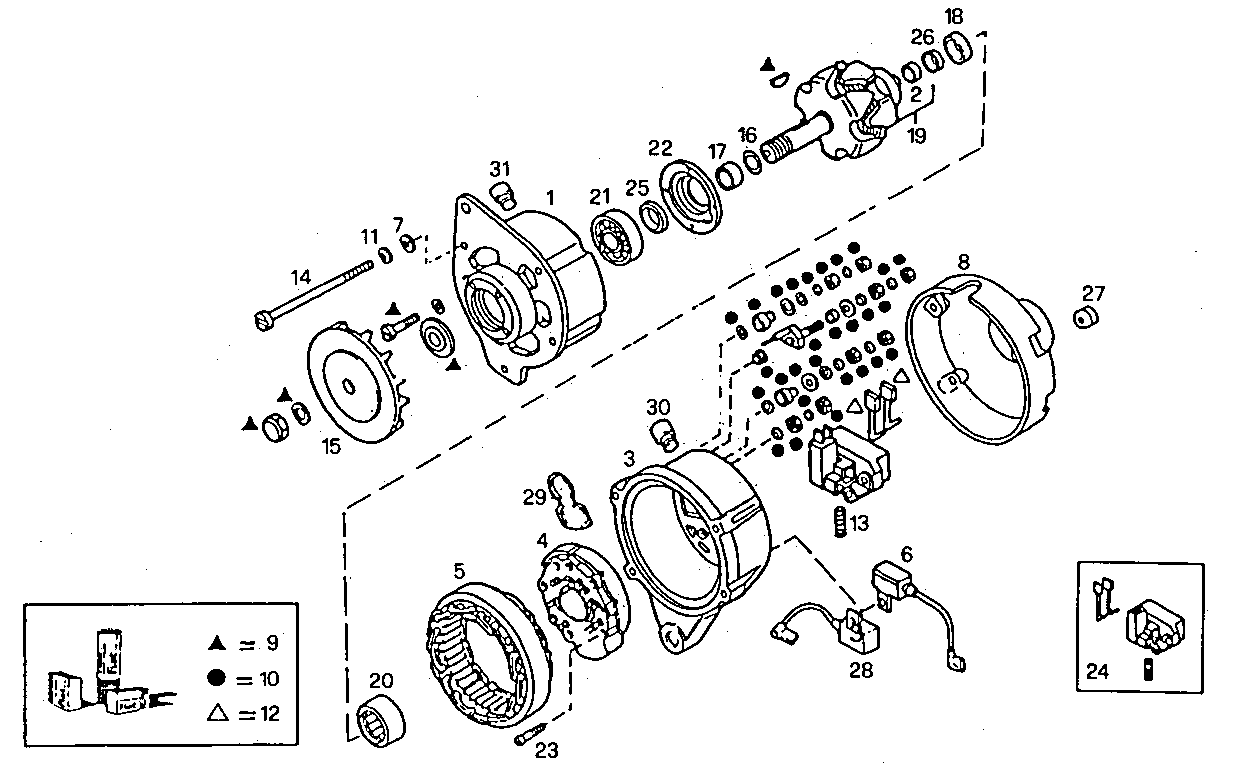

ALTERNATOR
8281SRM70.11 — 8281SRM70
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8122269 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 2 | 8122271 | RING RING | 1 | |
| 3 | 8199086 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 4 | 8122274 | RECTIFIER BRIDGE RECTIFIER BRIDGE | 1 | |
| 5 | 7984048 | GENERATOR STATOR GENERATOR STATOR | 1 | |
| 6 | 79074709 | CONDENSER CONDENSER | 1 | |
| 7 | 1124654 | WASHER WASHER | 1 | |
| 8 | 8122283 | COVER COVER | 1 | |
| 9 | 8122284 | KIT-GENERATOR KIT-GENERATOR | 1 | |
| 10 | 8124787 | KIT-GENERATOR KIT-GENERATOR | 1 | |
| 11 | 79058502 | WASHER WASHER | 1 | |
| 12 | 8122276 | GENERATOR BRUSH GENERATOR BRUSH | 1 | |
| 13 | 42491524 | SPRING SPRING | 2 | |
| 14 | 8199088 | SCREW SCREW | 1 | |
| 15 | 8122280 | GENERATOR FAN GENERATOR FAN | 1 | |
| 16 | 1119832 | SNAP RING SNAP RING | 1 | |
| 17 | 1301177 | BUSH BUSH | 1 | |
| 18 | 8122282 | RING RING | 1 | |
| 19 | 8122270 | GENERATOR ROTOR GENERATOR ROTOR | 1 | |
| 20 | 1905186 | ENGINE BEARINGS ENGINE BEARINGS | 1 | |
| 21 | 1103694 | DRIVE BEARING DRIVE BEARING | 1 | |
| 22 | 1301183 | PLATE PLATE | 1 | |
| 23 | 79093985 | SCREW SCREW | 3 | |
| 24 | 8199087 | VOLTAGE REGULATOR VOLTAGE REGULATOR | 1 | |
| 25 | 1290380 | WASHER WASHER | 1 | |
| 26 | 8122281 | BUSH BUSH | 1 | |
| 27 | 1171647 | RUBBER GROMMET RUBBER GROMMET | 2 | |
| 28 | 8199090 | CONDENSER CONDENSER | 1 | |
| 29 | 7984047 | GASKET GASKET | 1 | |
| 30 | 7984649 | LUBE FITTING LUBE FITTING | 1 | |
| 31 | 7984650 | LUBE FITTING LUBE FITTING | 1 |
