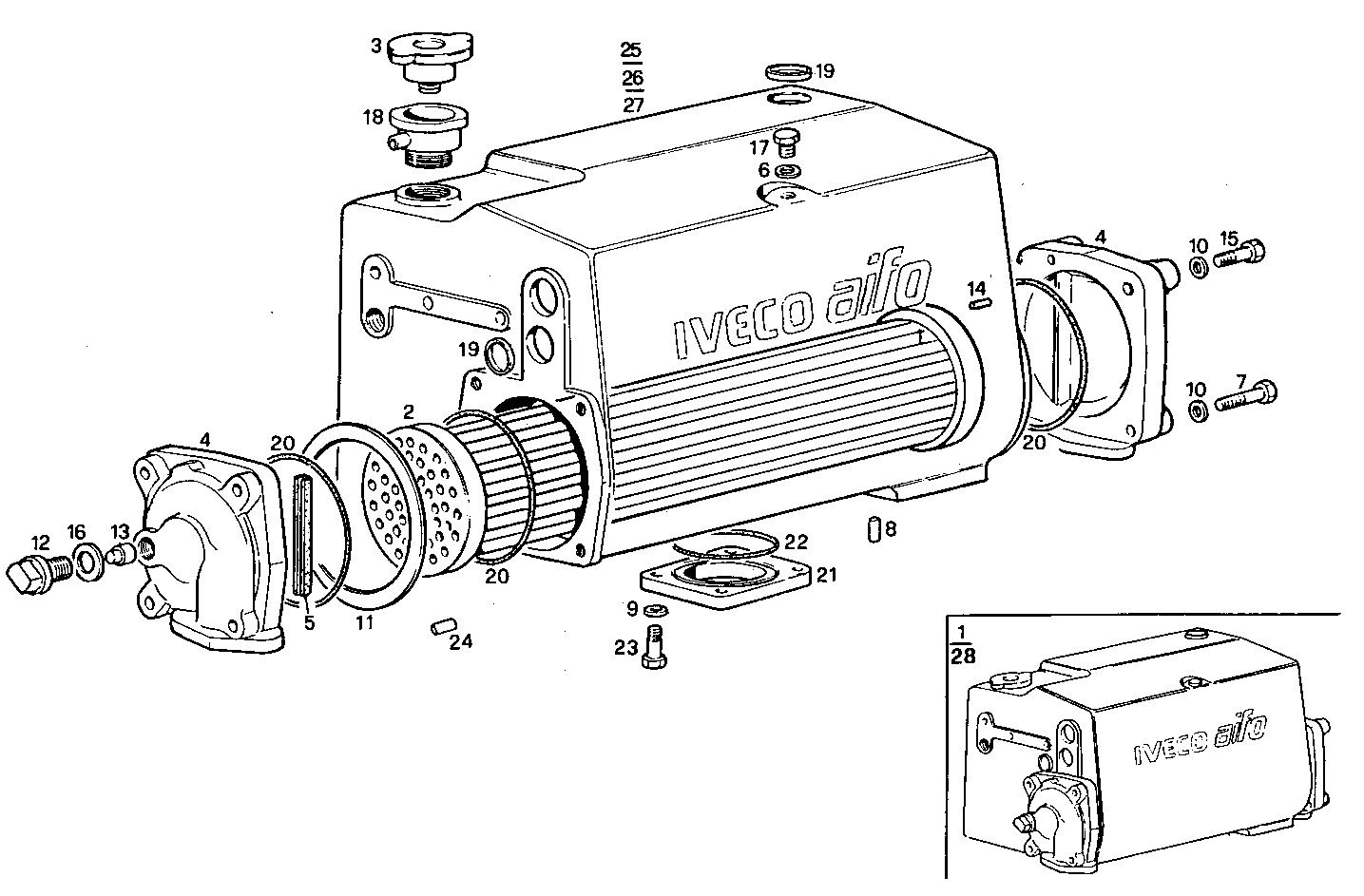

FRESH WATER - SEA WATER HEAT EXCHANGER
8281SRM70.11 — 8281SRM70
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8113894 | WATER/SEA WATER HEAT EXCH WATER/SEA WATER HEAT EXCH | 1 | |
| 2 | 8012070 | TUBE STACK TUBE STACK | 1 | |
| 3 | 4927808 | PLUG PLUG | 1 | |
| 4 | 8110977 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 2 | |
| 5 | 8110978 | GASKET GASKET | 2 | |
| 6 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 7 | 16606624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 17256970 | PIN PIN | 1 | |
| 9 | 17094914 | WASHER WASHER | 4 | |
| 10 | 17089774 | SPRING WASHER SPRING WASHER | 8 | |
| 11 | 8110989 | SPACING BAR SPACING BAR | 1 | |
| 12 | 8101771 | PLUG PLUG | 2 | |
| 13 | 8101772 | SACRIFICAL ANODE SACRIFICAL ANODE | 2 | |
| 14 | 8110971 | PIN PIN | 1 | |
| 15 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 16 | 10296260 | SEAL GASKET SEAL GASKET | 2 | |
| 17 | 16992340 | THREADED PLUG THREADED PLUG | 1 | |
| 18 | 4934521 | PIPE SOCKET PIPE SOCKET | 1 | |
| 19 | 16991370 | LOCK PLUG LOCK PLUG | 5 | |
| 20 | 17293181 | O-RING O-RING | 4 | |
| 21 | 8104925 | FLANGE FLANGE | 1 | |
| 22 | 17290781 | O-RING O-RING | 1 | |
| 23 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 24 | 17253770 | PIN PIN | 1 | |
| 25 | 8019164 | HEAT EXANGER BODY HEAT EXANGER BODY | 1 | |
| 26 | 8012068 | HEAT EXANGER BODY HEAT EXANGER BODY | 1 | |
| 27 | 8113895 | HEAT EXANGER BODY HEAT EXANGER BODY | 1 | |
| 28 | 8019163 | WATER/SEA WATER HEAT EXCH WATER/SEA WATER HEAT EXCH | 1 |
