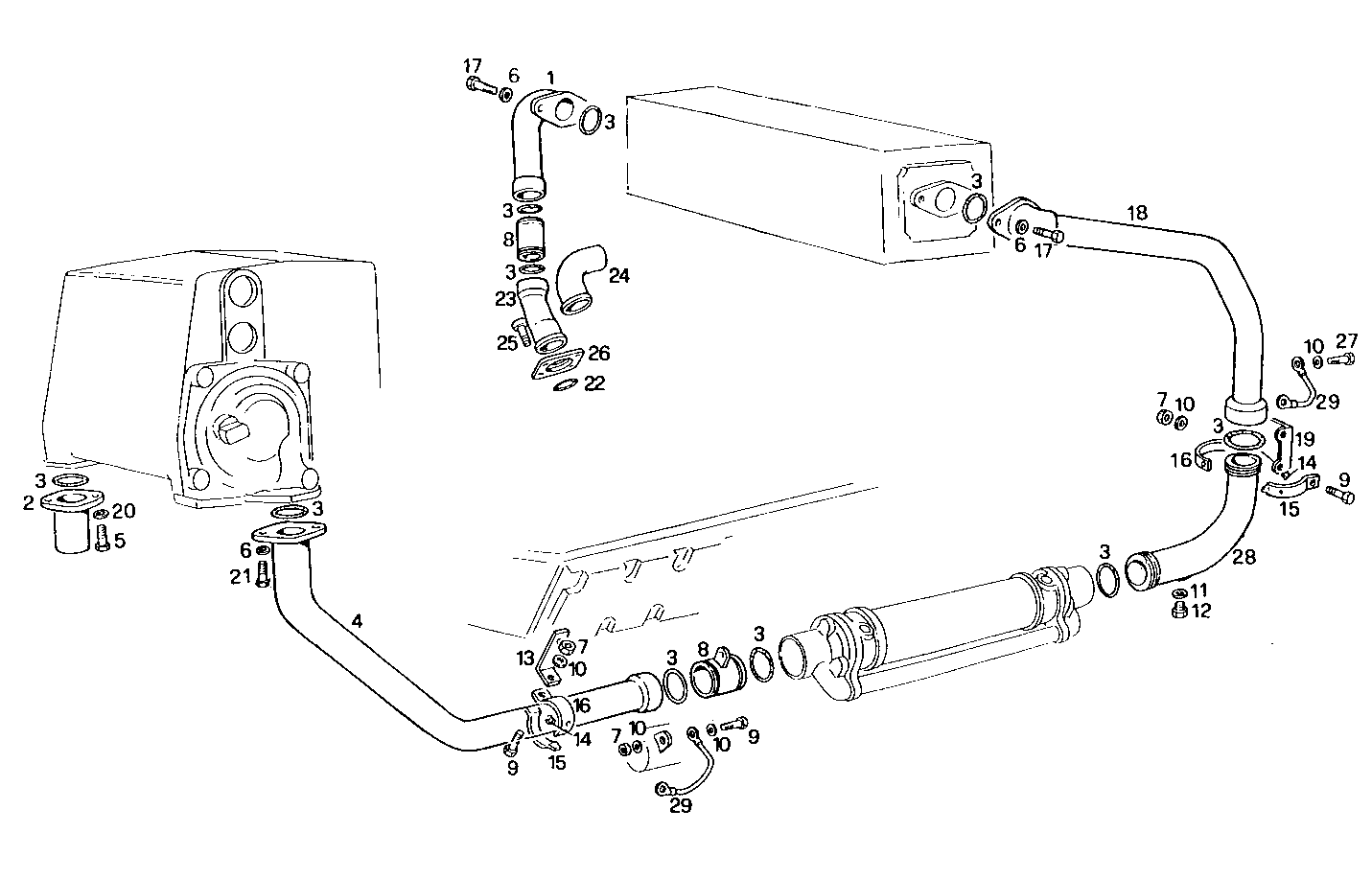

SEA WATER LINES
8281SRM70.11 — 8281SRM70
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8111560 | WATER PIPE WATER PIPE | 1 | |
| 2 | 8006215 | WATER PIPE WATER PIPE | 1 | |
| 3 | 17289981 | O-RING O-RING | 9 | |
| 4 | 8112478 | WATER PIPE WATER PIPE | 1 | |
| 5 | 14331121 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 2 | |
| 6 | 17091071 | SPRING WASHER SPRING WASHER | 6 | |
| 7 | 17037931 | HEXAGON NUT HEXAGON NUT | 5 | |
| 8 | 8112496 | CONNECTION CONNECTION | 2 | |
| 9 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 5 | |
| 10 | 17089474 | SPRING WASHER SPRING WASHER | 11 | |
| 11 | 4858606 | GASKET GASKET | 1 | |
| 12 | 11903140 | PLUG PLUG | 1 | |
| 13 | 8113297 | RETAINER RETAINER | 2 | |
| 14 | 1366290 | RUBBER PAD RUBBER PAD | 16 | |
| 15 | 8113295 | CLAMP CLAMP | 4 | |
| 16 | 8113296 | CLAMP CLAMP | 4 | |
| 17 | 16609824 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 18 | 8007488 | WATER PIPE WATER PIPE | 1 | |
| 19 | 8007518 | RETAINER RETAINER | 1 | |
| 20 | 17495034 | SPRING WASHER SPRING WASHER | 2 | |
| 21 | 15540421 | SCREW SCREW | 2 | |
| 22 | 17290281 | O-RING O-RING | 2 | |
| 23 | 8111432 | WATER PIPE WATER PIPE | 1 | |
| 24 | 8111431 | WATER PIPE WATER PIPE | 1 | |
| 25 | 16587124 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 26 | 8111433 | FLANGE FLANGE | 2 | |
| 27 | 16605424 | SCREW SCREW | 1 | |
| 28 | 8027108 | WATER PIPE WATER PIPE | 1 | |
| 29 | 8113786 | ENGINE HARNESS ENGINE HARNESS | 2 |
