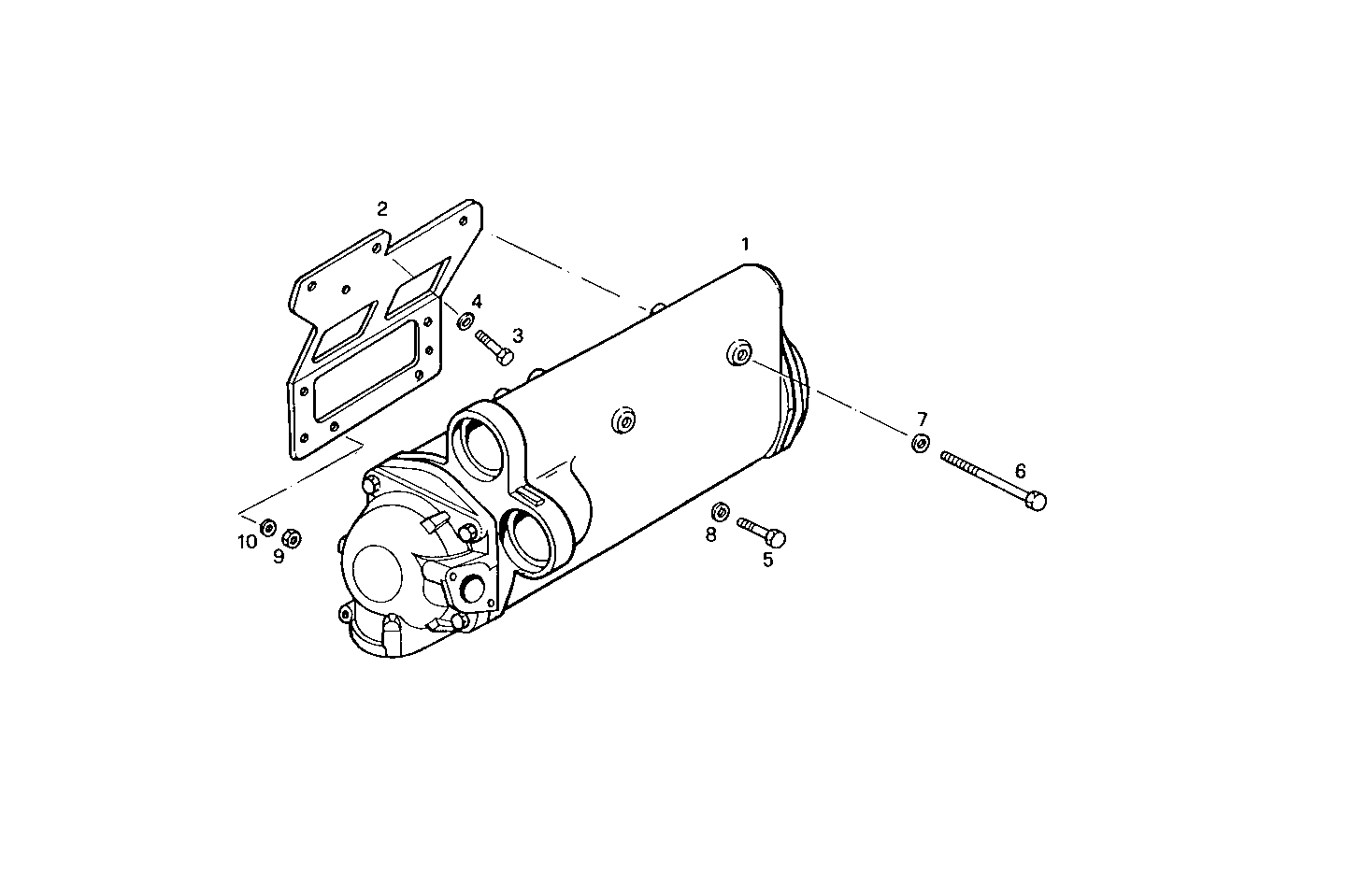

FRESH WATER - SEA WATER HEAT EXCHANGER
8281SRM70.12 — 8281SRM70
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8030126 | WATER/SEA WATER HEAT EXCH WATER/SEA WATER HEAT EXCH | 1 | |
| 2 | 8024585 | SUPPORT SUPPORT | 1 | |
| 3 | 16614624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 17092174 | SPRING WASHER SPRING WASHER | 2 | |
| 5 | 16612224 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 16163121 | SCREW SCREW | 2 | |
| 7 | 17091074 | WASHER WASHER | 2 | |
| 8 | 17091674 | WASHER WASHER | 2 | |
| 9 | 17037931 | HEXAGON NUT HEXAGON NUT | 4 | |
| 10 | 17089574 | WASHER WASHER | 4 |
