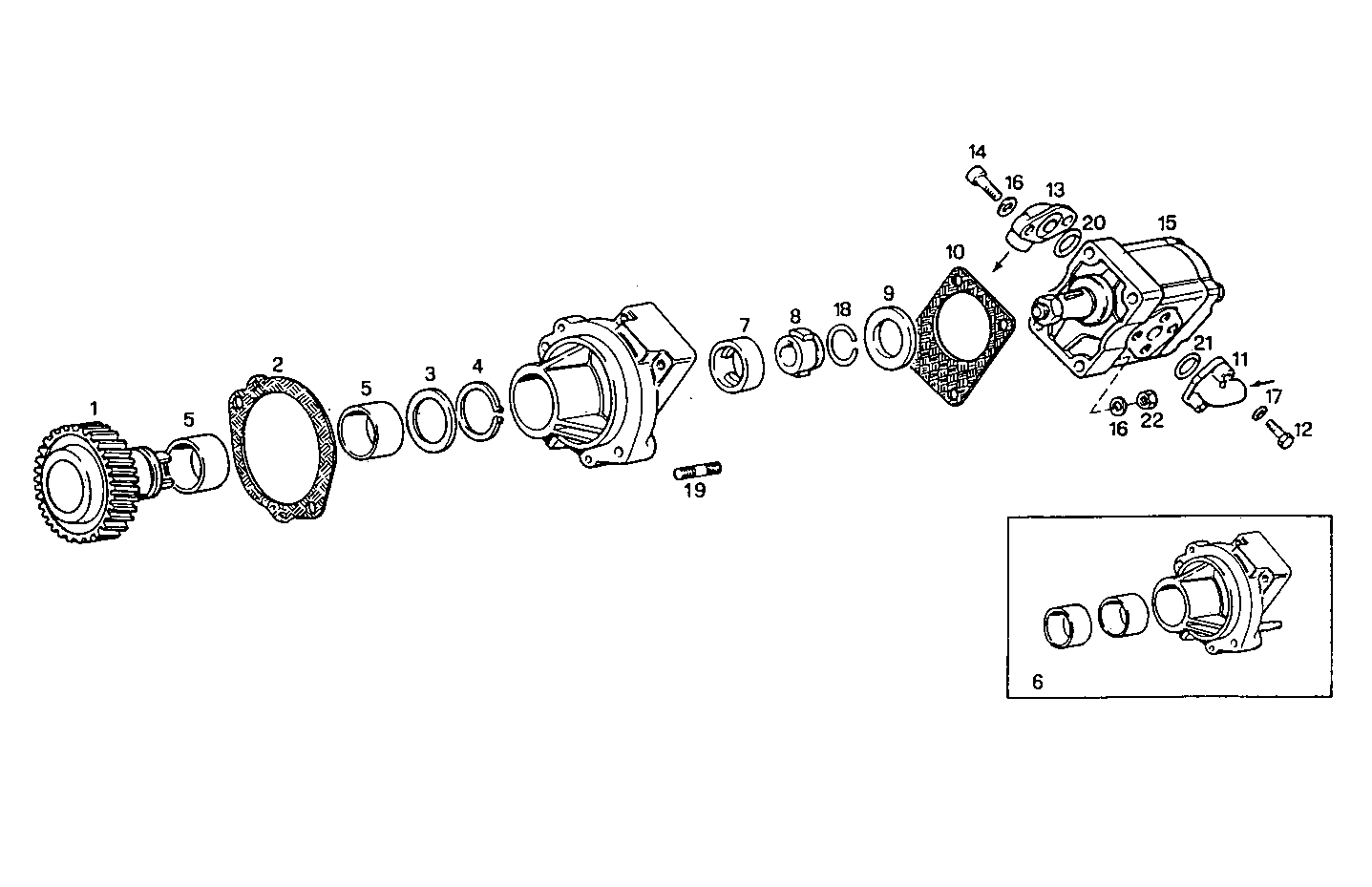

FRONT HYDRAULIC PUMP
8281SRM70.30 — 8281SRM70
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4714562 | DRIVE GEAR DRIVE GEAR | 1 | |
| 2 | 4863534 | GASKET GASKET | 1 | |
| 3 | 4699280 | RING RING | 1 | |
| 4 | 4571854 | CIRCLIP CIRCLIP | 1 | |
| 5 | 4692781 | CENTERING BUSH CENTERING BUSH | 2 | |
| 6 | 4686655 | SUPPORT SUPPORT | 1 | |
| 7 | 4621358 | RING RING | 1 | |
| 8 | 8011614 | HUB HUB | 1 | |
| 9 | 4677821 | RING RING | 1 | |
| 10 | 4863489 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 11 | 4690715 | PIPE SOCKET PIPE SOCKET | 1 | |
| 12 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 13 | 4670953 | PIPE SOCKET PIPE SOCKET | 1 | |
| 14 | 16603924 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 15 | 5129486 | HAND PUMP HAND PUMP | 1 | |
| 16 | 17088474 | WASHER WASHER | 6 | |
| 17 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 18 | 17082776 | SPRING LOCKWASHER SPRING LOCKWASHER | 1 | |
| 19 | 16745224 | STUD STUD | 4 | |
| 20 | 17281781 | O-RING O-RING | 1 | |
| 21 | 17282181 | O-RING O-RING | 1 | |
| 22 | 17037821 | HEXAGON NUT HEXAGON NUT | 4 |
