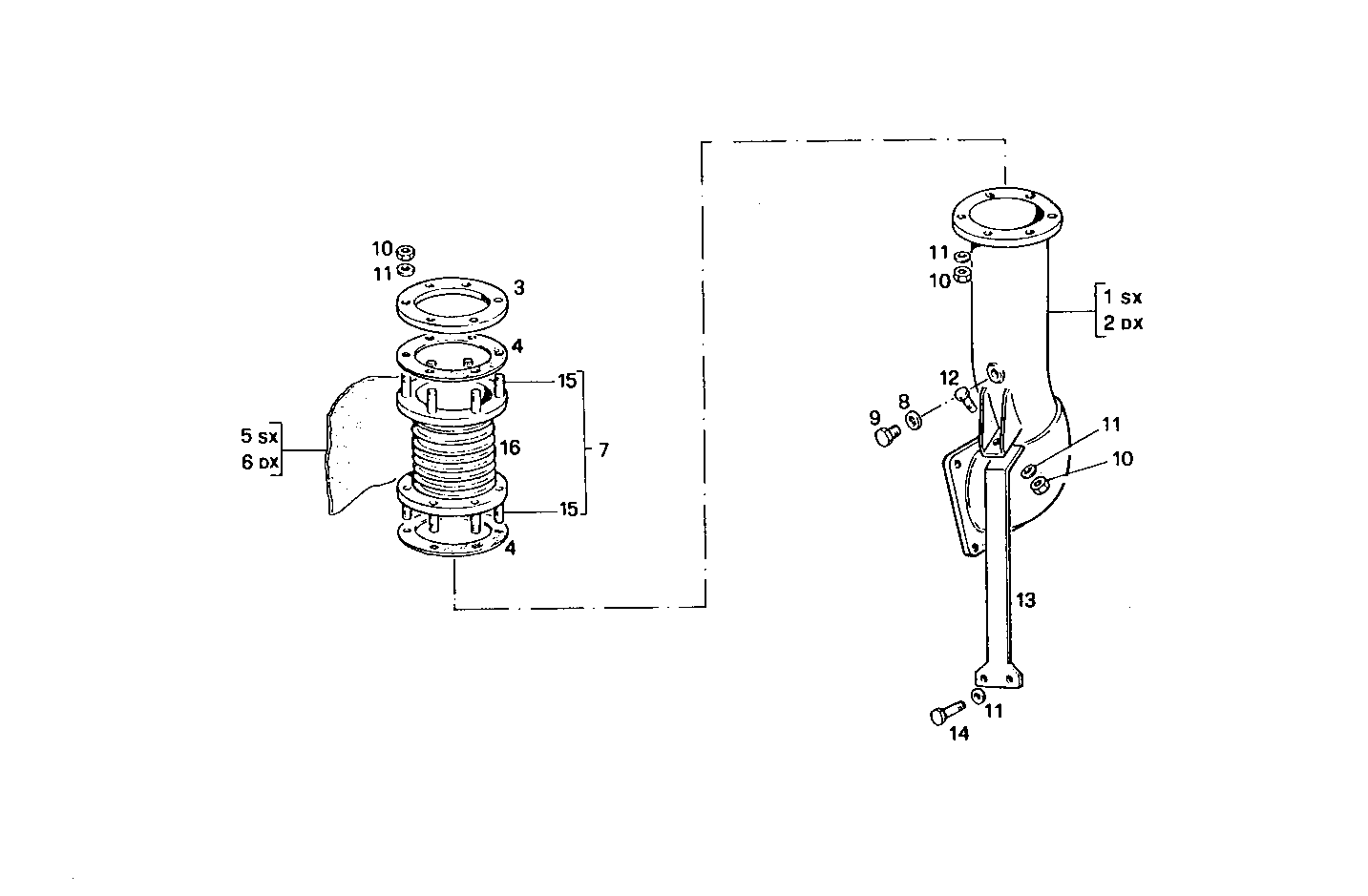

UPWARD REAR EXHAUST ELBOW
8281SRM70.30 — 8281SRM70
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8110580 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 2 | 8110581 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 3 | 8103591 | FLANGE FLANGE | 2 | |
| 4 | 8009600 | GASKET GASKET | 4 | |
| 5 | 8104111 | PROTECTION PROTECTION | 1 | |
| 6 | 8104112 | PROTECTION PROTECTION | 1 | |
| 7 | 8024909 | EXHAUST BELLOWS EXHAUST BELLOWS | 2 | |
| 8 | 4858607 | WASHER WASHER | 2 | |
| 9 | 16992211 | THREADED PLUG THREADED PLUG | 2 | |
| 10 | 17038121 | HEXAGON NUT HEXAGON NUT | 26 | |
| 11 | 17090174 | SPRING WASHER SPRING WASHER | 30 | |
| 12 | 16607524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 13 | 8106127 | RETAINER RETAINER | 2 | |
| 14 | 15970621 | SCREW SCREW | 4 | |
| 15 | 16731234 | STUD STUD | 12 | |
| 16 | 8024880 | EXHAUST BELLOWS EXHAUST BELLOWS | 2 |
