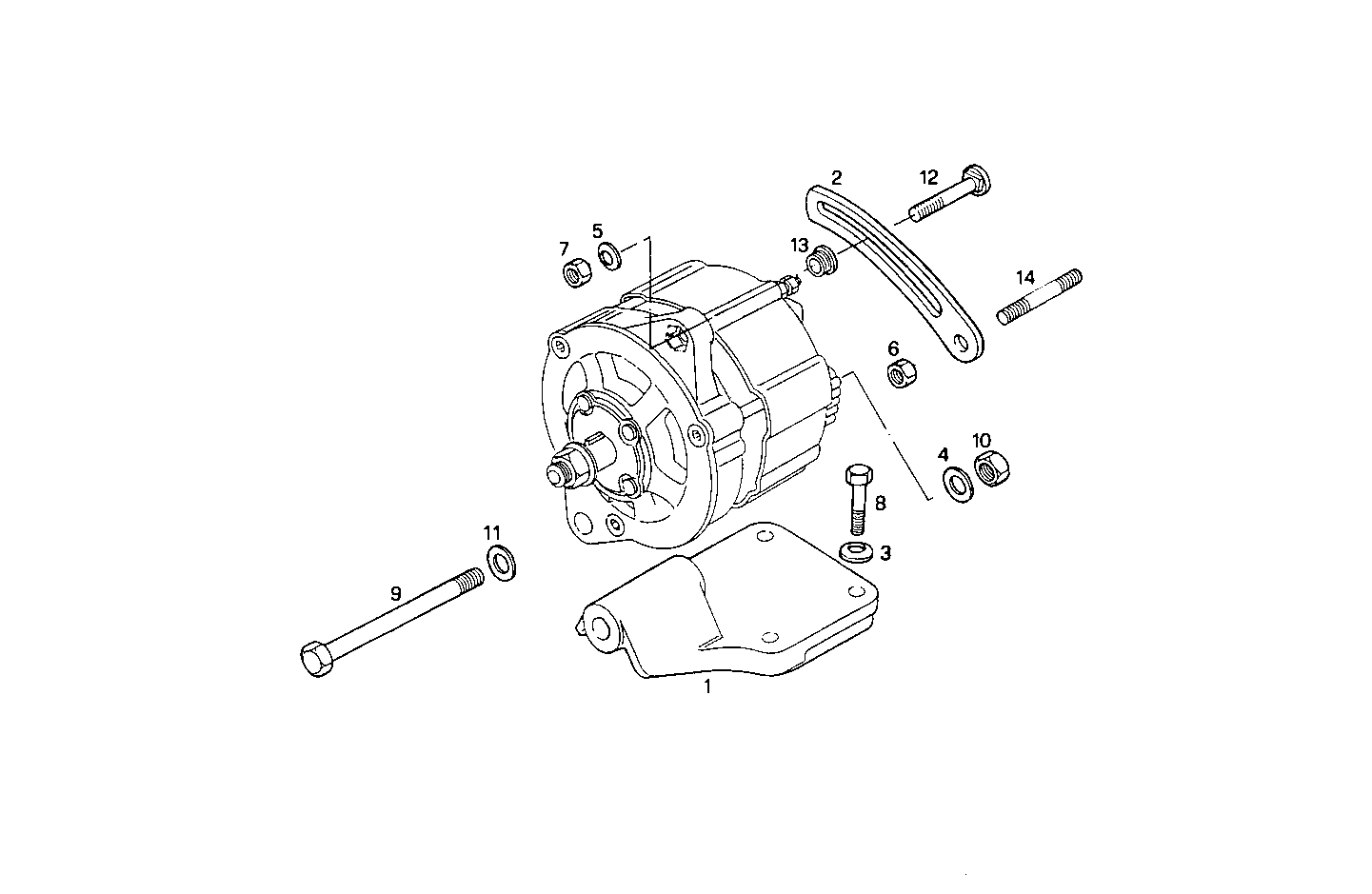

MOUNT
8281SRM70.40 — 8281SRM70
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98418153 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 2 | 4763084 | BRACE/STRUT BRACE/STRUT | 1 | |
| 3 | 11190679 | SPRING WASHER SPRING WASHER | 4 | |
| 4 | 11190779 | SPRING WASHER SPRING WASHER | 1 | |
| 5 | 11190579 | SPRING WASHER SPRING WASHER | 1 | |
| 6 | 12574511 | NUT NUT | 1 | |
| 7 | 12164711 | HEXAGON NUT HEXAGON NUT | 1 | |
| 8 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 9 | 15541821 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 16101511 | HEXAGON NUT HEXAGON NUT | 1 | |
| 11 | 12646901 | WASHER WASHER | 1 | |
| 12 | 4799044 | THREADED PIN THREADED PIN | 1 | |
| 13 | 4677044 | SPACING BAR SPACING BAR | 1 | |
| 14 | 13449321 | STUD STUD | 1 |
