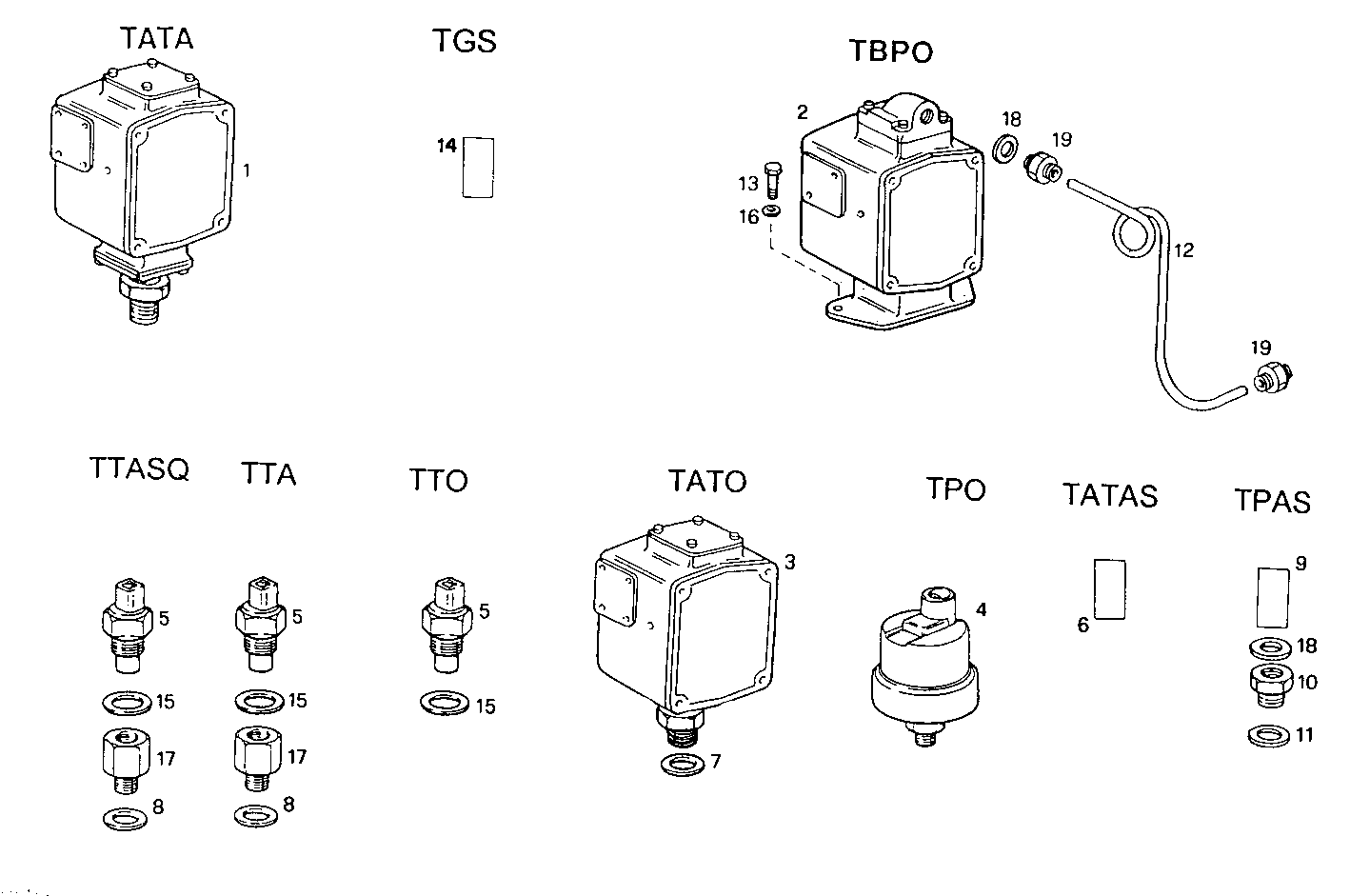

SENDER UNITS FOR INSTRUMENTS
8291SRG75.10A500 — 8291SRG75
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8110742 | TRANSMITTER TRANSMITTER | 1 | |
| 2 | 8110741 | TRANSMITTER TRANSMITTER | 1 | |
| 3 | 8111450 | TRANSMITTER TRANSMITTER | 1 | |
| 4 | 8100563 | TRANSMITTER TRANSMITTER | 1 | |
| 5 | 4933019 | TRANSMITTER TRANSMITTER | 3 | |
| 6 | 8023756 | TRANSMITTER TRANSMITTER | 1 | |
| 7 | 11271460 | GASKET GASKET | 1 | |
| 8 | 10263460 | WASHER WASHER | 2 | |
| 9 | 8024371 | TRANSMITTER TRANSMITTER | 1 | |
| 10 | 4881606 | PIPE SOCKET PIPE SOCKET | 1 | |
| 11 | 4858610 | WASHER WASHER | 1 | |
| 12 | 8024896 | HOSE HOSE | 1 | |
| 13 | 16603524 | SCREW SCREW | 2 | |
| 14 | 8022117 | TRANSMITTER TRANSMITTER | 2 | |
| 15 | 4858609 | WASHER WASHER | 3 | |
| 16 | 17088474 | WASHER WASHER | 2 | |
| 17 | 4919578 | PIPE SOCKET PIPE SOCKET | 2 | |
| 18 | 4858606 | GASKET GASKET | 2 | |
| 19 | 16500011 | PIPE SOCKET PIPE SOCKET | 2 |
