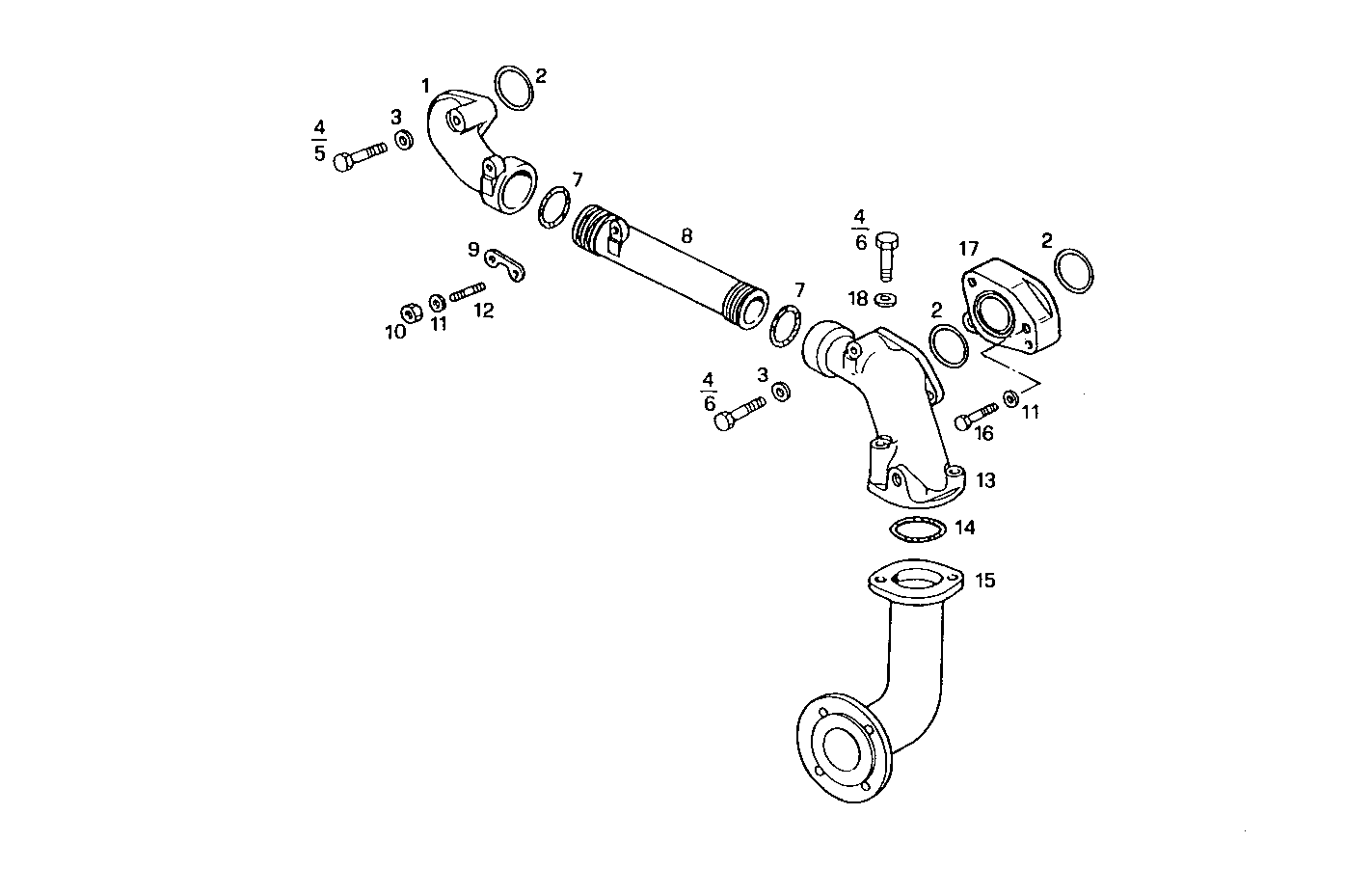

WATER LINES
8291SRG75.10A500 — 8291SRG75
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8019780 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 2 | 17283981 | O-RING O-RING | 3 | |
| 3 | 17094914 | WASHER WASHER | 2 | |
| 4 | 16606524 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 5 | 16606624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 7 | 17289981 | O-RING O-RING | 4 | |
| 8 | 8019730 | WATER PIPE WATER PIPE | 1 | |
| 9 | 8019781 | PLATE PLATE | 2 | |
| 10 | 17037931 | HEXAGON NUT HEXAGON NUT | 4 | |
| 11 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 12 | 16729224 | STUD STUD | 4 | |
| 13 | 8029610 | WATER PIPE WATER PIPE | 1 | |
| 14 | 17290581 | O-RING O-RING | 1 | |
| 15 | 8029646 | WATER PIPE WATER PIPE | 1 | |
| 16 | 16690924 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 2 | |
| 17 | 8019727 | FLANGE FLANGE | 1 | |
| 18 | 17089774 | SPRING WASHER SPRING WASHER | 2 |
