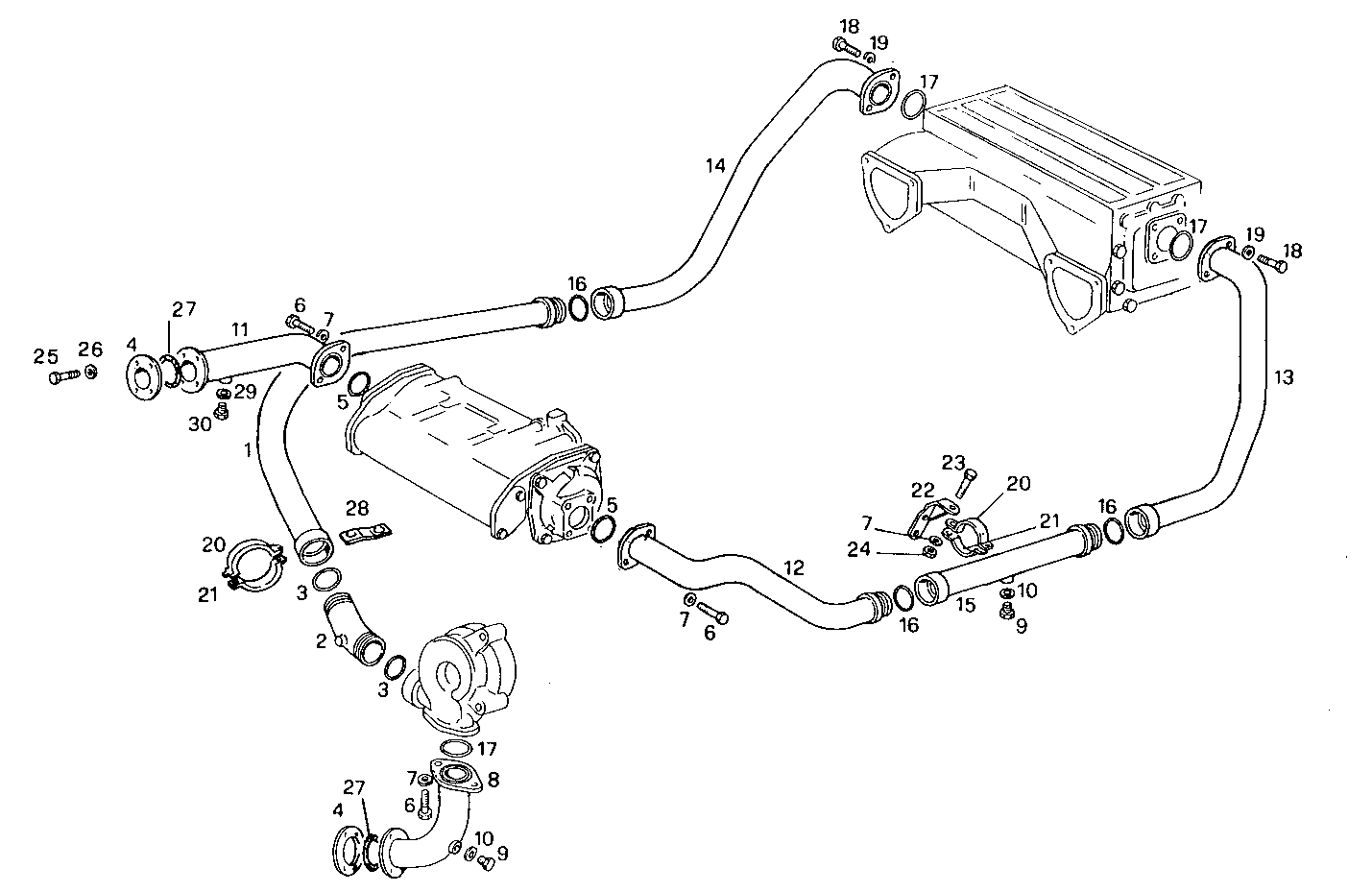

AUXILIARY WATER LINES
8291SRG75.10A510 — 8291SRG75
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8023375 | WATER PIPE WATER PIPE | 1 | |
| 2 | 8012824 | WATER PIPE WATER PIPE | 1 | |
| 3 | 17284381 | O-RING O-RING | 4 | |
| 4 | 8018582 | FLANGE FLANGE | 2 | |
| 5 | 17290481 | O-RING O-RING | 2 | |
| 6 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 7 | 17089474 | SPRING WASHER SPRING WASHER | 11 | |
| 8 | 8020188 | WATER PIPE WATER PIPE | 1 | |
| 9 | 16992440 | THREADED PLUG THREADED PLUG | 2 | |
| 10 | 4858609 | WASHER WASHER | 2 | |
| 11 | 8023380 | WATER PIPE WATER PIPE | 1 | |
| 12 | 8023379 | WATER PIPE WATER PIPE | 1 | |
| 13 | 8023377 | WATER PIPE WATER PIPE | 1 | |
| 14 | 8023376 | WATER PIPE WATER PIPE | 1 | |
| 15 | 8023378 | WATER PIPE WATER PIPE | 1 | |
| 16 | 17290181 | O-RING O-RING | 6 | |
| 17 | 17290281 | O-RING O-RING | 3 | |
| 18 | 16607624 | SCREW SCREW | 4 | |
| 19 | 17090174 | SPRING WASHER SPRING WASHER | 4 | |
| 20 | 8017810 | CLAMP CLAMP | 5 | |
| 21 | 8017811 | CLAMP CLAMP | 5 | |
| 22 | 8013983 | RETAINER RETAINER | 4 | |
| 23 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 5 | |
| 24 | 17037931 | HEXAGON NUT HEXAGON NUT | 5 | |
| 25 | 16693724 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 8 | |
| 26 | 17495034 | SPRING WASHER SPRING WASHER | 8 | |
| 27 | 17290581 | O-RING O-RING | 2 | |
| 28 | 8006219 | RETAINER RETAINER | 1 | |
| 29 | 10263460 | WASHER WASHER | 1 | |
| 30 | 16992640 | PLUG PLUG | 1 |
