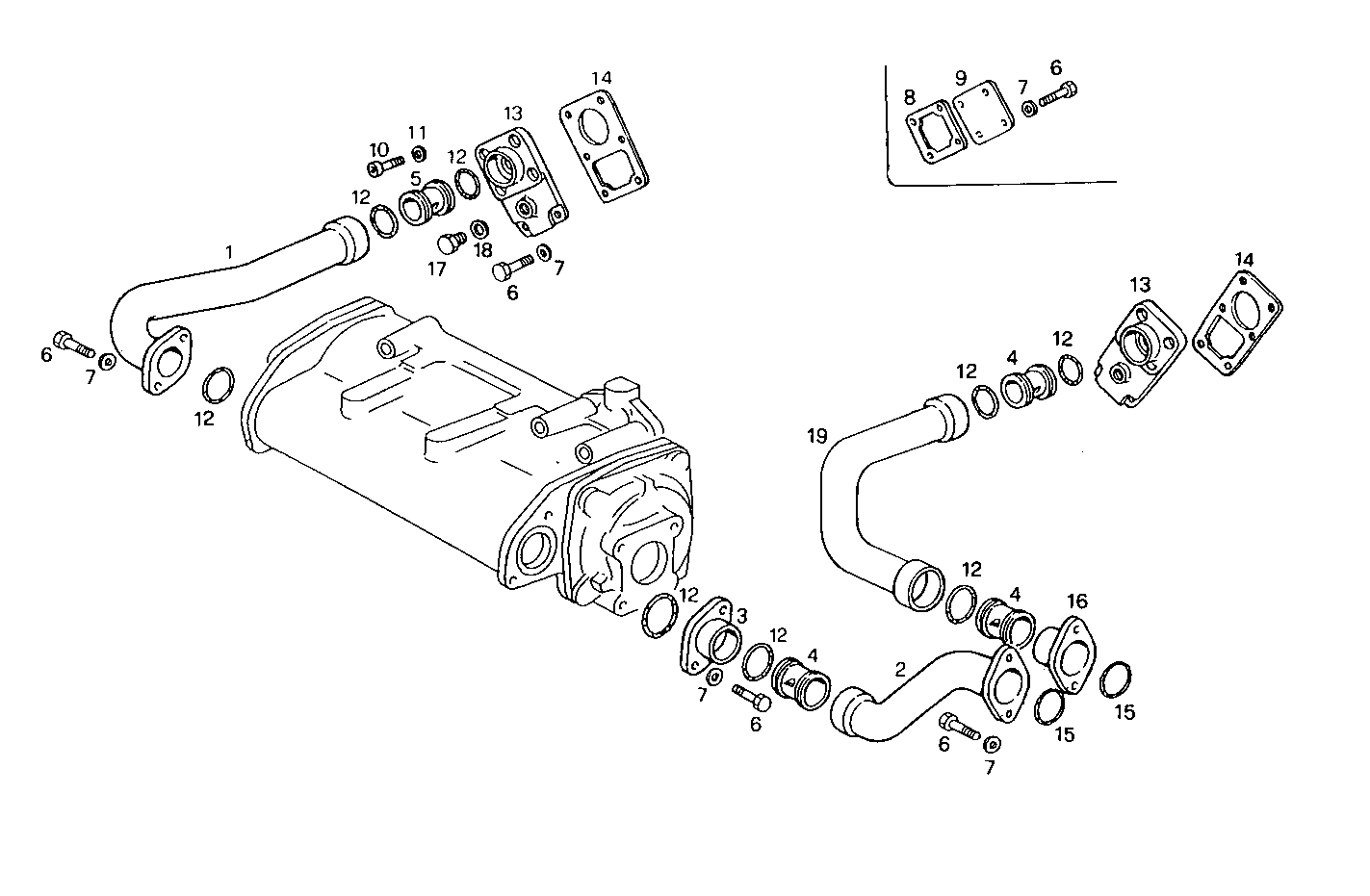

WATER LINES
8291SRG85.10 — 8291SRG85
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8009593 | WATER PIPE WATER PIPE | 1 | |
| 2 | 8020812 | WATER PIPE WATER PIPE | 1 | |
| 3 | 8009632 | FLANGE FLANGE | 1 | |
| 4 | 8009637 | WATER PIPE WATER PIPE | 1 | |
| 5 | 8112496 | CONNECTION CONNECTION | 1 | |
| 6 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 18 | |
| 7 | 17089474 | SPRING WASHER SPRING WASHER | 18 | |
| 8 | 8105608 | GASKET GASKET | 2 | |
| 9 | 8107612 | COVER COVER | 2 | |
| 10 | 16690724 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 8 | |
| 11 | 17101534 | SPRING WASHER SPRING WASHER | 8 | |
| 12 | 17289981 | O-RING O-RING | 8 | |
| 13 | 8009895 | WATER PIPE WATER PIPE | 2 | |
| 14 | 8101855 | GASKET GASKET | 2 | |
| 15 | 17284981 | O-RING O-RING | 2 | |
| 16 | 8014082 | FLANGE FLANGE | 1 | |
| 17 | 16992340 | THREADED PLUG THREADED PLUG | 2 | |
| 18 | 4858608 | SEAL GASKET SEAL GASKET | 2 | |
| 19 | 8020813 | WATER PIPE WATER PIPE | 1 |
