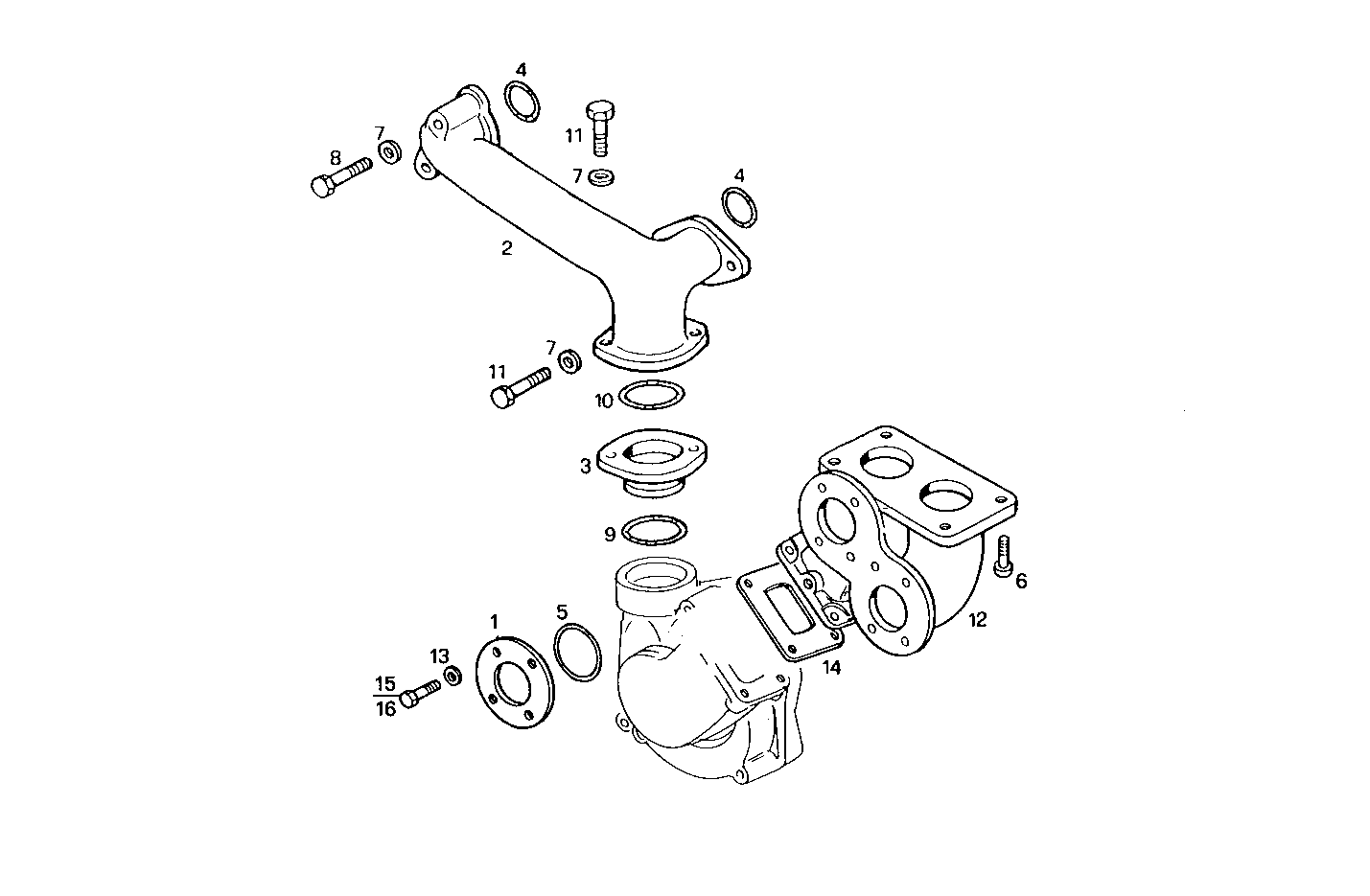

WATER LINES
8291SRG85.10 — 8291SRG85
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8018581 | FLANGE FLANGE | 2 | |
| 2 | 4882527 | WATER PIPE WATER PIPE | 1 | |
| 3 | 8026630 | FLANGE FLANGE | 1 | |
| 4 | 17283981 | O-RING O-RING | 2 | |
| 5 | 17290581 | O-RING O-RING | 2 | |
| 6 | 98401723 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 7 | 17094914 | WASHER WASHER | 4 | |
| 8 | 16606624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 17296381 | O-RING O-RING | 1 | |
| 10 | 17290581 | O-RING O-RING | 1 | |
| 11 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 12 | 8013446 | WATER CONVEYOR WATER CONVEYOR | 1 | |
| 13 | 17495034 | SPRING WASHER SPRING WASHER | 6 | |
| 14 | 8010667 | GASKET GASKET | 1 | |
| 15 | 16693724 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 6 | |
| 16 | 16695024 | SCREW SCREW | 2 |
