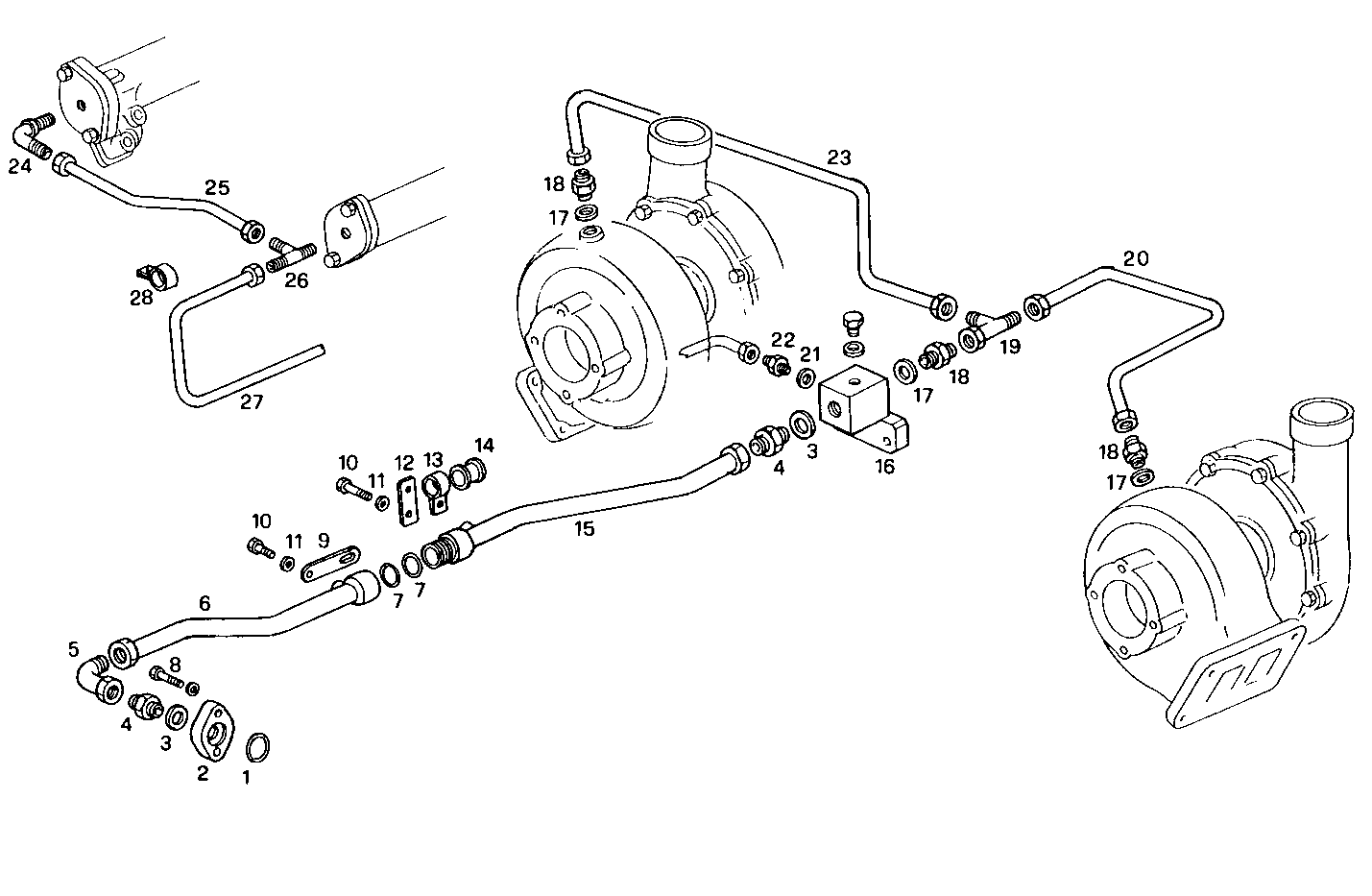

WATER LINES

8291SRG85.10 — 8291SRG85

Parts List

#	Part No	Name / Description	Qty
1	17289481	O-RING O-RING	1
2	8023572	FLANGE FLANGE	1
3	16528060	WASHER WASHER	2
4	16527914	PIPE SOCKET PIPE SOCKET	2
5	16581714	PIPE SOCKET PIPE SOCKET	1
6	8023571	WATER PIPE WATER PIPE	1
7	17282781	O-RING O-RING	2
8	16690624	CYLIND-HEAD SCREW CYLIND-HEAD SCREW	2
9	8026580	RETAINER RETAINER	1
10	16605524	HEXAGON BOLT HEXAGON BOLT	3
11	17089474	SPRING WASHER SPRING WASHER	3
12	8023573	RETAINER RETAINER	1
13	4621091	CLIP CLIP	1
14	4626901	CLIP CLIP	1
15	8023568	WATER PIPE WATER PIPE	1
16	8023388	CHOCK CHOCK	1
17	98429282	SEAL GASKET SEAL GASKET	3
18	8110943	PIPE SOCKET PIPE SOCKET	3
19	16545011	T-COUPLING T-COUPLING	1
20	8022521	WATER PIPE WATER PIPE	1
21	4858607	WASHER WASHER	1
22	16500114	THREADED UNION THREADED UNION	1
23	8022522	WATER PIPE WATER PIPE	1
24	8112247	PIPE SOCKET PIPE SOCKET	1
25	8011148	WATER PIPE WATER PIPE	1
26	8112120	PIPE SOCKET PIPE SOCKET	1
27	8022525	WATER PIPE WATER PIPE	1
28	17316390	CLIP CLIP	1
