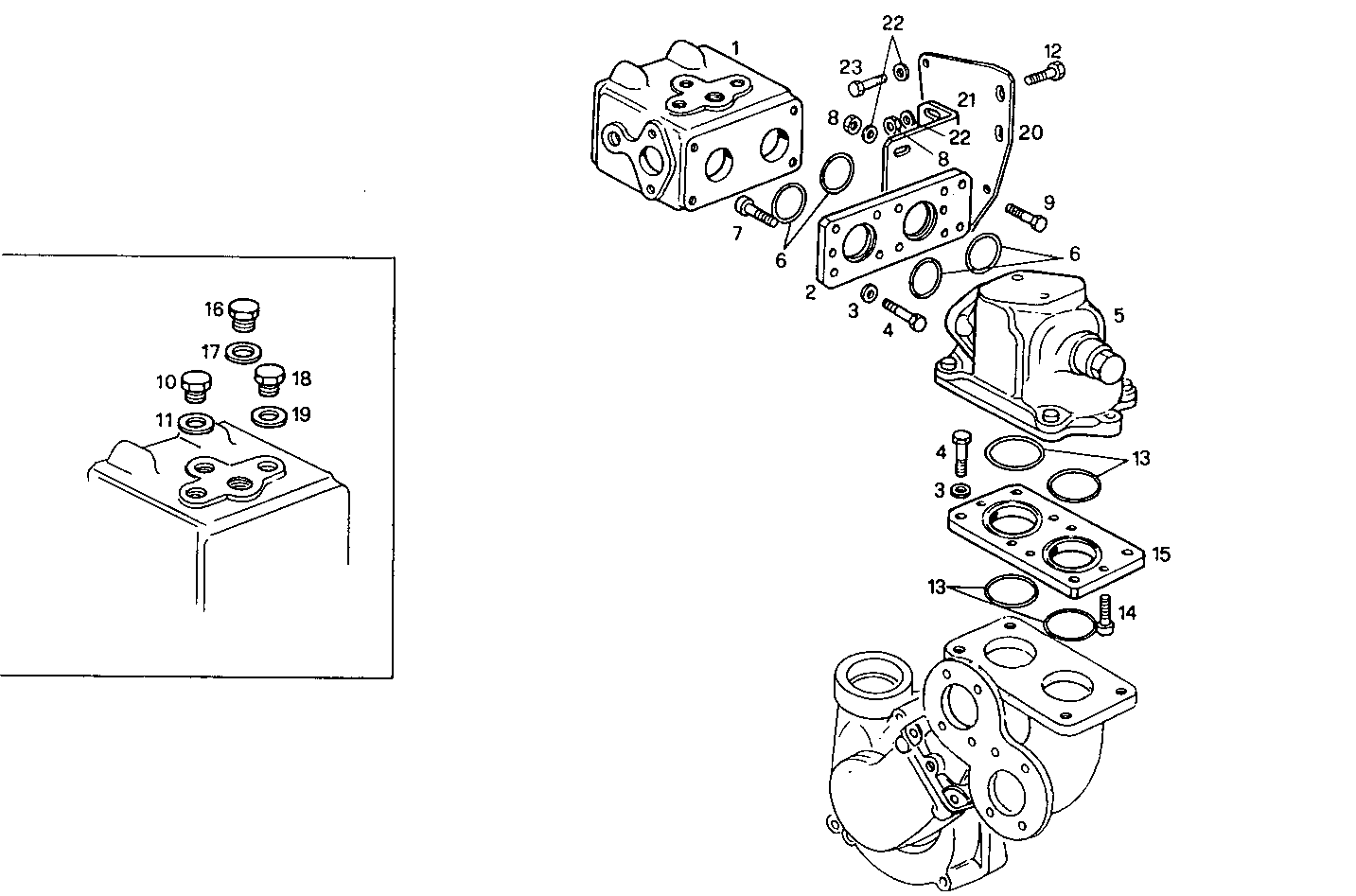

THERMOSTAT
8291SRG85.10A500 — 8291SRG85
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8013498 | WATER CONVEYOR WATER CONVEYOR | 1 | |
| 2 | 8017514 | FLANGE FLANGE | 1 | |
| 3 | 17095104 | WASHER WASHER | 8 | |
| 4 | 16607824 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 5 | 8006402 | THERMOSTAT THERMOSTAT | 1 | |
| 6 | 17283581 | O-RING O-RING | 4 | |
| 7 | 16690524 | SCREW SCREW | 6 | |
| 8 | 17038121 | HEXAGON NUT HEXAGON NUT | 4 | |
| 9 | 16607924 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 4858394 | PLUG PLUG | 1 | |
| 11 | 11271460 | GASKET GASKET | 2 | |
| 12 | 16607624 | SCREW SCREW | 2 | |
| 13 | 17285181 | O-RING O-RING | 4 | |
| 14 | 14307321 | SCREW SCREW | 6 | |
| 15 | 8007161 | FLANGE FLANGE | 1 | |
| 16 | 16992440 | THREADED PLUG THREADED PLUG | 1 | |
| 17 | 4858609 | WASHER WASHER | 1 | |
| 18 | 16993440 | PLUG PLUG | 2 | |
| 19 | 10263460 | WASHER WASHER | 2 | |
| 20 | 8017512 | PLATE PLATE | 1 | |
| 21 | 8017513 | RETAINER RETAINER | 1 | |
| 22 | 17090174 | SPRING WASHER SPRING WASHER | 7 | |
| 23 | 11306921 | SCREW SCREW | 3 |
