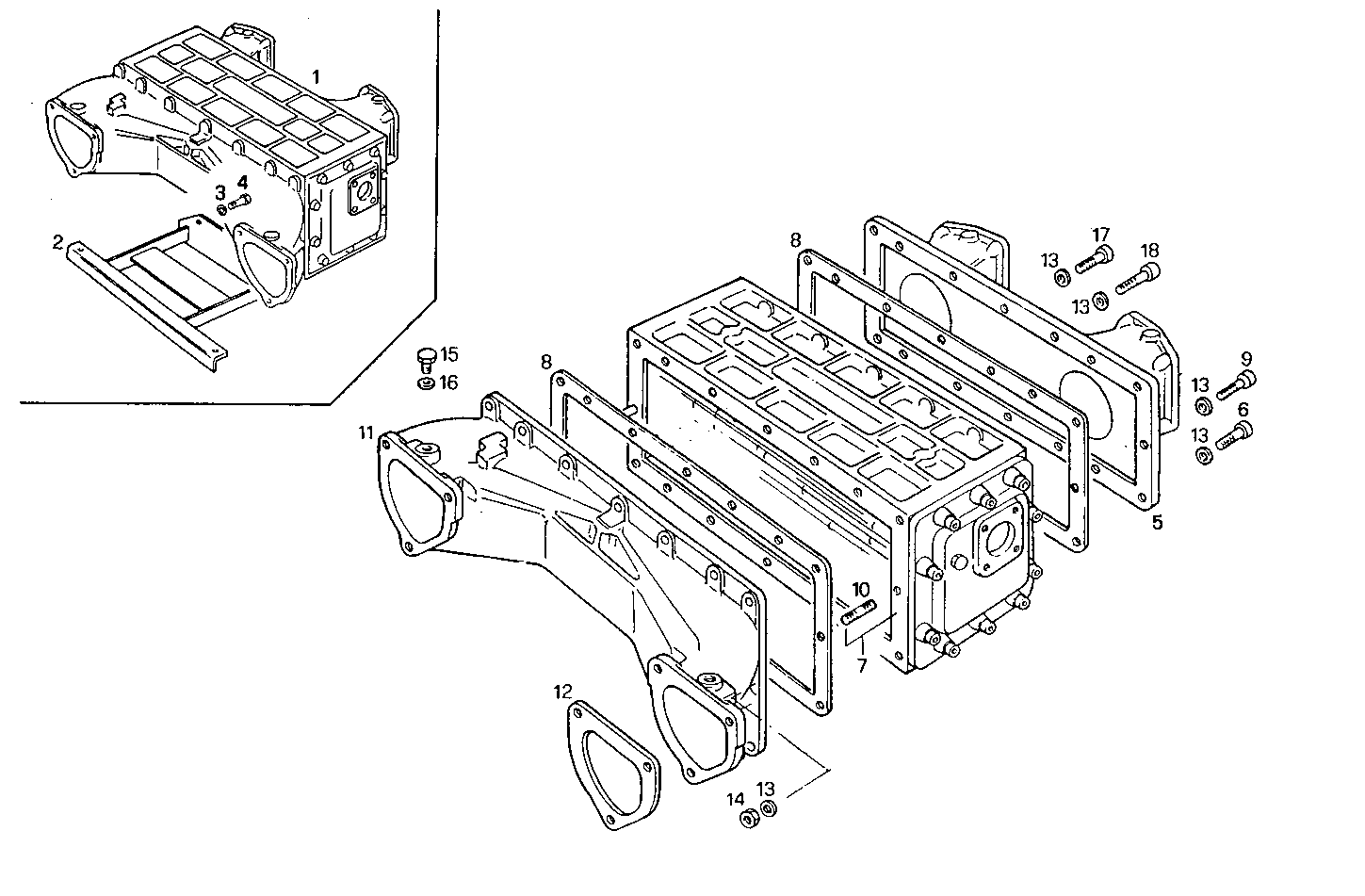

AIR - WATER HEAT EXCHANGER
8291SRi15.00 — 8291SRi15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8017613 | AIR/WATER HEAT EXCHANGER AIR/WATER HEAT EXCHANGER | 1 | |
| 2 | 8015818 | RETAINER RETAINER | 1 | |
| 3 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 4 | 16607624 | SCREW SCREW | 2 | |
| 5 | 8105947 | AIR HOOD AIR HOOD | 1 | |
| 6 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 7 | |
| 7 | 8014032 | HEAT EXANGER BODY HEAT EXANGER BODY | 1 | |
| 8 | 8008906 | GASKET GASKET | 2 | |
| 9 | 16606024 | SCREW SCREW | 2 | |
| 10 | 16729324 | STUD STUD | 2 | |
| 11 | 8016672 | AIR HOOD AIR HOOD | 1 | |
| 12 | 4786886 | GASKET GASKET | 2 | |
| 13 | 17094904 | WASHER WASHER | 29 | |
| 14 | 17037921 | NUT NUT | 2 | |
| 15 | 10304911 | THREADED PLUG THREADED PLUG | 2 | |
| 16 | 98429280 | SEAL GASKET SEAL GASKET | 2 | |
| 17 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 18 | 16605724 | SCREW SCREW | 14 |
