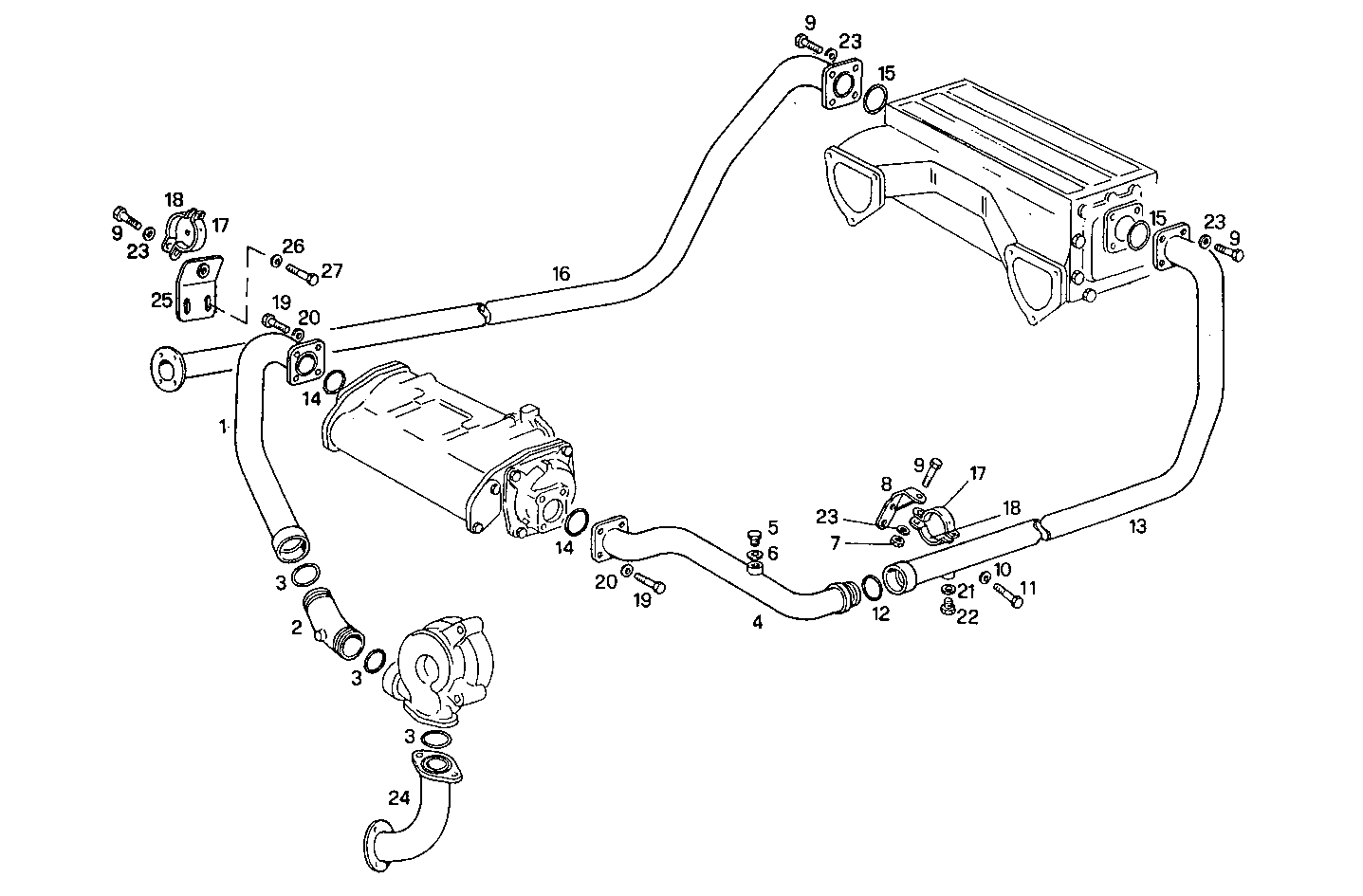

AUXILIARY WATER LINES
8291SRi15.00 — 8291SRi15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8012910 | SEA WATER PIPE SEA WATER PIPE | 1 | |
| 2 | 8012824 | WATER PIPE WATER PIPE | 1 | |
| 3 | 17284381 | O-RING O-RING | 4 | |
| 4 | 8016462 | WATER PIPE WATER PIPE | 1 | |
| 5 | 16992440 | THREADED PLUG THREADED PLUG | 1 | |
| 6 | 4858609 | WASHER WASHER | 1 | |
| 7 | 17038121 | HEXAGON NUT HEXAGON NUT | 3 | |
| 8 | 8016464 | RETAINER RETAINER | 2 | |
| 9 | 16607624 | SCREW SCREW | 11 | |
| 10 | 17091674 | WASHER WASHER | 2 | |
| 11 | 15976821 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 17290181 | O-RING O-RING | 2 | |
| 13 | 8016463 | WATER PIPE WATER PIPE | 1 | |
| 14 | 17290481 | O-RING O-RING | 2 | |
| 15 | 17290281 | O-RING O-RING | 2 | |
| 16 | 8016363 | WATER PIPE WATER PIPE | 1 | |
| 17 | 8017810 | CLAMP CLAMP | 3 | |
| 18 | 8017811 | CLAMP CLAMP | 3 | |
| 19 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 10 | |
| 20 | 17089474 | SPRING WASHER SPRING WASHER | 10 | |
| 21 | 11271460 | GASKET GASKET | 1 | |
| 22 | 4584394 | PLUG PLUG | 1 | |
| 23 | 17090174 | SPRING WASHER SPRING WASHER | 11 | |
| 24 | 8016394 | WATER PIPE WATER PIPE | 1 | |
| 25 | 8018803 | RETAINER RETAINER | 1 | |
| 26 | 17091374 | SPRING WASHER SPRING WASHER | 2 | |
| 27 | 15540324 | SCREW SCREW | 2 |
