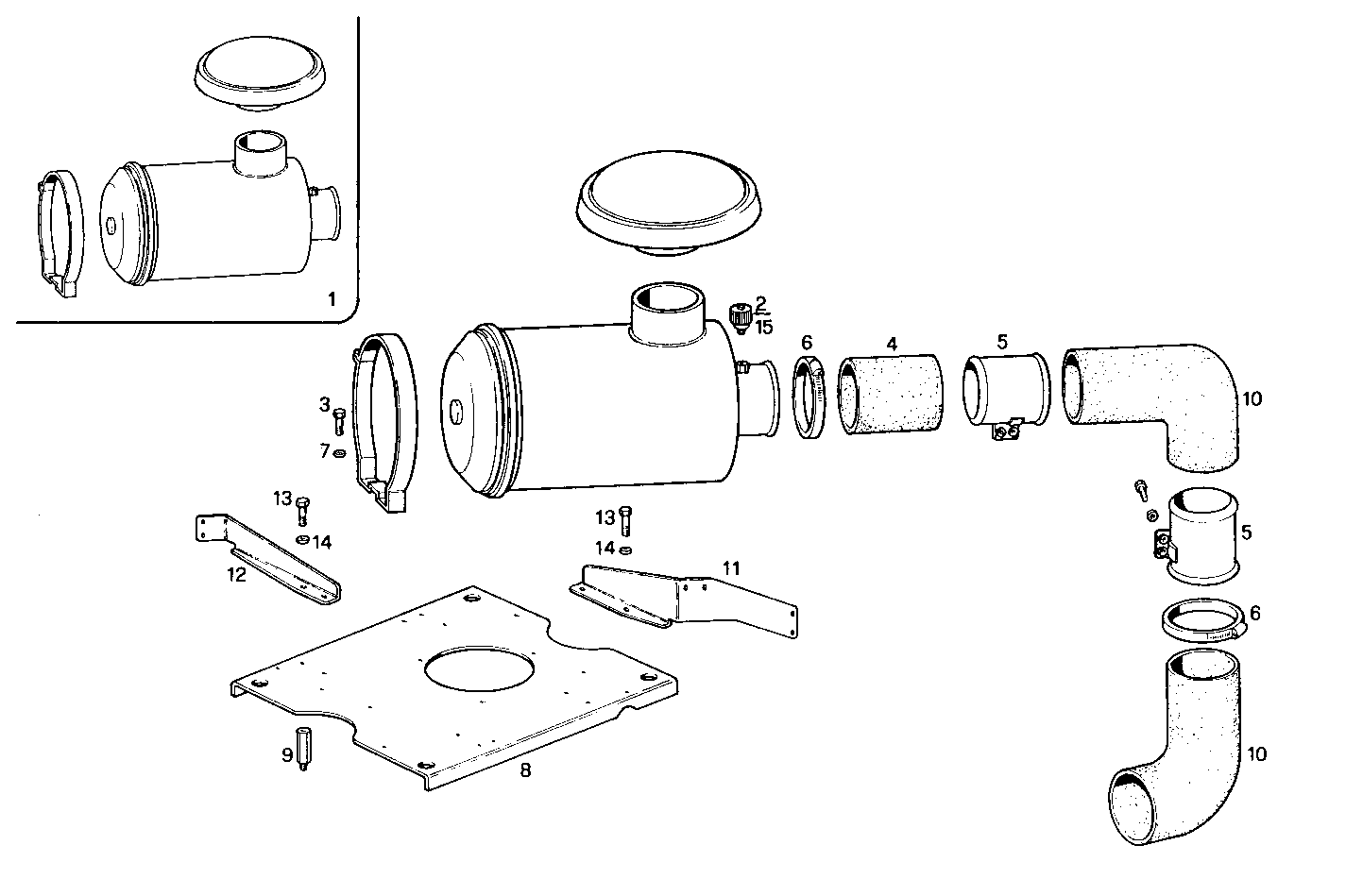

DRY AIR CLEANER
8291SRi15.00 — 8291SRi15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8016974 | AIR CLEANER AIR CLEANER | 2 | |
| 2 | 4936137 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 2 | |
| 3 | 16607524 | HEXAGON BOLT HEXAGON BOLT | 20 | |
| 4 | 8018097 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 5 | 8018108 | AIR PIPE/DUCT AIR PIPE/DUCT | 4 | |
| 6 | 17766091 | CLIP CLIP | 12 | |
| 7 | 17090174 | SPRING WASHER SPRING WASHER | 20 | |
| 8 | 8018099 | SUPPORT SUPPORT | 1 | |
| 9 | 8018100 | SPACING BAR SPACING BAR | 16 | |
| 10 | 8113938 | FILTER HOSE FILTER HOSE | 4 | |
| 11 | 8018139 | RETAINER RETAINER | 2 | |
| 12 | 8018140 | RETAINER RETAINER | 2 | |
| 13 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 14 | 17089474 | SPRING WASHER SPRING WASHER | 8 | |
| 15 | 8027294 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 2 |
