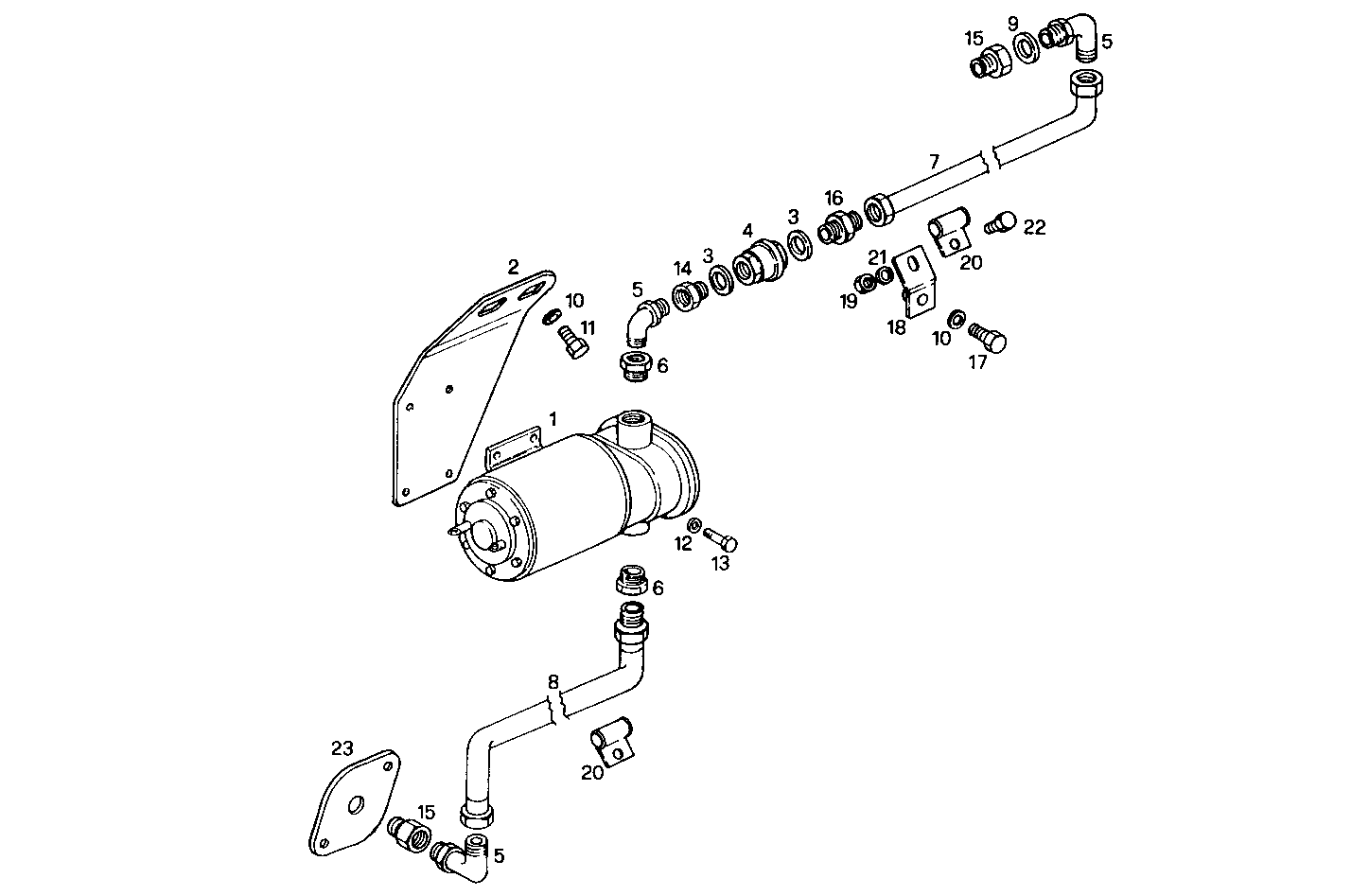

ENGINE PRE-LUBRICATING PUMP
8291SRi15.00 — 8291SRi15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8011001 | OIL DRAIN ELECTRIC PUMP OIL DRAIN ELECTRIC PUMP | 1 | |
| 2 | 8022059 | SUPPORT SUPPORT | 1 | |
| 3 | 11271460 | GASKET GASKET | 2 | |
| 4 | 8011241 | VALVE VALVE | 1 | |
| 5 | 16512111 | PIPE SOCKET PIPE SOCKET | 3 | |
| 6 | 8011422 | PIPE SOCKET PIPE SOCKET | 2 | |
| 7 | 8022058 | OIL LINE OIL LINE | 1 | |
| 8 | 8021775 | OIL LINE OIL LINE | 1 | |
| 9 | 11271460 | GASKET GASKET | 1 | |
| 10 | 17091074 | WASHER WASHER | 3 | |
| 11 | 15540321 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 17088474 | WASHER WASHER | 4 | |
| 13 | 16603524 | SCREW SCREW | 4 | |
| 14 | 8011304 | PIPE SOCKET PIPE SOCKET | 1 | |
| 15 | 8011519 | PIPE SOCKET PIPE SOCKET | 2 | |
| 16 | 8018215 | PIPE SOCKET PIPE SOCKET | 1 | |
| 17 | 15540521 | SCREW SCREW | 1 | |
| 18 | 8018445 | RETAINER RETAINER | 1 | |
| 19 | 17037821 | HEXAGON NUT HEXAGON NUT | 1 | |
| 20 | 17315190 | FASTENING BRACKET FASTENING BRACKET | 2 | |
| 21 | 17088974 | SPRING WASHER SPRING WASHER | 1 | |
| 22 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 23 | 8014037 | FLANGE FLANGE | 1 |
