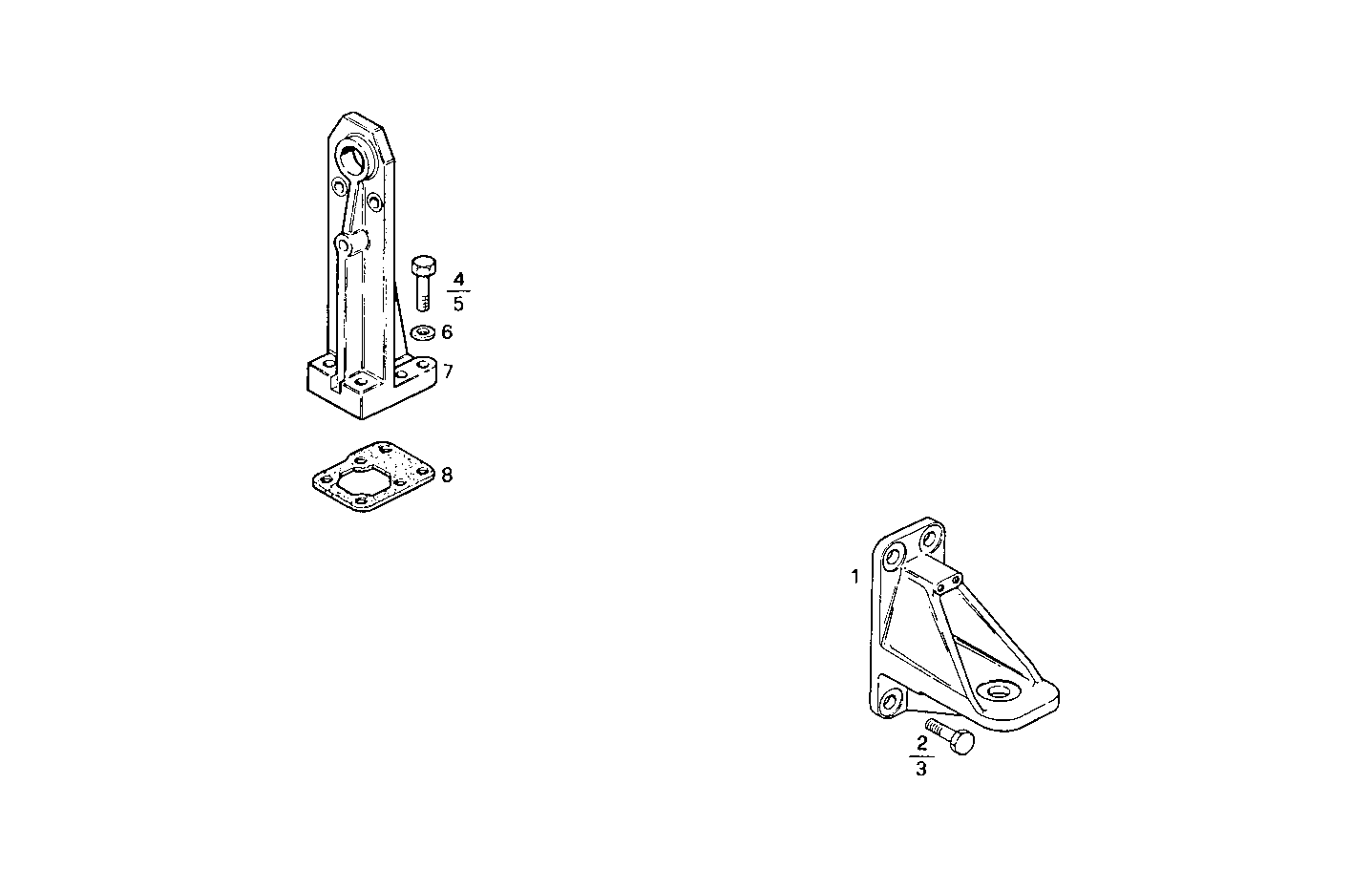

ENGINE SUSPENSION
8291SRi15.00 — 8291SRi15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8009515 | ENGINE SUSPENSION ENGINE SUSPENSION | 4 | |
| 2 | 17462034 | LOCKING SCREW LOCKING SCREW | 14 | |
| 3 | 17462530 | SCREW SCREW | 2 | |
| 4 | 11307021 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 5 | 11343721 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 6 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 7 | 4830866 | HOOK HOOK | 2 | |
| 8 | 4882600 | GASKET GASKET | 2 |
