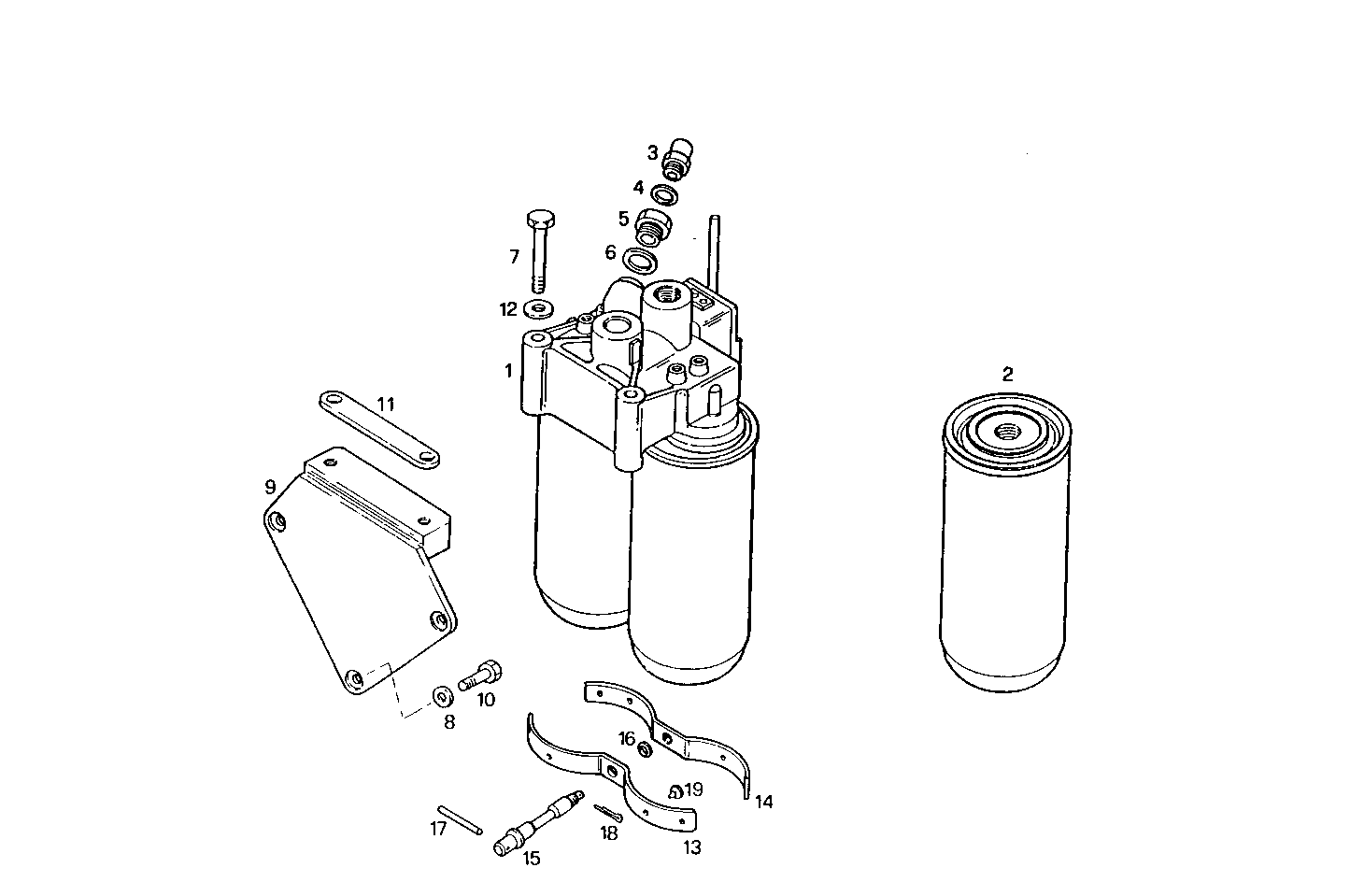

FUEL FILTER
8291SRi15.00 — 8291SRi15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8022363 | FUEL FILTER FUEL FILTER | 1 | |
| 2 | 8106473 | FUEL FILTER CARTRIDGE FUEL FILTER CARTRIDGE | 2 | |
| 3 | 8123686 | VALVE VALVE | 1 | |
| 4 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 5 | 4882217 | PIPE SOCKET PIPE SOCKET | 1 | |
| 6 | 4858610 | WASHER WASHER | 1 | |
| 7 | 16610824 | SCREW SCREW | 2 | |
| 8 | 17090174 | SPRING WASHER SPRING WASHER | 3 | |
| 9 | 8017630 | SUPPORT SUPPORT | 1 | |
| 10 | 16607624 | SCREW SCREW | 3 | |
| 11 | 8017759 | PLATE PLATE | 2 | |
| 12 | 17091074 | WASHER WASHER | 2 | |
| 13 | 8019107 | CLAMP CLAMP | 1 | |
| 14 | 8021139 | CLAMP CLAMP | 1 | |
| 15 | 8021141 | SCREW SCREW | 1 | |
| 16 | 17094904 | WASHER WASHER | 1 | |
| 17 | 17238110 | PIN PIN | 1 | |
| 18 | 16854001 | SPLIT PIN SPLIT PIN | 1 | |
| 19 | 1366290 | RUBBER PAD RUBBER PAD | 8 |
