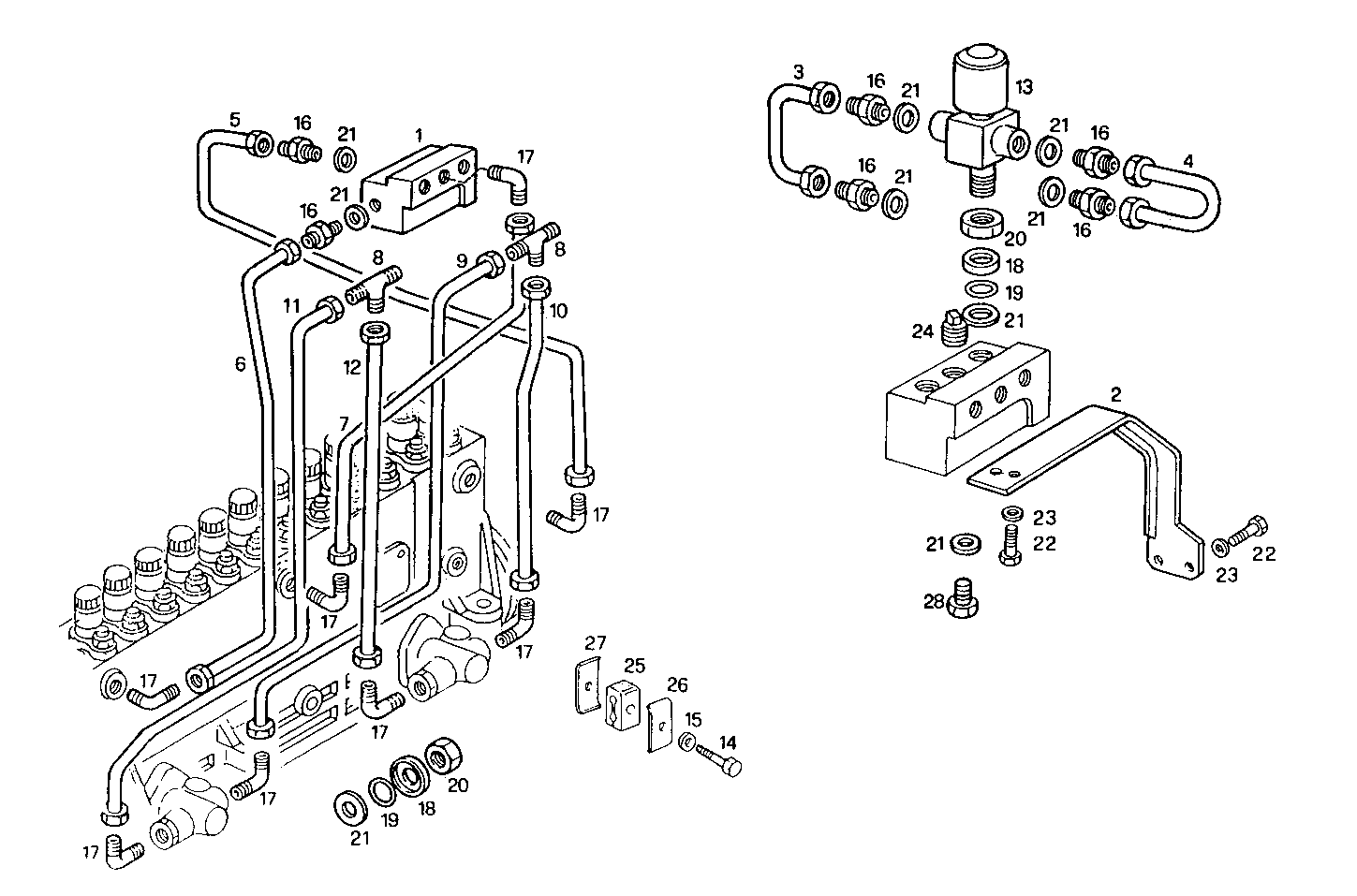

FUEL LINES
8291SRi15.00 — 8291SRi15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8017501 | DISTRIBUTOR DISTRIBUTOR | 1 | |
| 2 | 8018678 | RETAINER RETAINER | 1 | |
| 3 | 8017503 | FUEL LINE FUEL LINE | 2 | |
| 4 | 8017504 | FUEL LINE FUEL LINE | 2 | |
| 5 | 8018693 | FUEL LINE FUEL LINE | 1 | |
| 6 | 8018694 | FUEL LINE FUEL LINE | 1 | |
| 7 | 8018695 | FUEL LINE FUEL LINE | 1 | |
| 8 | 8011303 | PIPE SOCKET PIPE SOCKET | 2 | |
| 9 | 8018184 | FUEL LINE FUEL LINE | 1 | |
| 10 | 8018837 | FUEL LINE FUEL LINE | 1 | |
| 11 | 8018870 | FUEL LINE FUEL LINE | 1 | |
| 12 | 8018871 | FUEL LINE FUEL LINE | 1 | |
| 13 | 8017500 | ELECTROVALVE ELECTROVALVE | 2 | |
| 14 | 16603824 | SCREW SCREW | 3 | |
| 15 | 17088974 | SPRING WASHER SPRING WASHER | 3 | |
| 16 | 16500214 | THREADED UNION THREADED UNION | 10 | |
| 17 | 8025927 | ELBOW COUPLING ELBOW COUPLING | 8 | |
| 18 | 8006339 | CAP CAP | 10 | |
| 19 | 17281581 | O-RING O-RING | 10 | |
| 20 | 16508711 | NUT NUT | 10 | |
| 21 | 4858608 | SEAL GASKET SEAL GASKET | 20 | |
| 22 | 16603724 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 23 | 17088474 | WASHER WASHER | 4 | |
| 24 | 16996011 | PLUG PLUG | 1 | |
| 25 | 4871771 | RUBBER PAD RUBBER PAD | 3 | |
| 26 | 4644288 | CLIP CLIP | 3 | |
| 27 | 4644289 | CLIP CLIP | 3 | |
| 28 | 16992311 | LOCK PLUG LOCK PLUG | 1 |
