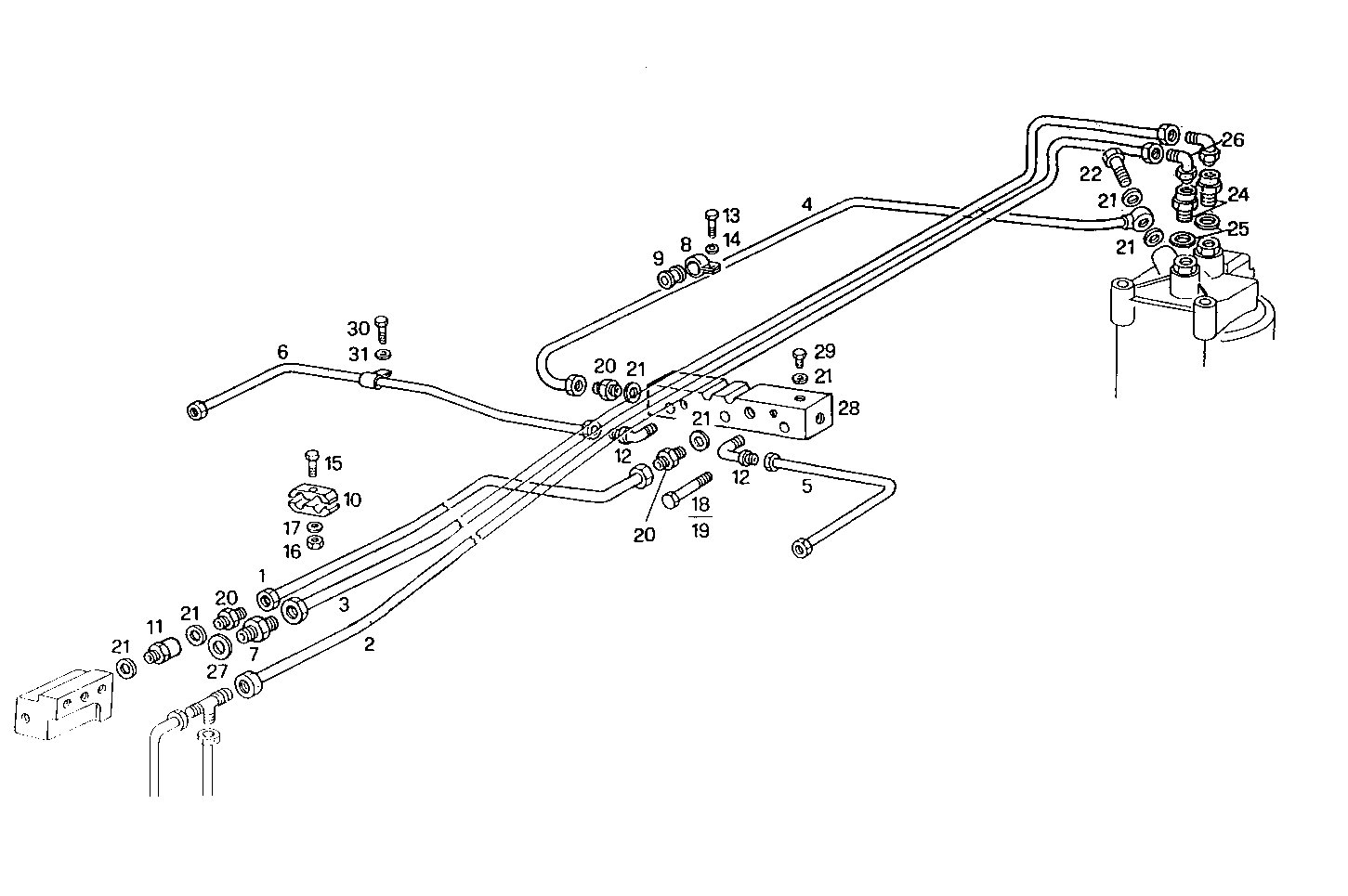

FUEL LINES
8291SRi15.00 — 8291SRi15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8021412 | FUEL LINE FUEL LINE | 1 | |
| 2 | 8018185 | FUEL LINE FUEL LINE | 1 | |
| 3 | 8018186 | FUEL LINE FUEL LINE | 1 | |
| 4 | 8018190 | FUEL LINE FUEL LINE | 1 | |
| 5 | 8018189 | FUEL LINE FUEL LINE | 1 | |
| 6 | 8018188 | FUEL LINE FUEL LINE | 1 | |
| 7 | 8012712 | PIPE SOCKET PIPE SOCKET | 1 | |
| 8 | 4755963 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 9 | 4755964 | RUBBER PAD RUBBER PAD | 1 | |
| 10 | 8010505 | CLAMP CLAMP | 3 | |
| 11 | 8102465 | VALVE VALVE | 1 | |
| 12 | 8007029 | PIPE SOCKET PIPE SOCKET | 2 | |
| 13 | 16607524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 14 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 15 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 16 | 17037921 | NUT NUT | 1 | |
| 17 | 17094904 | WASHER WASHER | 3 | |
| 18 | 16691224 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 1 | |
| 19 | 16691324 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 2 | |
| 20 | 16500214 | THREADED UNION THREADED UNION | 3 | |
| 21 | 4858608 | SEAL GASKET SEAL GASKET | 6 | |
| 22 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 23 | 98474308 | SEAL GASKET SEAL GASKET | 2 | |
| 24 | 8010452 | PIPE SOCKET PIPE SOCKET | 2 | |
| 25 | 10303460 | SEAL GASKET SEAL GASKET | 2 | |
| 26 | 16512111 | PIPE SOCKET PIPE SOCKET | 2 | |
| 27 | 16508460 | WASHER WASHER | 1 | |
| 28 | 8018178 | DISTRIBUTOR DISTRIBUTOR | 1 | |
| 29 | 16992311 | LOCK PLUG LOCK PLUG | 1 | |
| 30 | 16603824 | SCREW SCREW | 1 | |
| 31 | 17088974 | SPRING WASHER SPRING WASHER | 1 |
