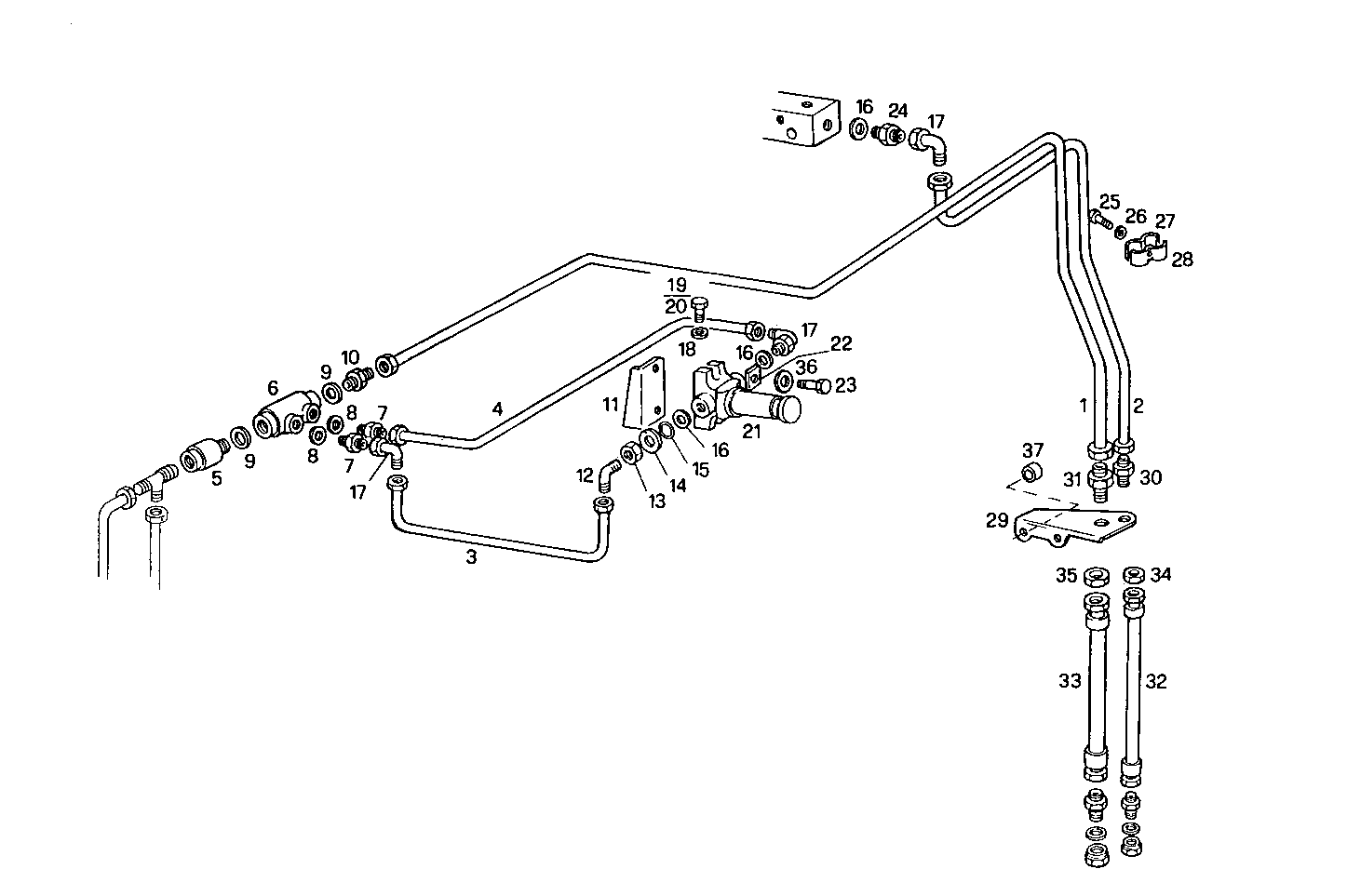

FUEL LINES

8291SRi15.00 — 8291SRi15

Parts List

#	Part No	Name / Description	Qty
1	8018181	FUEL LINE FUEL LINE	1
2	8018191	FUEL LINE FUEL LINE	1
3	8018183	FUEL LINE FUEL LINE	1
4	8018182	FUEL LINE FUEL LINE	1
5	8011304	PIPE SOCKET PIPE SOCKET	1
6	8018220	VALVE VALVE	1
7	8018203	PIPE SOCKET PIPE SOCKET	2
8	11270260	SEAL GASKET SEAL GASKET	2
9	11271460	GASKET GASKET	2
10	8018215	PIPE SOCKET PIPE SOCKET	1
11	8011455	RETAINER RETAINER	1
12	8025297	PIPE SOCKET PIPE SOCKET	1
13	16508711	NUT NUT	1
14	8006339	CAP CAP	1
15	17281581	O-RING O-RING	1
16	4858608	SEAL GASKET SEAL GASKET	3
17	16504011	PIPE SOCKET PIPE SOCKET	2
18	17090174	SPRING WASHER SPRING WASHER	2
19	16607724	HEXAGON BOLT HEXAGON BOLT	1
20	16607624	SCREW SCREW	1
21	4797319	HAND PUMP HAND PUMP	1
22	7300648	LOCKING PLATE LOCKING PLATE	2
23	16603824	SCREW SCREW	2
24	16500214	THREADED UNION THREADED UNION	1
25	16603724	HEXAGON BOLT HEXAGON BOLT	2
26	17088474	WASHER WASHER	2
27	4755435	RETAINER RETAINER	2
28	4755436	RETAINER RETAINER	2
29	8018192	RETAINER RETAINER	1
30	8011138	PIPE SOCKET PIPE SOCKET	1
31	8010502	PIPE SOCKET PIPE SOCKET	1
32	8011326	FUEL LINE FUEL LINE	1
33	8011325	FUEL LINE FUEL LINE	1
34	16508911	NUT NUT	1
35	16509011	NUT NUT	1
36	16665404	WASHER WASHER	2
37	8031212	SPACING BAR SPACING BAR	2
